TP-Link Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module (SM5110LSB-10)

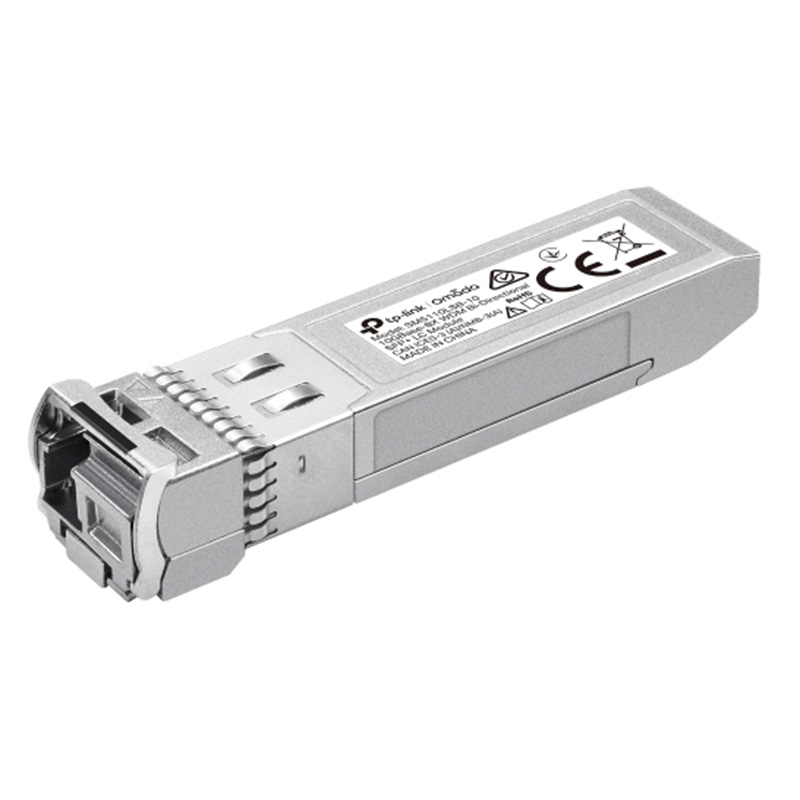

Image 1
Hurry! 3 items left!
$63.80

Collect 63 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

TP-Link Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.

  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

  • Single mode SFP+ LC Transceiver

  • Hot-Pluggable with maximum flexibility

  • Supports Digital Diagnostic Monitoring (DDM)

  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)

  • Compatible with switches with 10G ports like SG3428X and SG3452X




SPECIFICATIONS:

PACKAGE CONTENTS


Package Contents

• SM5110LSB-10

• Installation Guide

HARDWARE FEATURES


DDM

Yes

Hot Swappable

Yes

Dimensions ( W x D x H )

2.24*0.55*0.47 in (57*14*12.0 mm)

TRANSCEIVER


Standards and Protocols

• IEEE 802.3ae

• SFF 8431, SFF 8432, SFF-8472

Wavelength

•TX: 1270nm

•RX: 1330nm

Power Supply

3.3V

Fiber Type

9μm/125μm Single-Mode

Max. Cable Length

10km

Data Rate

10.3125 Gbps

Connector

LC/UPC

Regulatory Compliance

CE, FCC, RoHS

Environment

• Operating Temperature: 0C to 70C (32–158 )

• Storage Temperature: -40C to 85C (-40F to 185F)

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

OTHERS


Notes

Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
