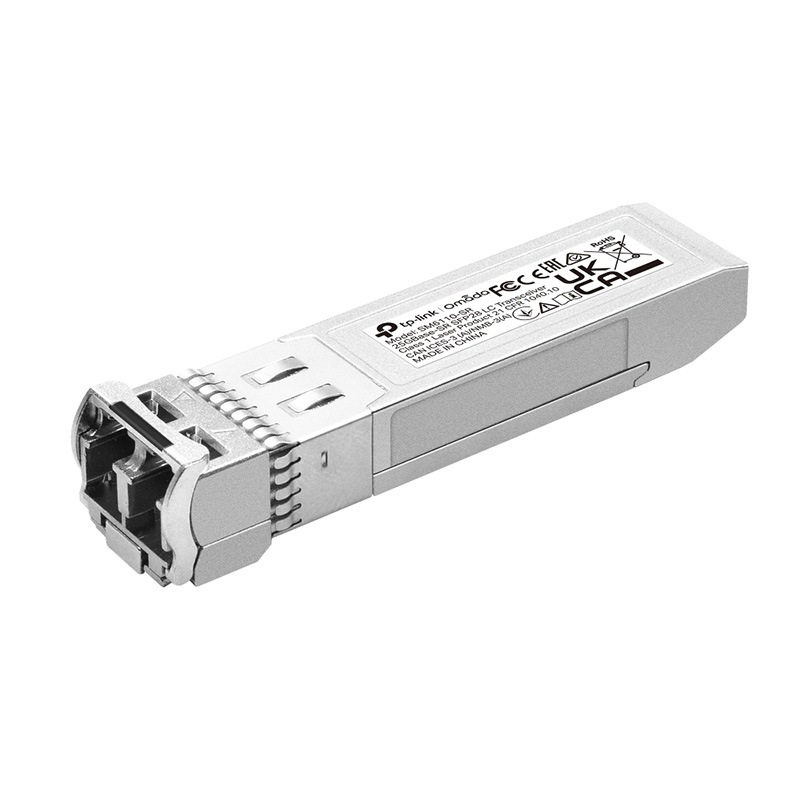

TP-Link Omada 25GBase-SR SFP28 LC Transceiver (SM6110-SR)

Image 1
Hurry! 5 items left!
$57.10

Collect 57 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

TP-Link Omada 25GBase-SR SFP28 LC Transceiver
The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.

  • Multi-mode SFP+/SFP28 LC Transceiver

  • Hot-Pluggable with maximum flexibility

  • Supports Digital Diagnostic Monitoring (DDM)

  • Low Power Consumption no more than 1 W

  • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)

  • Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.




SPECIFICATIONS:

HARDWARE FEATURES

DDM

Yes

SFP-MSA

Yes

Hot Swappable

Yes

Dimensions ( W x D x H )

2.24*0.55*0.53 in (57*14*13.45 mm)

TRANSCEIVER

Standards and Protocols

IEEE 802.3ae, 802.3by
SFF-8402, SFF-8431, SFF-8432, SFF-8472
eCPRI, CPRI
TCP/IP

Wavelength

850nm

Power Supply

3.3V

Fiber Type

50/125um or 62.5/125um Multi-mode

Max. Cable Length

70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps

Support Data Rate

Dual Rate 25.78 Gbps and 10.31 Gbps

Connector

Duplex LC/UPC

Regulatory Compliance

CE, FCC, RoHS

Environment

Operating Temperature: 0C to 70C (32–158   )
Storage Temperature: -40C to 85C (-40F to 185F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing

PACKAGE CONTENTS

Package Contents

SM6110-SR

Installation Guide




SKU: 78047
