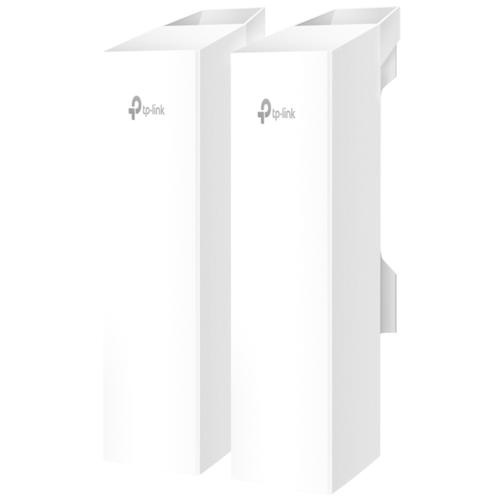

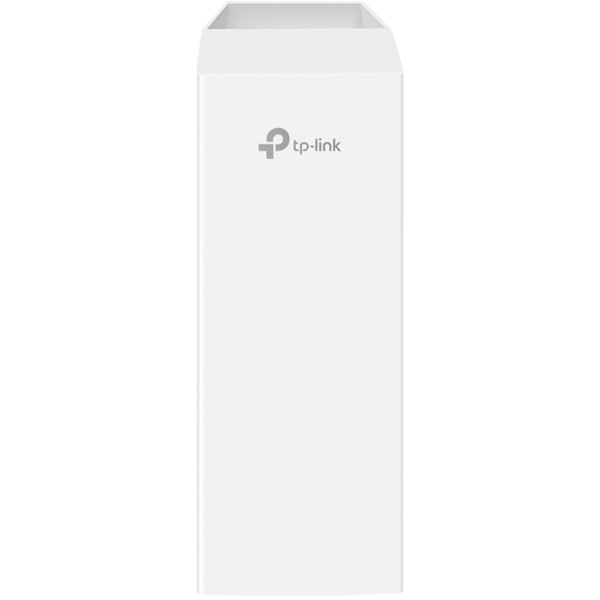

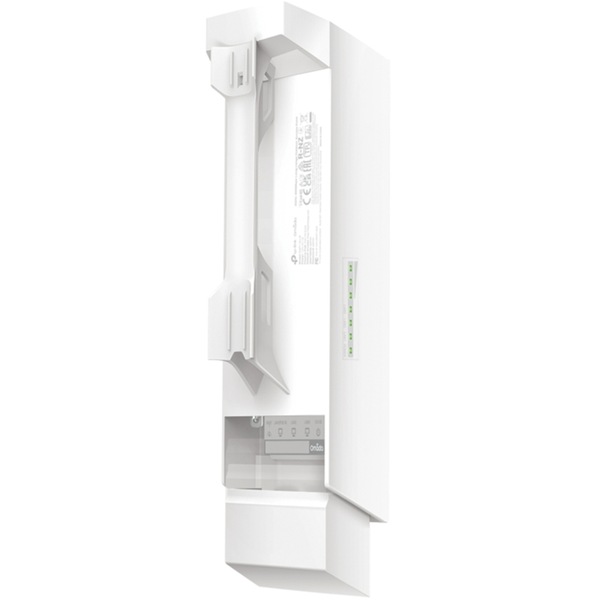

TP-Link Omada EAP215-Bridge KIT (AC867) 5GHz Wireless Bridge, Up to 5KM, Beamwidth 35 Degree [EAP215-Bridge KIT]

Image 1
Image 2
Image 3
Image 4
Limited Stock
$241.86

Collect 241 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
TP-Link Omada EAP215-Bridge KIT (AC867) 5GHz Wireless Bridge, Up to 5KM, Beamwidth 35 Degree




EAP215-Bridge KIT
Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
- Ideal for long-range wireless transmission up to 5 km.*2
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
- Supports Passive PoE for flexible deployment (adapter included).


5-km Long-Distance Wi-Fi Transmission


Easy and Simple Deployment


Point-to-Point Connection, Perfect for Surveillance


Seamless Integration into Omada SDN


1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
4.These functions require the use of an Omada SDN controller.

HARDWARE FEATURES

Interface

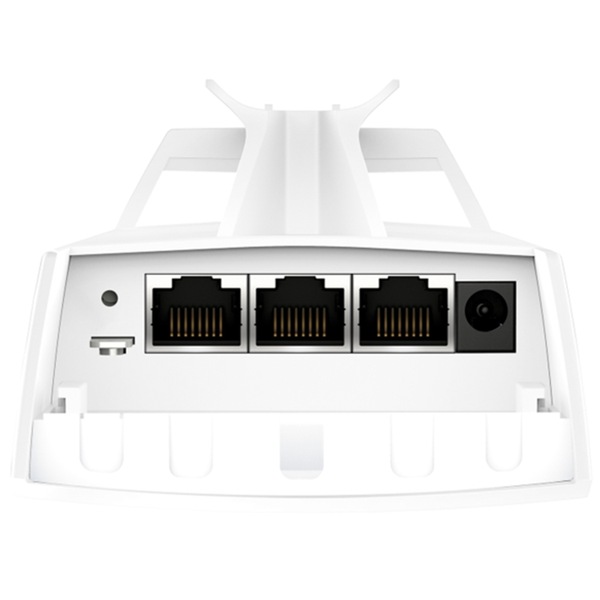

3x Gigabit Ethernet Ports

Button
Reset

Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)

Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)

Antenna Type
Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi

Mounting
Pole mounting (Accessories included)

WIRELESS FEATURES

Wireless Standards
IEEE 802.11 a/b/g/n/ac

Frequency
5 GHz

Signal Rate
5 GHz: Up to 867 Mbps

Wireless Functions
Mesh*4
MU-MIMO: 5G 2x2 MU-MIMO DL
Load Balance
Beamforming
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP

Wireless Security
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication*4
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power
CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT

Omada App
Yes

Restore & Backup
Yes

Firmware update via Web
Yes

NTP
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller

Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

SSH
Yes

Web-based Management
Yes

OTHERS

Certification
CE, FCC, RoHS

Package Contents
EAP215-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit

Environment
Operating Temperature: -40 °C-70 °C (-40 °F-158 °F);
Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
Operating Humidity: 10%-90% non-condensing;
Storage Humidity: 5%-90% non-condensing
- MPN: EAP215-Bridge KIT

GTIN: 4895252502565
