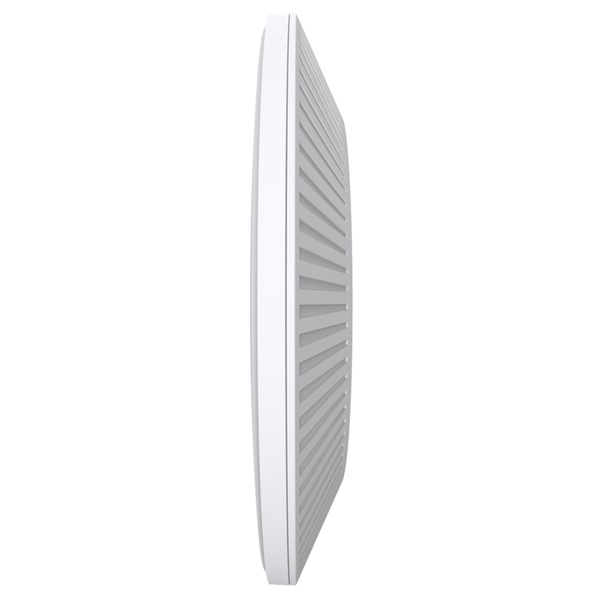

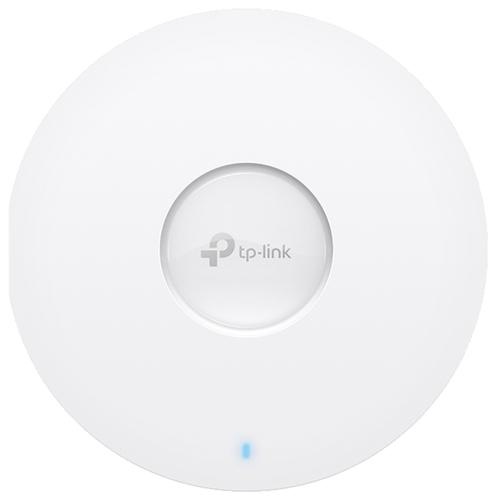

TP-Link Omada EAP673 (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W) [EAP673]

Image 1
Image 2
Image 3
Hurry! 2 items left!
$222.58

Collect 222 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
TP-Link Omada EAP673 (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)

AX5400 Ceiling Mount WiFi 6 Access Point
- Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).†
- Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.
- 160 MHz Channel double the data at peak transmission times on a single stream.‡
- Advanced features: Supports seamless roaming§,Omada Mesh§, and more.
- Supports both 802.3at PoE+ and DC (adapter not included)
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity

Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.†

Higher Efficiency for More Devices
Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.‡ Enjoy faster speeds on more devices with less lag.‡

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

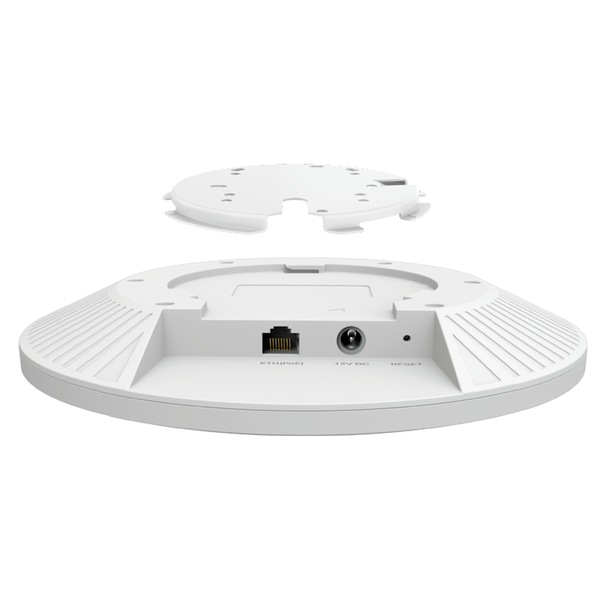

HARDWARE FEATURES
Interface
1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
- 802.3at PoE
- 12 V / 2 A DC (Power adapter not included)
Power Consumption
- EU: 20.8 W
- US: 22.3 W
Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type
Internal Omni
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 4× 5 dBi
Bluetooth
Yes
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage
140?(1500 ft²)***
Wireless Client Capacity
250+**
Concurrent Clients
250+**
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)‡
- Seamless Roaming §
- Omada Mesh§
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication§
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

- FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- EAP673
- Ceiling/Wall Mounting Kits
- Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- Operating Temperature: 0–40 ? (32–104 ?)
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
- MPN: EAP673

GTIN: 4895252506488
