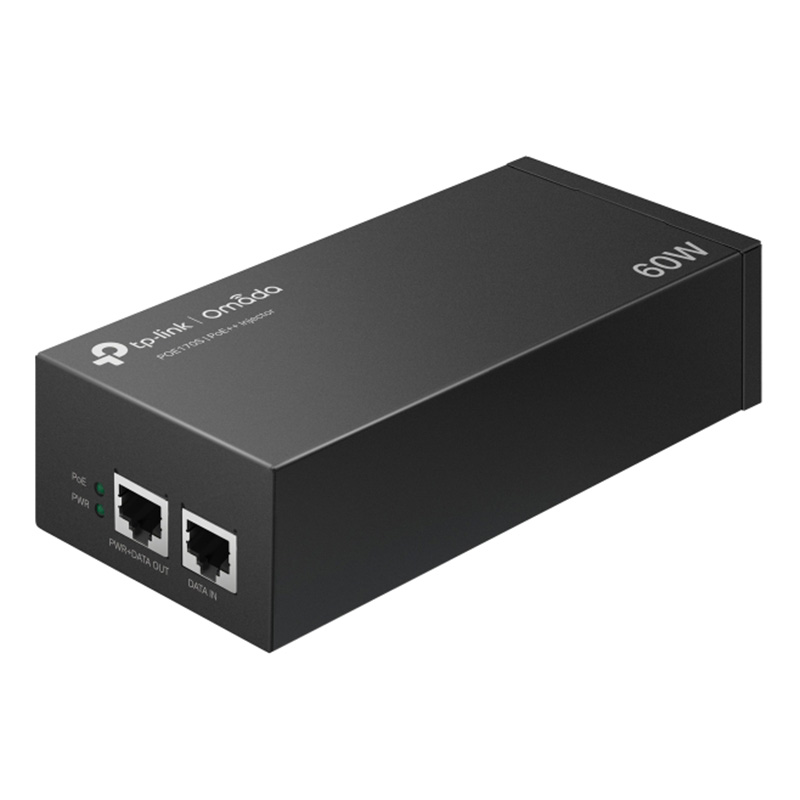

TP-Link Omada PoE++ Injector (POE170S)

Image 1
Hurry! 5 items left!
$71.70

Collect 71 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

NOTE: *POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.

TP-Link Omada PoE++ Injector

The Omada PoE++ Injector POE170S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.



SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*



* POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.

Interface

• 1 10/100/1000Mbps RJ45 data-in port

• 1 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W)

• 1 AC socket

Network Media

• 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m)

• EIA/TIA-568 100Ω STP (maximum 100 m)

• 100BASE-TX: UTP category 5, 5e cables (maximum 100 m)

• EIA/TIA-568 100Ω STP (maximum 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)

Max. Power Consumption

• Input: 100-240 V, 50/60 Hz, 1.6A

• Output: Auto-determine the necessary power requirements (max. 60 W)

Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD

• Auto-determine the necessary power requirements

• Wall-mounting and desktop installation supported

• Plug-and-Play

LED

• Power

• PoE

Dimensions ( W x D x H )

6.12.81.7 in (1557042 mm)

GENERAL


Material

Metal Casing

OTHERS


Certification

FCC, CE, RoHS

Package Content

• Omada PoE++ Injector POE170S

• Installation Guide

• Power Cord

• RJ45 Cable

Environment

• Operating Temperature: 0C to 45C (32F to 113F)

• Storage Temperature: -40C to 70C (-40F to 158F)

• Operating Humidity: 10% to 90%RH non-condensing

• Storage Humidity: 5% to 90%RH non-condensing
