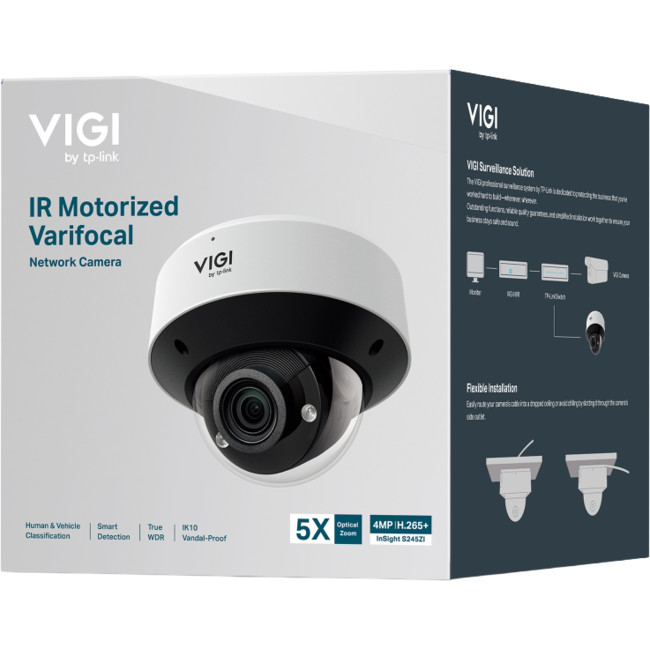

TP-LINK S245ZI 4Mp Outdoor Varifocal Dome Network Camera Vigi Insight

TP-LINK S245ZI 4Mp Outdoor Varifocal Dome Network Camera Vigi Insight

Hurry! 2 items left!

$336

Collect 336 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Overview

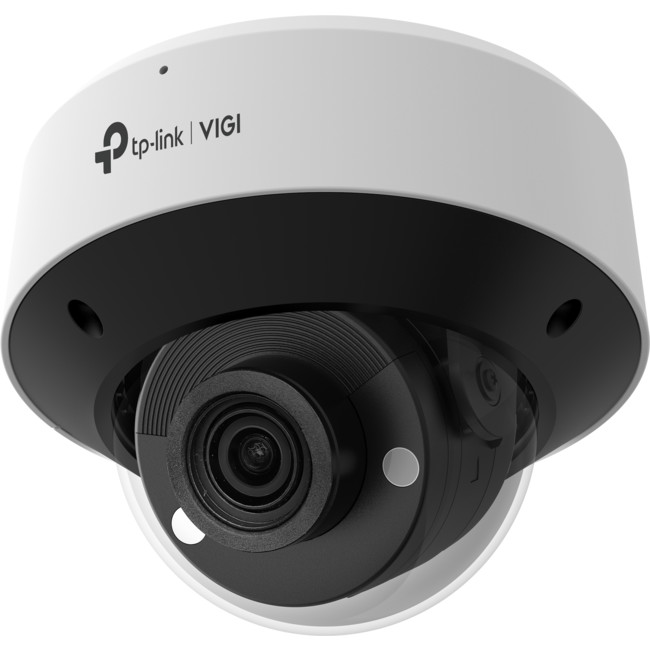

InSight S245ZI VIGI 4MP IR Motorised Varifocal Dome Network Camera

5× Optical Zoom for Easy Installation and Monitoring.
4MP Super-High Definition and IR Range Up to 197ft (60m)*¹.
Human & Vehicle Classification.
Smart Detection.
Smart Video Enhancement Technology.
Audio and Alarm Interface Available.
IP67 Weatherproof and IK10 Vandal Proof.
H.265+ Compression Technology.

1: Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

2: Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

3: SD card is not included in the package

Specifications

CAMERA	Image Sensor	1/2.9″ Progressive Scan CMOS
Shutter Speed	1/3s to 1/10000s
Slow Shutter
Minimum Illumination	0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/Scheduled/Auto
LENS	Type	Motorised Varifocal Lens
Focal Length	2.7mm to 13.5mm (5× Optical Zoom)
Aperture	F1.6
FOV	2.7mm to 13.5mm: Horizontal FOV: 29.6° to 102.0° Vertical FOV: 16.8° to 53.8° Diagonal FOV: 34.1° to 122.8°
Lens Mount	Φ14
DORI Distance	2.7mm to 13.5mm: Detect: 203ft to 656ft (62m to 200m) Observe: 89ft to 276ft (27m to 84m) Recognise: 43ft to 131ft (13m to 40m) Identify: 23ft to 69ft (7m to 21m)
Angle Adjustment Range (Manual)	Pan: 0° to 350° Tilt: 0° to 75° Rotate: 0° to 344°
ILLUMINATOR	IR LED	Quantity: 4 Range: 197ft (60m)*¹ Wavelength: 850nm
Illuminator On/Off Control	Auto/Scheduled/Always On/Always Off
VIDEO	Max. Resolution	2688×1520
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 1024 Kbps
IMAGE	Image Settings	Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Over-Exposure to Infrared Light HLC Adjustable by Client Software
Image Enhancement	BLC 3D DNR HLC SmartIR
Wide Dynamic Range	120 dB
SNR	≥52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting
AUDIO	Audio Communication	Two-Way Audio
Audio Input
Audio Output
Audio Compression
Audio Sampling Rate	8 KHz
Environment Noise Filtering
Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 × Main Streams 3 × Sub-Streams
Client	VIGI App Web UI VIGI VMS VIGI Cloud VMS
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud
Security	Password Protection HTTPS Encryption IP Address Filter Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) Alarm Input Device
Alarm Linkage	Memory Card Video Recording Push Notifications Active Defence-Sound Alarm Email Alarm Upload to FTP Server Alarm Output Device Send to Alarm Server
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 × Alarm In 1 × Alarm Out
Reset Button
Power	DC Power Port
On-Board Storage	Built-In Memory Card Slot, supports microSD Card up to 512 GB*³.
Built-in Microphone	Yes; Records anything going on within a 16.4ft (5m) radius of the camera.
Built-in Speaker	N/A
Audio	1 × Audio In 1 × Audio Out
ENVIRONMENT	Operating Temperature	−30°C to 60 °C
Storage Temperature	−40°C to 60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
GENERAL	Power Supply	12V DC ±5%, 10.8W Max., 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, 12W Max.
Protection	IP67 Weatherproof, IK10 Vandal Proof
Material	Metal
Dimensions (L×W×H)	Φ129.9mm × 102.5mm (Φ5.1″ × 4.0″)
Net Weight	0.775 Kg
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Certifications	CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10
