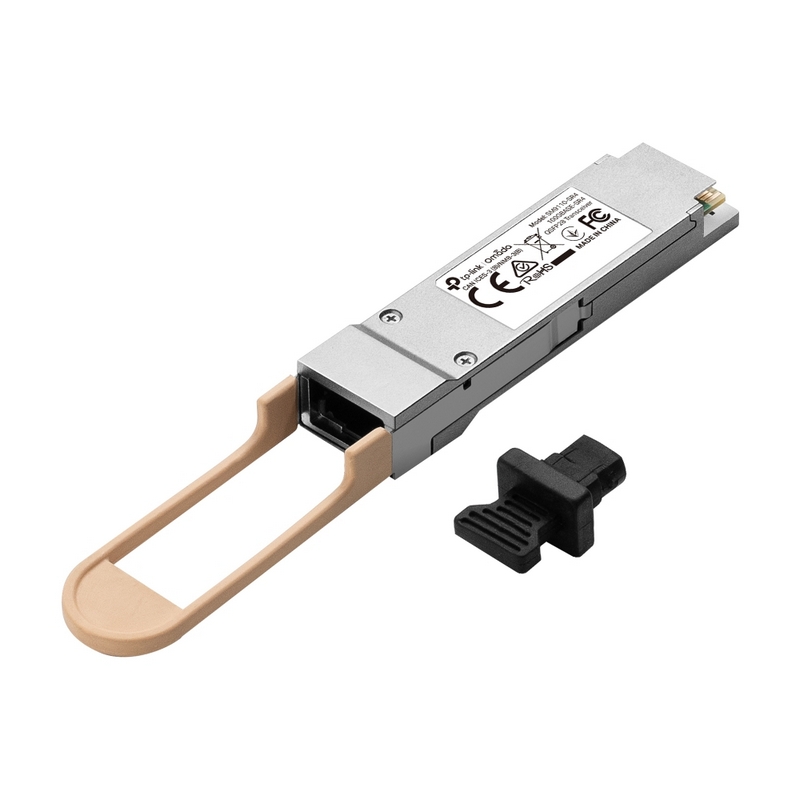

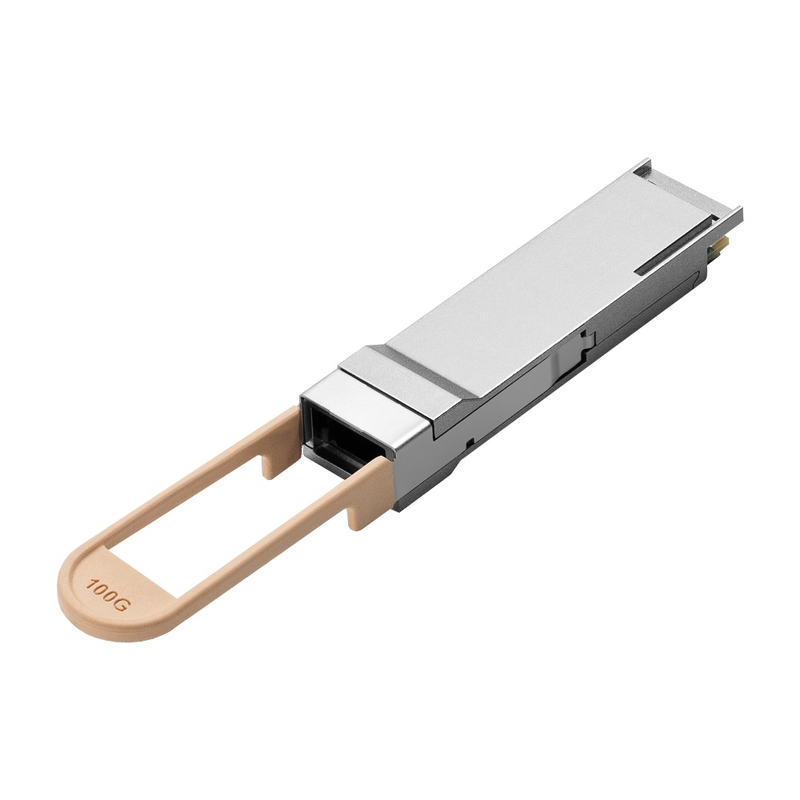

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

TP-Link SM9110-SR4, Omada 100GBASE-SR4 QSFP28 Transceiver

Features:
  • 100GBASE-SR4 multi-mode QSFP28 Transceiver
  • Supports Digital Diagnostic Monitoring (DDM)
  • Up to 100 m transmission distance
  • Hot-Pluggable with maximum flexibility
  • Wide operating temperature
  • Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
Specifications:

Transceiver

  • Form Factor :QSFP28
  • Standards and Protocols :IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
    SFF-8665, SFF-8636, SFF-8436,
    CPRI, eCPRI
    TCP/IP
  • Wave Length :850 nm
  • Power Supply :3.3 V
  • Power Consumption :Max 1.8 W at 100 Gbps
    Max 1.54 W at 40 Gbps
  • Fiber Type :50/125um MMF (Multimode)
  • Max. Cable Length :70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
    100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
  • Data Rate :Dual Rate 103.125 Gbps and 41.2 Gbps
  • Connector :MTP/MPO-12
  • Transmitter Type :VCSEL 850 nm
  • Receiver Type :PIN
  • Transmitter Power :-8.4 dBm to 2.4 dBm @103.125 Gbps
    -7.6 dBm to 2.4 dBm @41.2 Gbps
  • Receiver Sensitivity :<-10.3 dBm @103.125 Gbps
    <-9.5 dBm @41.2 Gbps
  • Receiver Overload :>2.4 dBm @103.125 Gbps
    >2.4 dBm @41.2 Gbps
  • Extinction Ratio :>2 dB @103.125 Gbps
    >3 dB @41.2 Gbps
  • Regulatory Compliance :CE, FCC, RoHS

HARDWARE FEATURES

  • DDM :Yes
  • QSFP28 MSA :Yes
  • Hot Swappable :Yes
  • Dimensions ( W x D x H ) :4.88*0.72*0.46 in (124*18.35*11.7 mm)

PACKAGE CONTENTS

  • Package Contents :SM9110-SR4
    Installation Guide

ENVIRONMENT

  • Operating Temperature :0°C to 70°C (32°F to 158°F)
  • Storage Temperature :-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity :0 to 85% RH Non-condensing
  • Storage Humidity :0 to 85% RH Non-condensing

SKU: SWI-TPL-9110SR4
