TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, IGMP Snooping, Fanless

Image 1
Image 2
Image 3
Hurry! 8 items left!
$973.90

Collect 973 Everyday Rewards points

Log in to MyDeal to link your card
$16.50 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

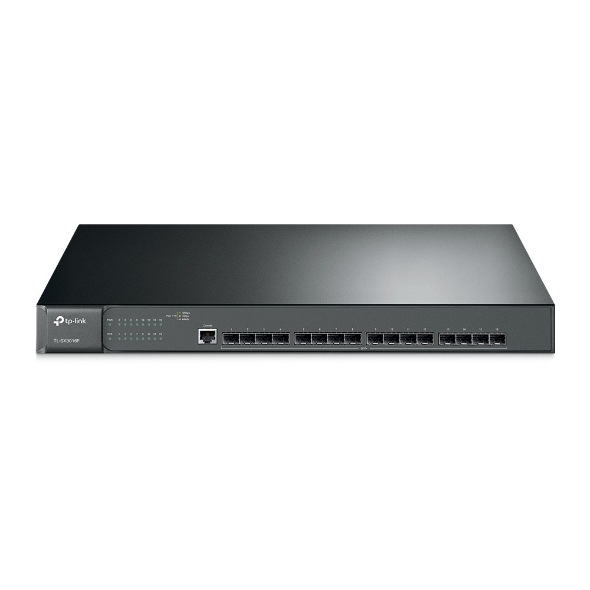

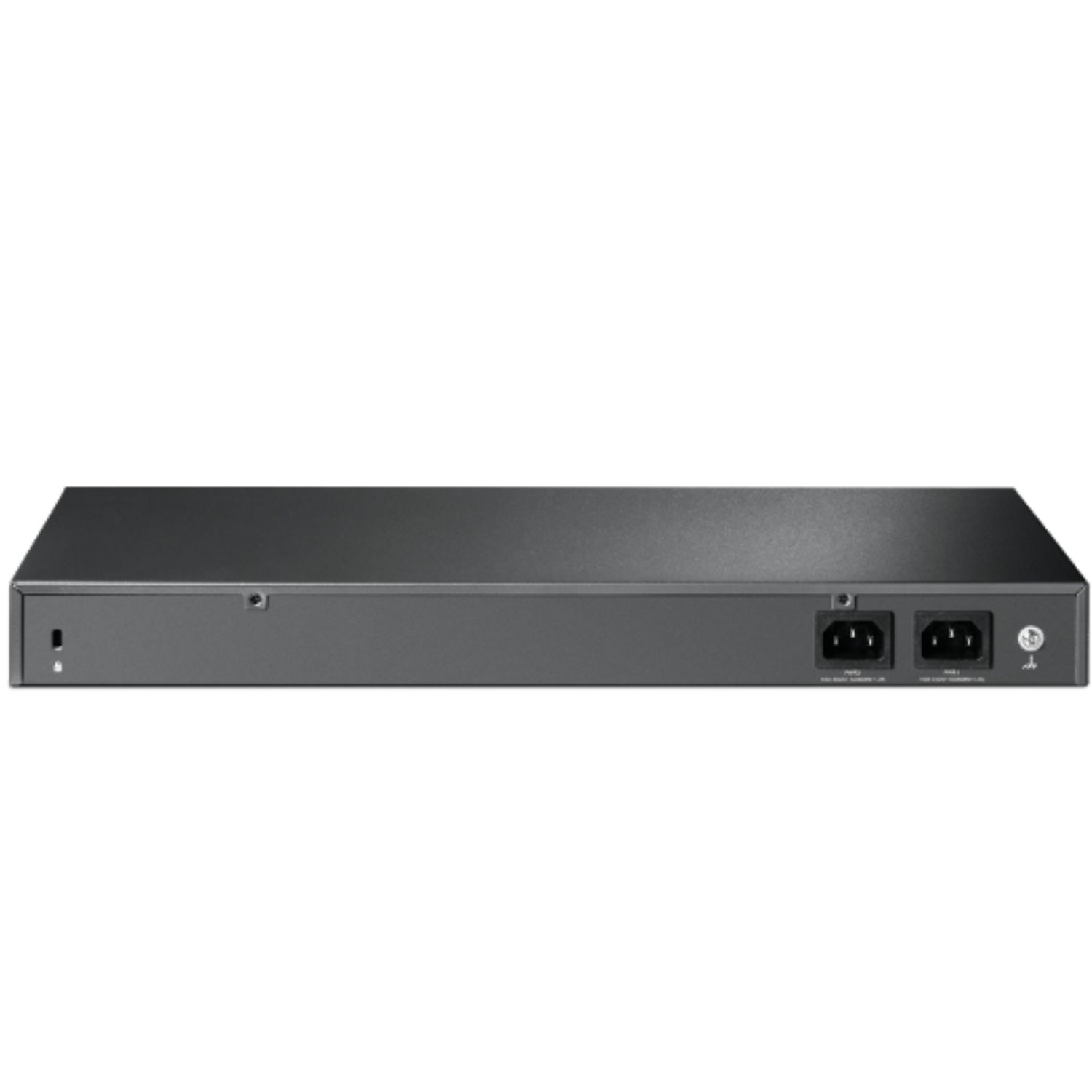

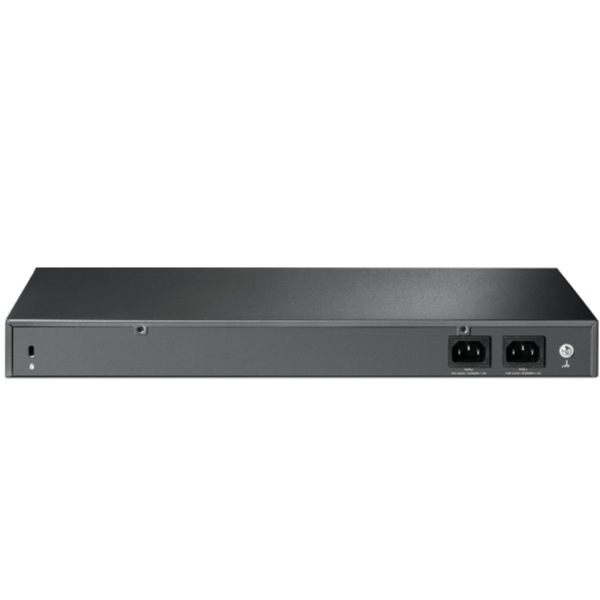

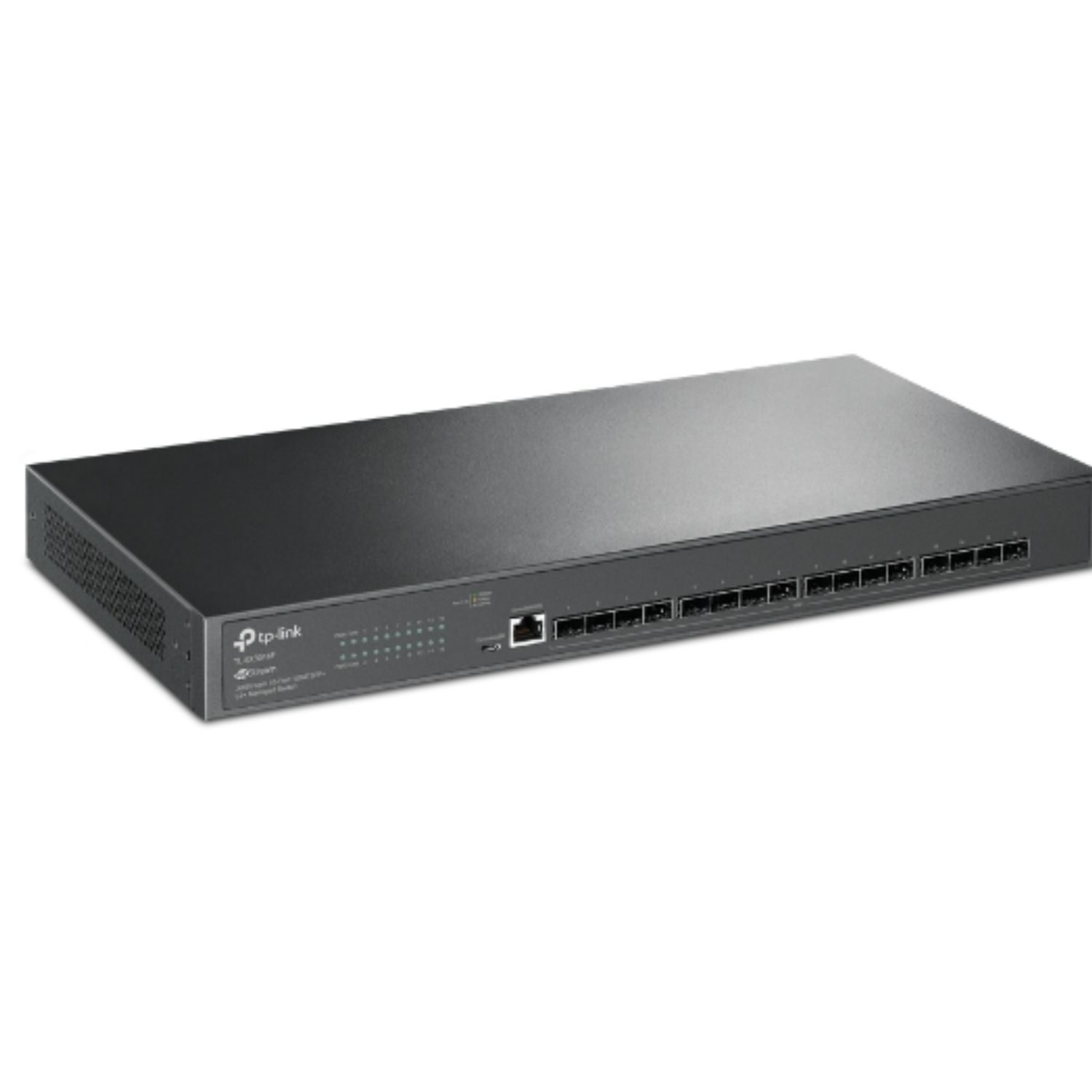

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

  • 16× Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
  • Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
  • Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
  • Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
  • Robust Hardware Design - Its fanless design ensures silent operation, while its durable metal casing and up to 45 ℃ operation temperature ensures reliability

General

Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots

Console 1 RJ45 Console Port, 1 Micro-USB Console Port

Flash 32 MB

DRAM 256 MB

Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)

IEEE 802.3ae: 10 Gigabit Ethernet over fiber

Performance

Switching Capacity 160 Gbps 320 Gbps

Packet Forwarding Rate 119.04 Mpps 238.08 Mpps

MAC Address Table 32K

Packet Buffer 16 Mbit 24 Mbit

Transmission Method Store and Forward

Number of IP Interfaces 16

Number of Static

Routers 48 (IPv4, IPv6)

Jumbo Frame 9 KB

Physical & Environment

Dual Redundant

Power Supply - 2 Fixed AC Power Supply

Power Supply 100-240 V AC~50/60 Hz

Max Power

Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz)

Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz)

Standby Power

Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)

Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Fan Quantity Fanless 1

Installation Rack Mountable

GTIN: 6935364006433
