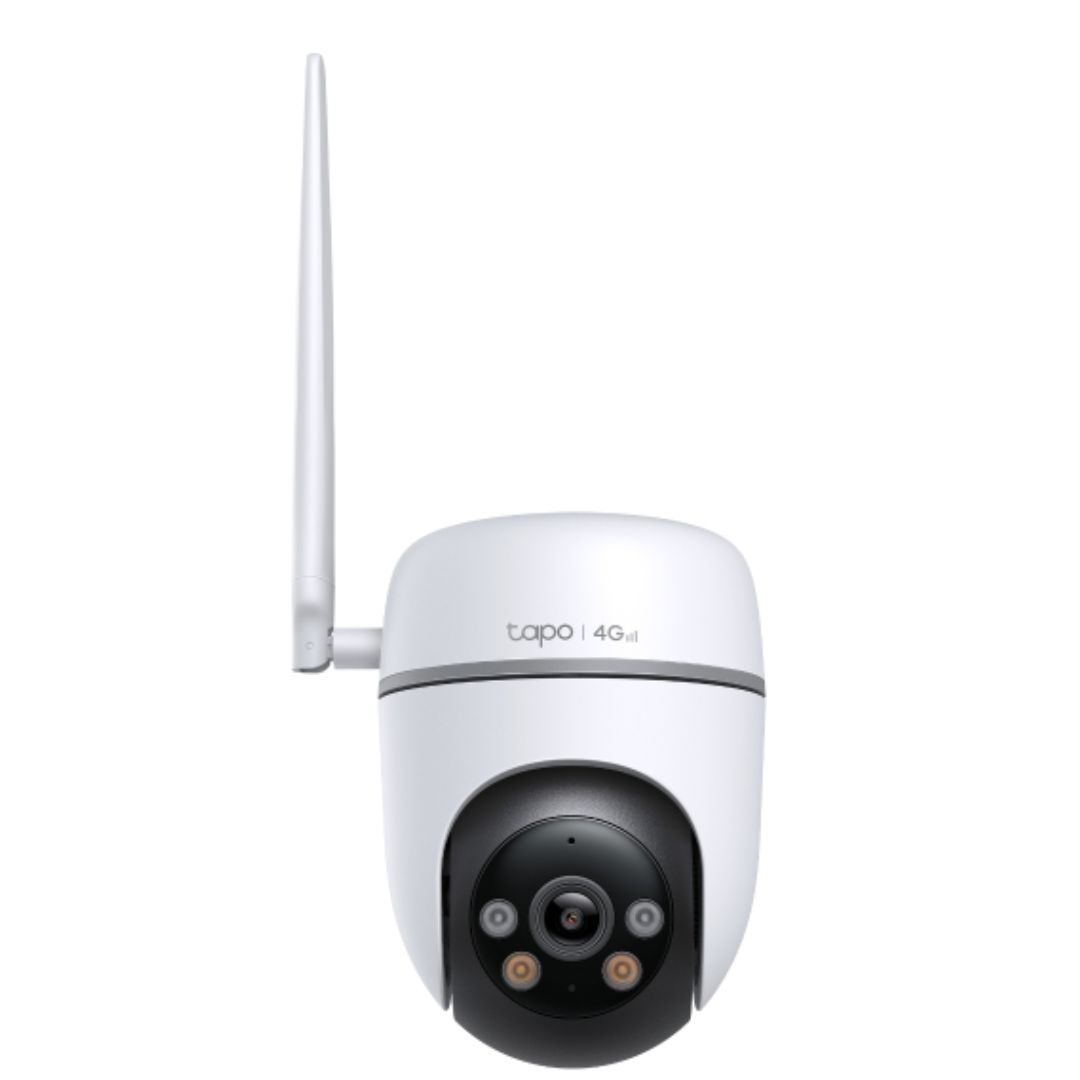

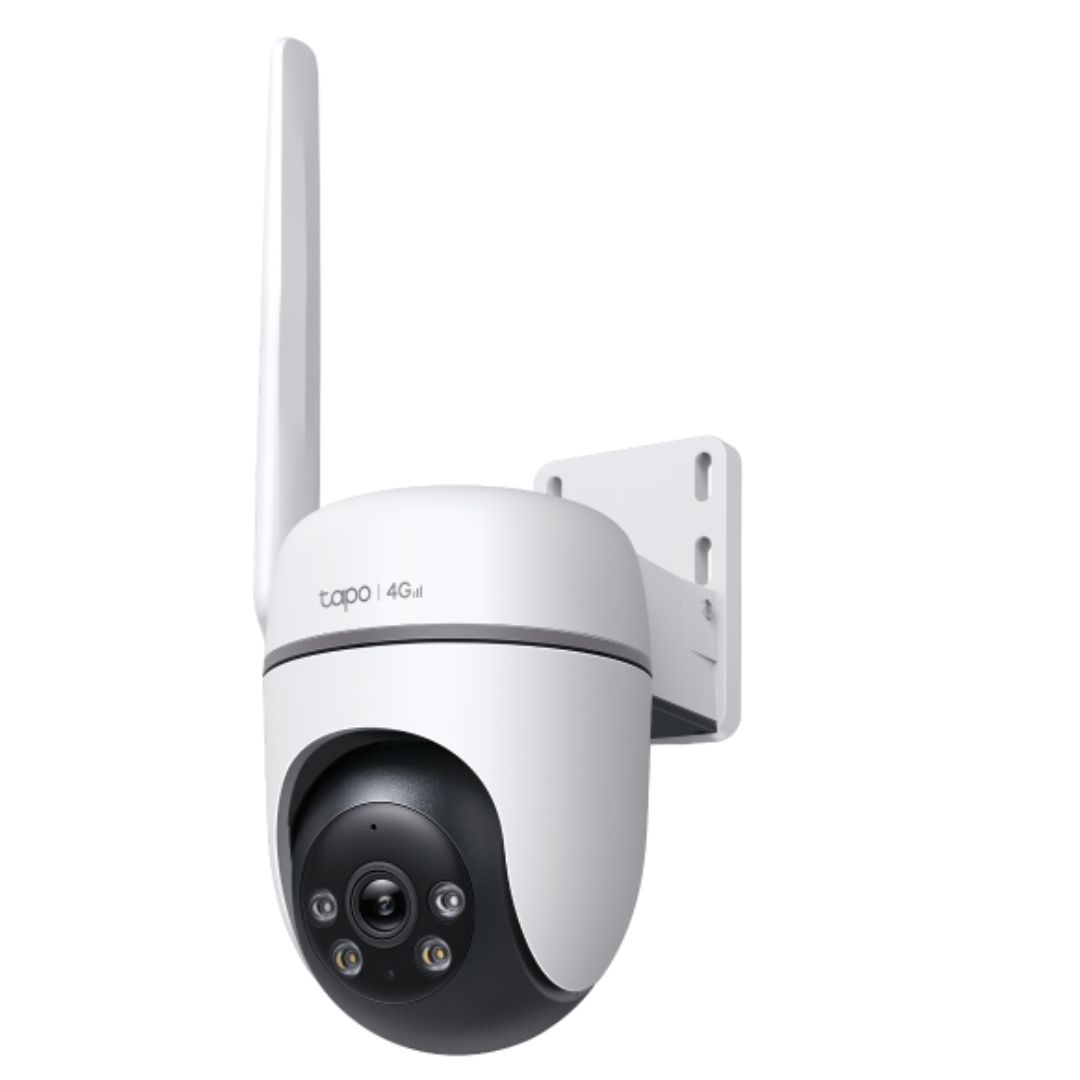

TP-Link TC40GW Outdoor Pan/Tilt 4G LTE Camera

KEY FEATURES

• No Wi-Fi, No Limit:  Connects through 4G LTE networks, ideal for places where constant Wi-Fi is not available.
• 360° All-Round Protection:  Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
• Free AI Detection:  Smart AI identifies people, pets, and vehicles, sending instant notifications through the Tapo app.
• 1080P Full HD:  Reveals sharp images and vivid details with 1920 × 1080 pixels.
• Starlight Colour Night Vision:  Captures vibrant images in low light up to 20 meters away.
• IP66 Weatherproof:  Works well in rain, dust, and heat, offering excellent waterproof and dustproof performance for outdoor scenarios.
• Sound and Light Alarm:  Craft your own audio alarm to deter unwelcome intruders and tailor the intensity of the dual spotlights.
• Local and Cloud Storage:  Save all your important moments to a microSD card (up to 512GB) or subscribe to Tapo Care for cloud service.
• Dual Mode Flexibility with 4G or PoE:  Power your camera with a DC adapter or Ethernet cable featuring PoE technology.
• WARRANTY PERIOD:  2-Year

SPECIFICATIONS:

CAMERA

• Image Sensor:  1/2.9” CMOS Sensor
• Lens:  Focal Length: 3.17 mm; Aperture: F1.65
• Field of View:  122° (Diagonal), 105° (Horizontal), 59° (Vertical)
• Motion Range:  Pan Mechanical Range: 340° (360° Pan Coverage), Tilt Mechanical Range: 60° (130° Tilt Coverage)
• Night Vision:  850 nm IR LED (98 ft / 29.9 m), starlight color night vision
• Interface & Button:  1× DC Port, 1× Ethernet Port (PoE), 1× RESET Button, 1× MicroSD Card Slot (Up to 512GB), 1× Nano-SIM Card Slot

VIDEO & AUDIO

• Maximum Resolution:  1920 × 1080 px
• Frame Rate:  15/20/25/30 fps
• Video Compression:  H.264
• Live View:  Yes
• Audio Input & Output:  Built-in Microphone and Speaker
• Audio Communication:  Two-Way Audio with Noise Cancellation
• Siren Volume:  99 dB (Level measured at 4-inch/10-cm distance)

STORAGE

• Local Storage:  MicroSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage:  Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

• AI Detection:  Motion, Person, Pet, Vehicle, Tamper, Line-Crossing, Meow, Bark, Glass-Breaking Detection
• Activity Zones:  Yes
• Output Notification:  System Notification, System Notification with Snapshot (Tapo Care Services)

NETWORK

• Network Connectivity:  3G/4G LTE/LAN Cable
• RTSP:  Yes
• ONVIF:  YES (Only Available in Ethernet Mode)

4G

• Frequency:  LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41

POWER

• Power Source:  12V DC Power Adapter, PoE: 802.3 af/at
• Input Voltage:  100-240 V, 50/60 Hz
• Output Voltage:  DC Power: 12V, 1A

GENERAL

• Smart Integration:  Google Assistant, Amazon Alexa
• Weather Resistance:  IP66
• System Requirements:  Tapo App: iOS 9.0 or higher, Android 4.4 or higher
• Mounting Options:  Ceiling-Mounted, Wall-Mounted, Pole-Mounted (Pole-Mounting loops required but not included)
• Operating Temperature:  -30℃~60℃
• Storage Temperature:  -40℃~60℃
• Operating Humidity:  10%~90% RH, Non-condensing
• Storage Humidity:  0~90% RH, Non-condensing
• Dimensions (W × D × H):
  • Camera: 5.15× 3.31×4.57 in (130.8 × 84.0 × 116.1 mm)
  • With Antennas and Bracket: 5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)

PACKAGE CONTENT

• TC40GW Camera
• Detachable Antenna
• DC Power Adapter
• Mounting Template
• Mounting Bracket
• Mounting Anchors
• Bracket Screws
• Mounting Screws
• Waterproof Seal
• Waterproof Cable Attachments
• Quick Start Guide

CERTIFICATIONS:  CE, NTRA, RCM, VCCI, NCC, BSMI, ROHS
