TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE - IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX FC111PB-20
,gravity=Center,allowExpansion)
Collect 52 Everyday Rewards points
Collect 52 Everyday Rewards points
NWTL-FC111PB-20

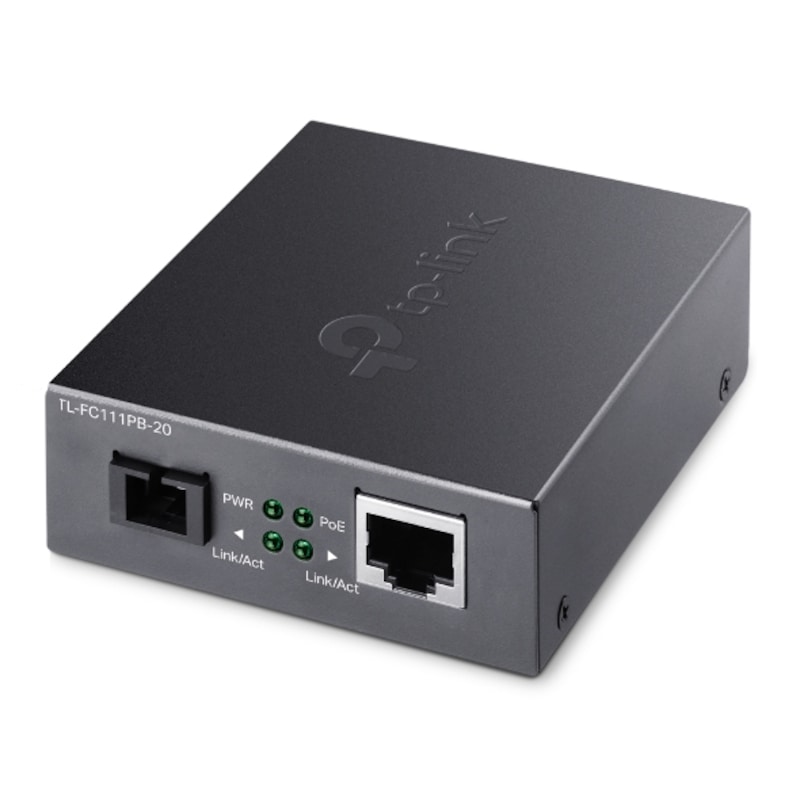

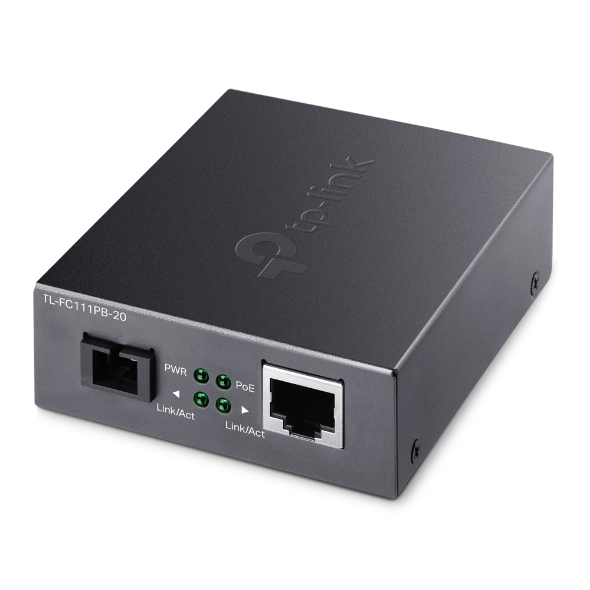

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE
Converts the data between fiber (optical signal) and copper (electric signal).
Extends fiber distance up to 20 km.
The 802.3af PoE output makes remote camera deployment easier and more convenient.
WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
Wide operating temperature (0 50 ) with reliability.
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0 50 C (32 122 F)
Storage Temperature -40 70 C (-40 158 F)
Operating Humidity 10 90% RH non-condensing
Storage Humidity 5 90% RH non-condensing
HARDWARE FEATURES
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above ( 100 m)
Power Supply 48 V/0.5 A
LED PWR, Link/Act, PoE
Dimensions ( W x D x H ) (94.5 73.0 27.0 mm)
Wave Length 1310 nm TX, 1550 nm RX
ANTENNA
Connector Type 1 10/100 Mbps PoE RJ45 port
1 100 Mbps SC fiber port
MEDIA CONVERTER MODULE
Fiber Type 9/125 m single-mode fber ( 20 km)
GTIN: 4897098683064
