TP-Link TL-POE260S 2.5G PoE+ Injector 802.3af/at, up to 30W [POE260S]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 3 items left!
$54.19

Collect 54 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

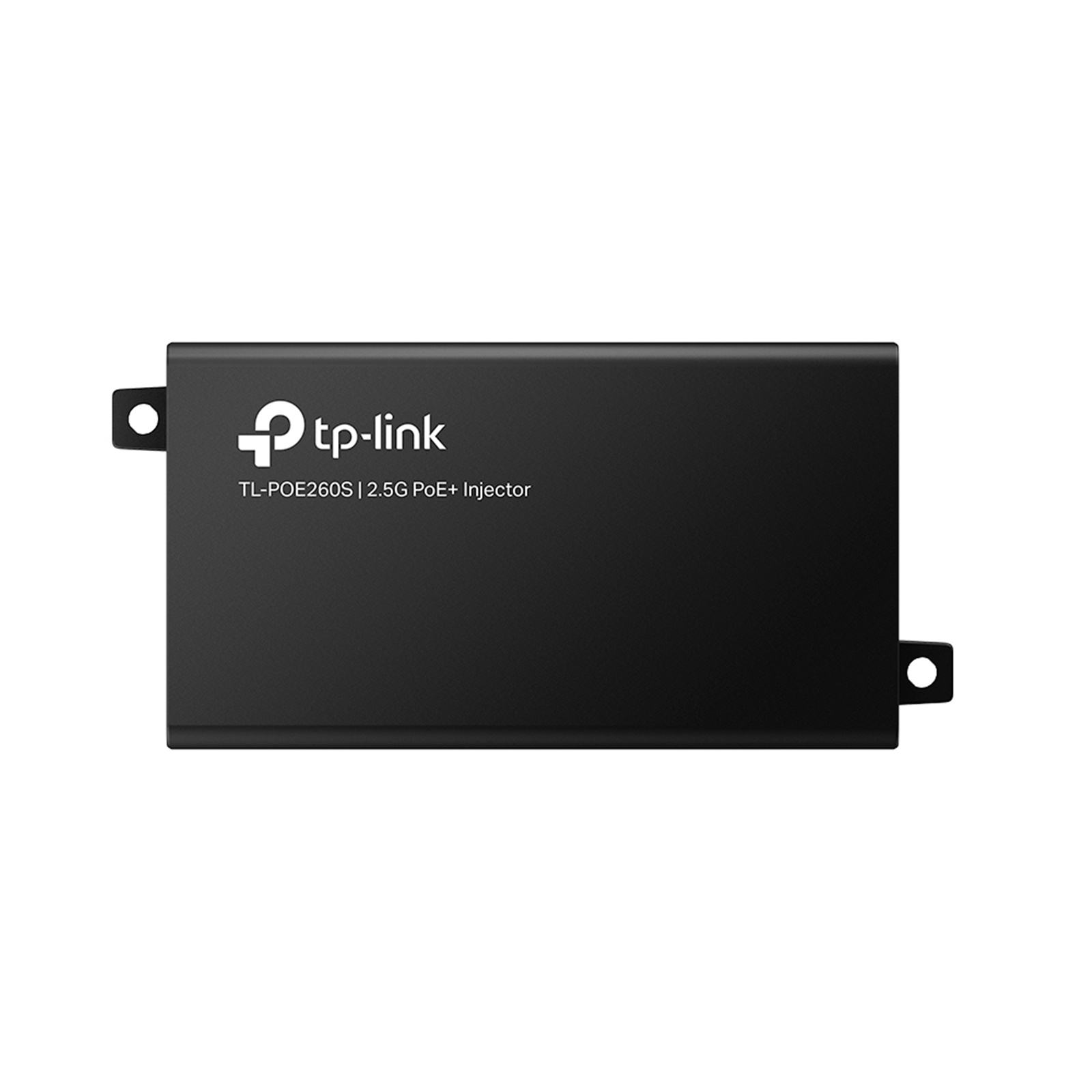

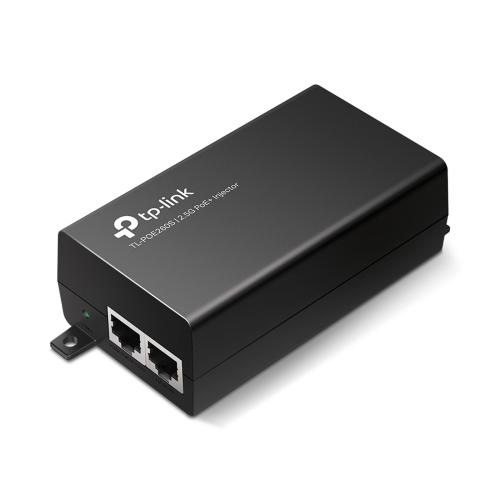

TP-Link TL-POE260S 2.5G PoE+ Injector 802.3af/at, up to 30W

TL-POE260S
2.5G PoE+ Injector
- 2*2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

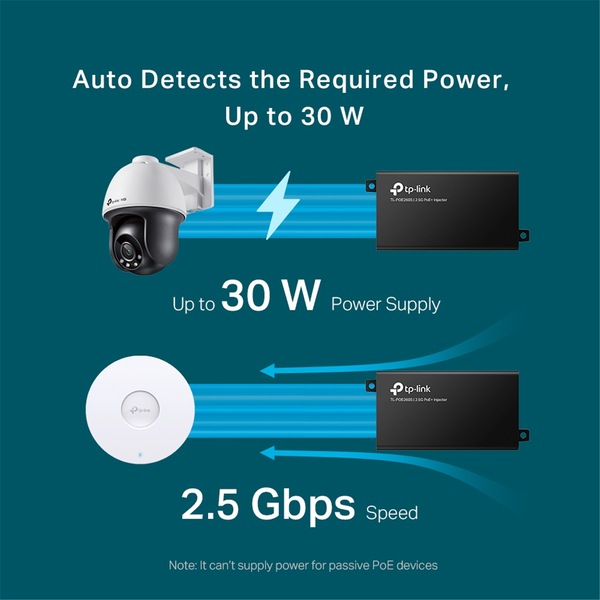

- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
What This Product Does

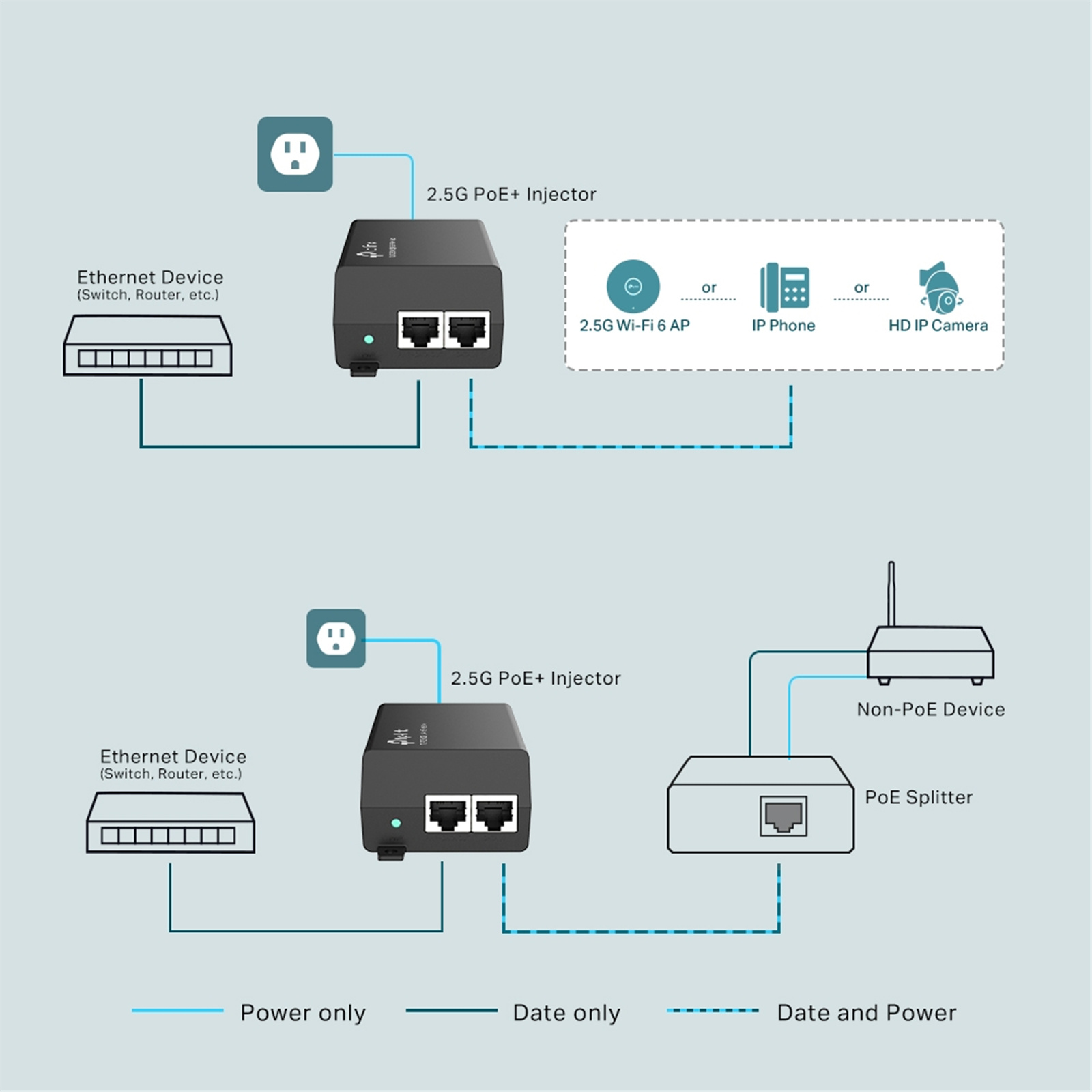

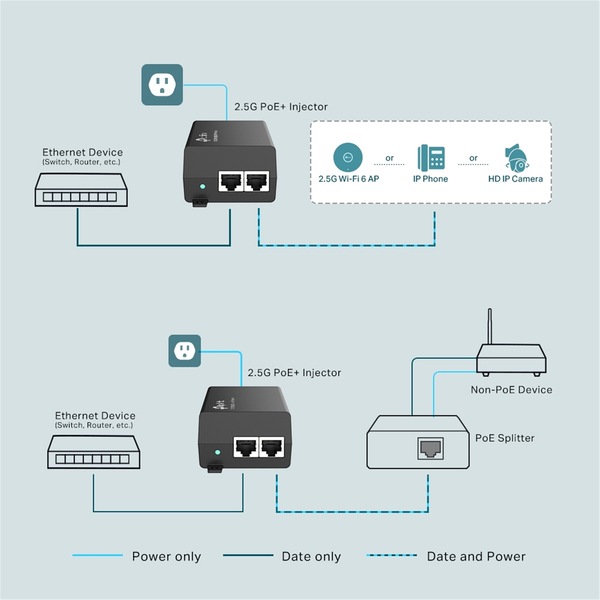

The 2.5G PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.

NETWORK

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at

GENERAL

Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

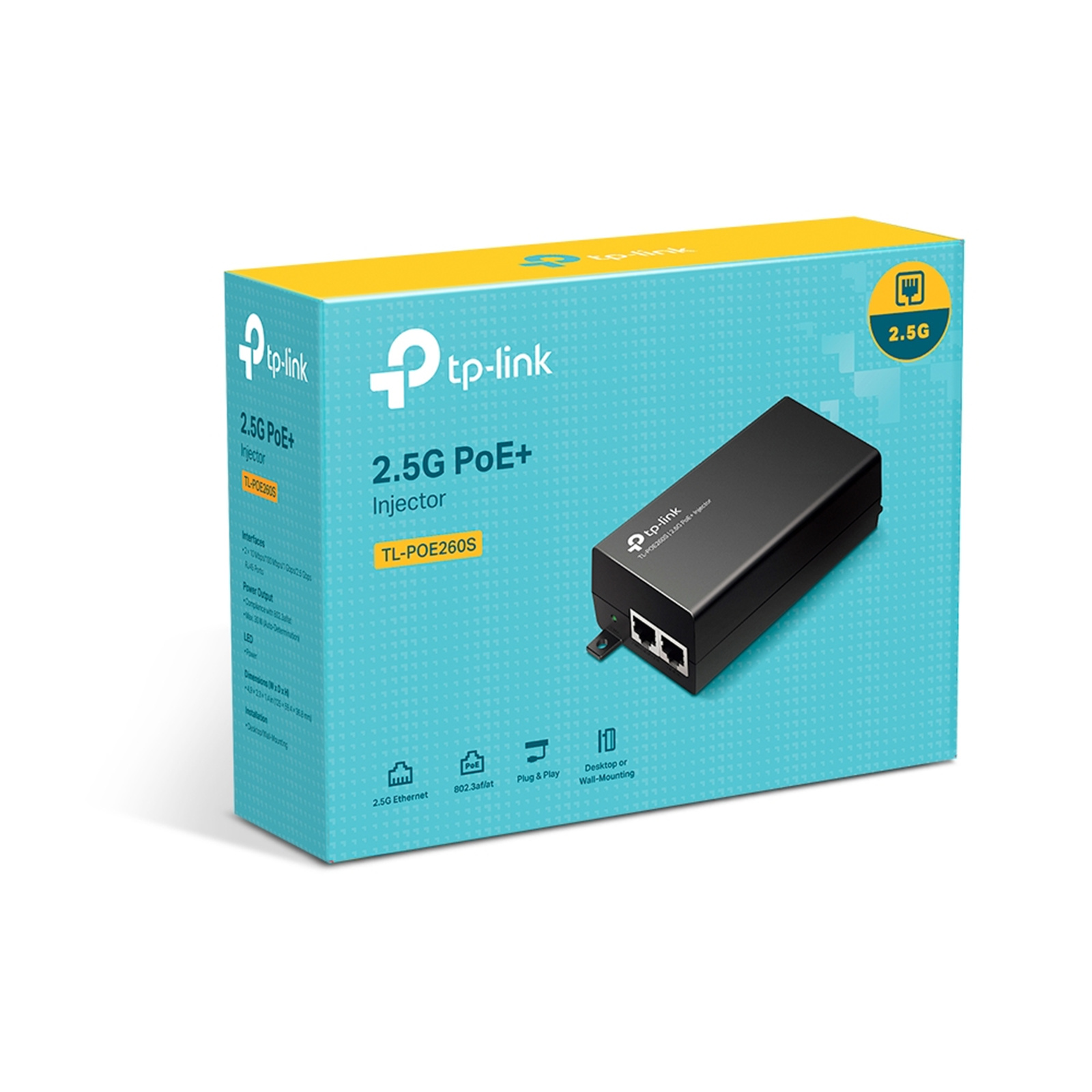

PACKAGE CONTENTS

Package Contents
- 2.5Gbps PoE+ Injector TL-POE260S
- Installation Guide
- Power Cord
- RJ45 Cable
- Wall Mounting Kits

HARDWARE FEATURES

Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
- 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)

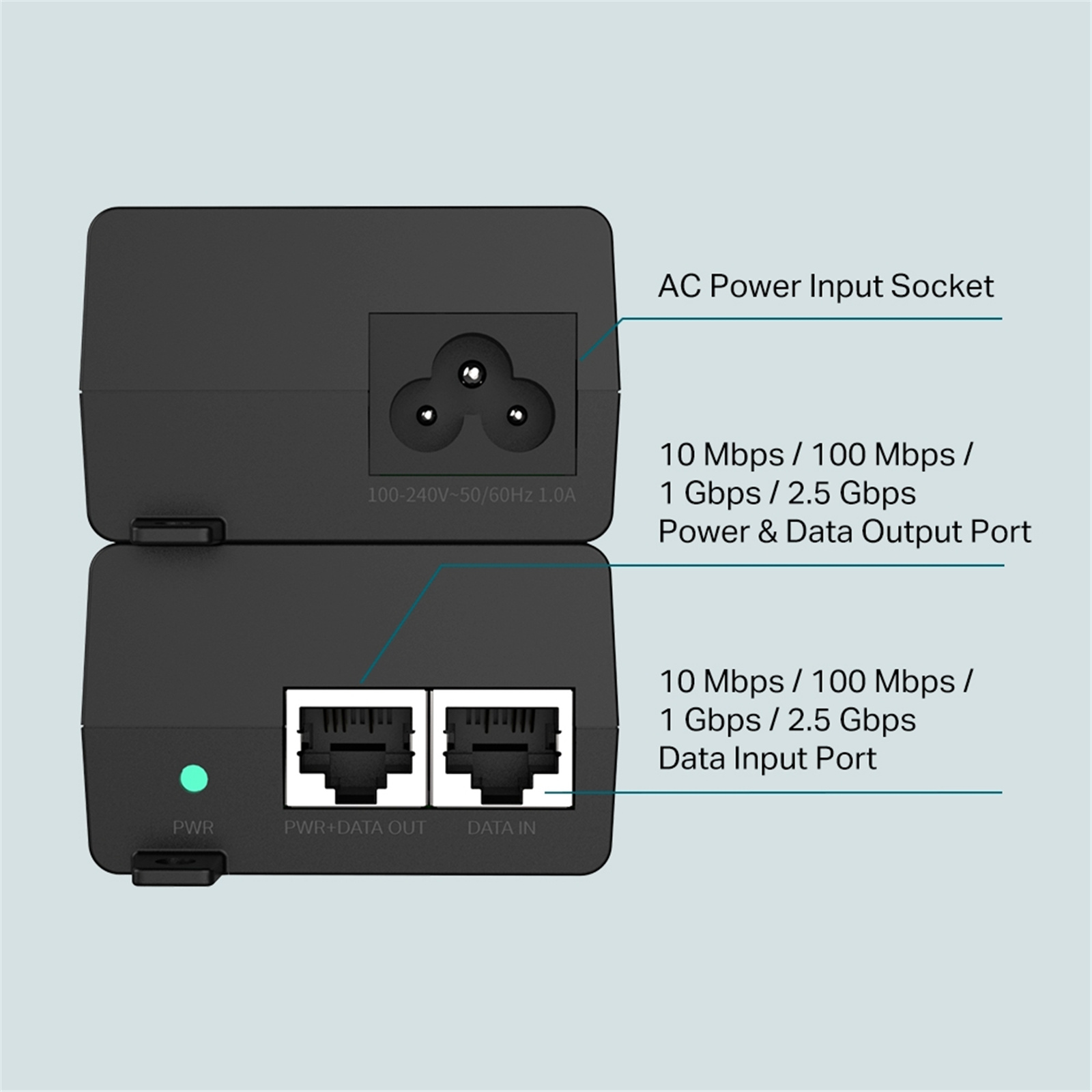

Ports
- 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port
- 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port
- 1 AC socket

Power Consumption
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function
- Auto-Sensing Algorithm enables providing power with 802.3af/at PD
- Auto-determine the necessary power requirements
- Wall-mounting and desktop installation supported
- Plug-and-Play

LED Indicator
ON: Supplying power normally
OFF: No power supply

Dimensions ( W x D x H )
4.9*2.3*1.4 in (125*59.4*36.8 mm)
- MPN: POE260S

GTIN: 4895252502220
