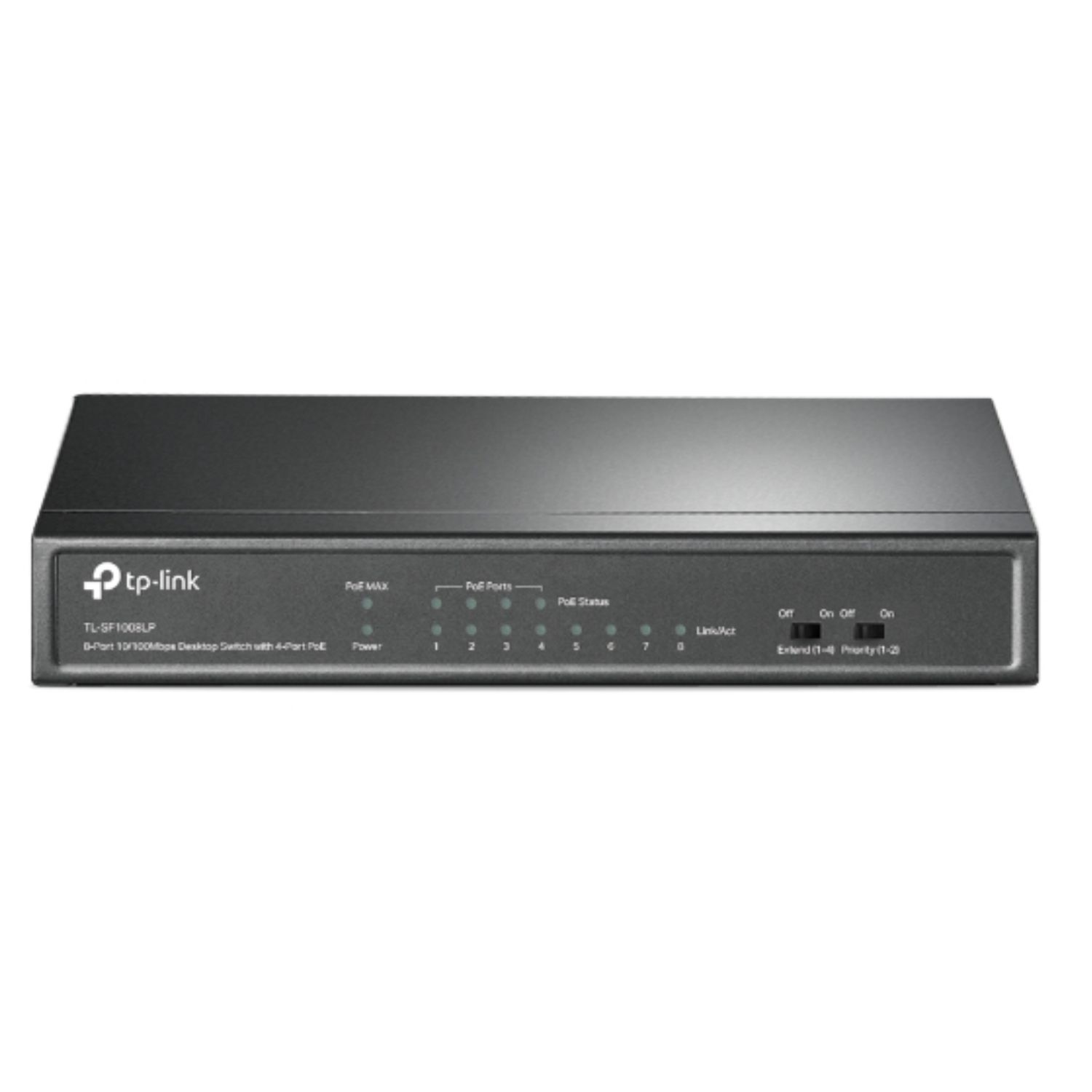

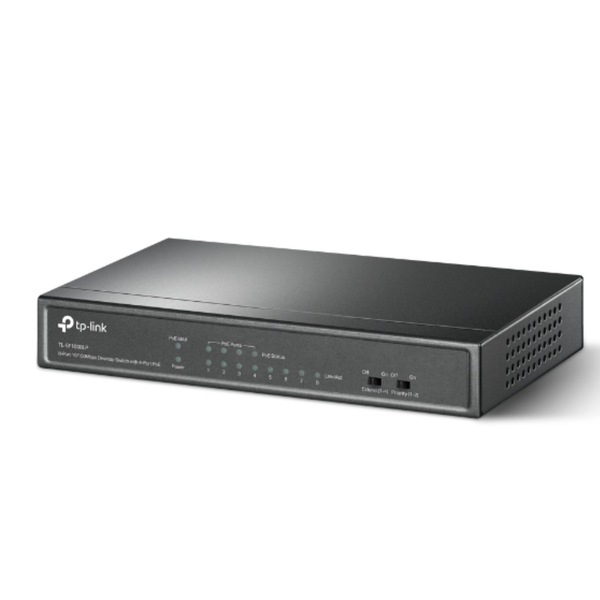

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, Up To 41W For all PoE Ports

Image 1
Image 2
Image 3
Limited Stock
$59.36

Collect 59 Everyday Rewards points

Log in to MyDeal to link your card
$13.20 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE

  • 8× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required

HARDWARE FEATURES

Interface• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)

  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)

Fan QuantityFanless

Physical Security LockYes

External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A)

PoE Ports (RJ45)• Standard: 802.3 af compliant

  • PoE Ports: Ports 1–4
  • Power Supply: 41 W

Backbound Bandwidth1.6 Gbps

Mac Address Table2K

Dimensions ( W x D x H )6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption• 2.2 W (220 V/ 50 Hz. no PD connected)

  • 47.1 W (220 V/ 50 Hz. with 41 W PD connected)

Max Heat Dissipation• 7.5 BTU/h(no PD connected)

  • 160.61 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission MethodStore-And-Forward

Advanced Functions• Compatible With IEEE 802.3af Compliant PDs

  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

CertificationFCC, CE, RoHS

Package Contents• TL-SF1008LP

  • Power Adapter
  • Installation Guide

Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

GTIN: 6935364052768
