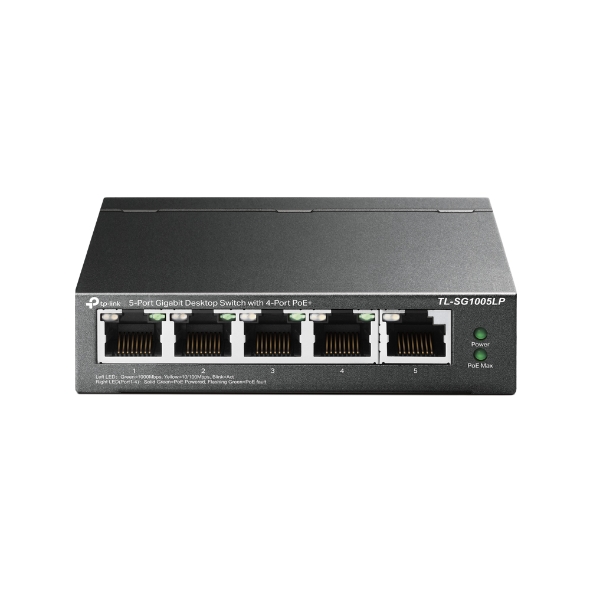

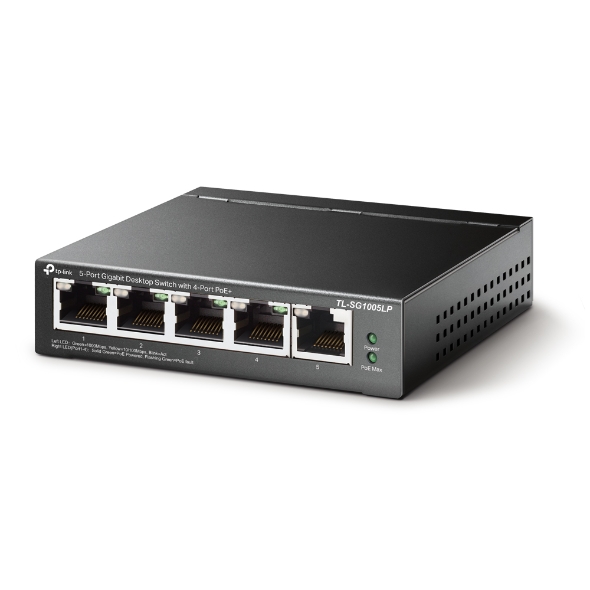

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port

Image 1
Image 2
Image 3
$69.14

Collect 69 Everyday Rewards points

Log in to MyDeal to link your card
$11.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports*
  • Plug and play, no configuration and installation required

HARDWARE FEATURES

Interface• 5× 10/100/1000Mbps RJ45 Ports

  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)

Fan QuantityFanless

External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate7.44 Mpps

PoE Ports (RJ45)• Standard: 802.3 af/at compliant

  • PoE Ports: Ports 1–4
  • Power Supply: 40 W

Mac Address Table2K

Jumbo Frame16 KB

Switching Capacity10 Gbps

Dimensions ( W x D x H )3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption• 4.12 W (220/50 Hz. no PD connected)

  • 47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation• 14.05 BTU/h (no PD connected)

  • 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES

Advanced Features• Compatible With IEEE 802.3af/at Compliant PDs

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping

Transfer MethodStore-And-Forward

OTHERS

CertificationFCC, CE, RoHS

Package Contents• TL-SG1005LP

  • Power Adapter
  • Installation Guide

Environment• Operating Temperature: 0–40 ℃ (32–104 ℉);

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

GTIN: 6935364052720
