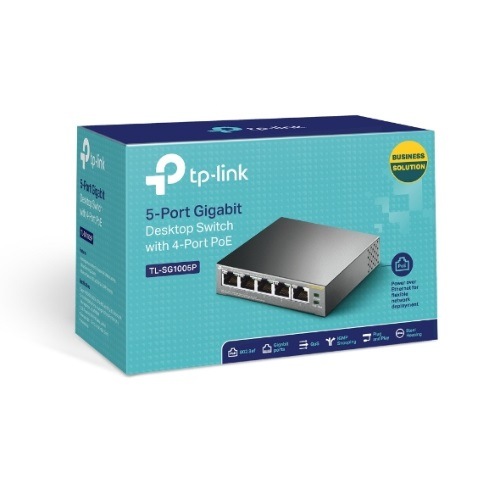

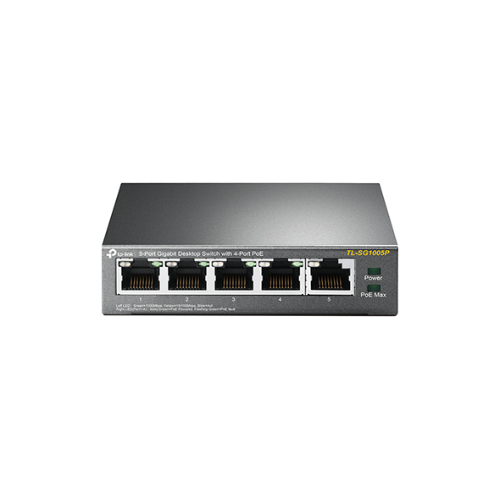

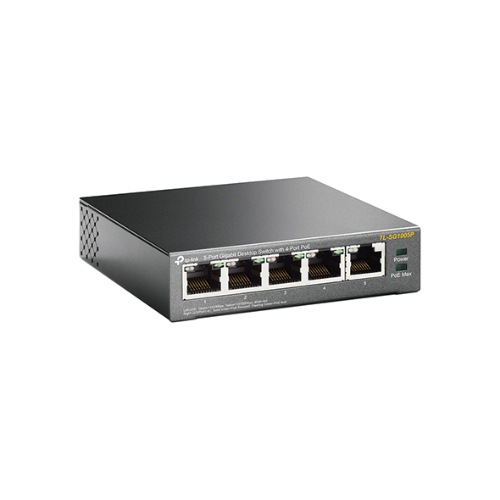

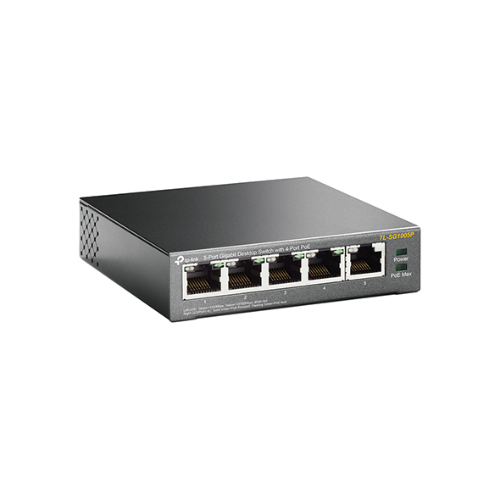

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case

Image 1
Image 2
Image 3
$78.80

Collect 78 Everyday Rewards points

Log in to MyDeal to link your card
$11.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10/100/1000Mbps RJ45 ports

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs, expands home and office network

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 15.4W for each PoE port

Supports PoE Power up to 56W for all PoE ports

Requires no configuration and installation

HARDWARE FEATURES

Interface• 5× 10/100/1000Mbps RJ45 Ports

  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)

Fan QuantityFanless

External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A)

Packet Forwarding Rate7.44 Mpps

PoE Ports (RJ45)• Standard: 802.3 af/at compliant

  • PoE Ports: Ports 1–4
  • Power Supply: 65 W

Mac Address Table2K

Jumbo Frame16 KB

Switching Capacity10 Gbps

Dimensions ( W x D x H )3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption• 4.29 W (220/50 Hz. no PD connected)

  • 74.24 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation• 14.63 BTU/h (no PD connected)

  • 253.16 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features• Compatible With IEEE 802.3af/at Compliant PDs

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping

GTIN: 6935364083212
