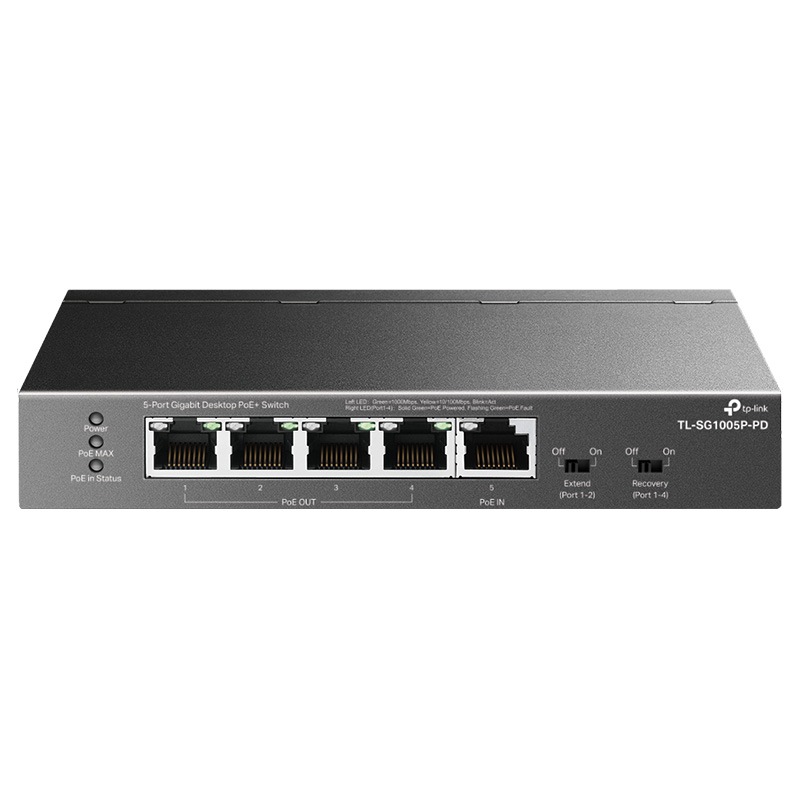

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
SPECIFICATIONS:
HARDWARE FEATURES | |
Standards and Protocols             | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
Interface            | • 5× 10/100/1000Mbps RJ45 Ports • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)          • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)             • AUTO Negotiation       • AUTO MDI/MDIX         |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)           • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)    • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity     | Fanless |
Power Supply   | Only Powered by PoE Device |
PoE Ports (RJ45)              | • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 • PoE Out Ports: Ports 1-4, compliance with 802.3af/at  • PoE Power Budget:      -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W) |
Dimensions ( W x D x H )             | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max Power Consumption           | • 2.68 W (90W PoE In, with no PD connected) • 68.59 W (90W PoE In, with 66 W PD connected)            |
Max Heat Dissipation   | • 9.112 BTU/h (90W PoE In, with no PD connected) • 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
PERFORMANCE | |
Switching Capacity         | 10 Gbps |
Packet Forwarding Rate | 7.44 Mpps |
MAC Address Table        | 2k |
SOFTWARE FEATURES | |
Advanced Features        | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) • Mac Address Auto-Learning and Auto-Aging    • IEEE 802.3x Flow Control          • 802.1p/DSCP QoS       • IGMP Snooping            |
Transfer Method             | Store-And-Forward |
OTHERS | |
Certification      | CE, FCC, RoHS |
Package Contents           | TL-SG1005P-PD Installation Guide            |
Environment    | Operating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉)     Operating Humidity: 10–90% RH non-condensing             Storage Humidity: 5–90% RH non-condensing    |
Notes | *PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of  PoE-powered devices or the cable quality and type. |
