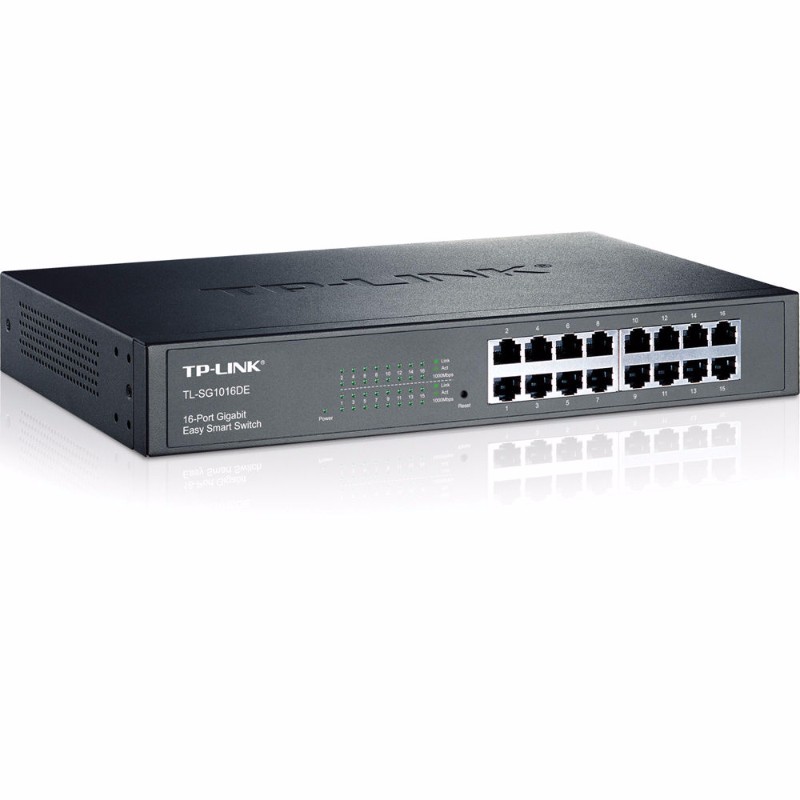

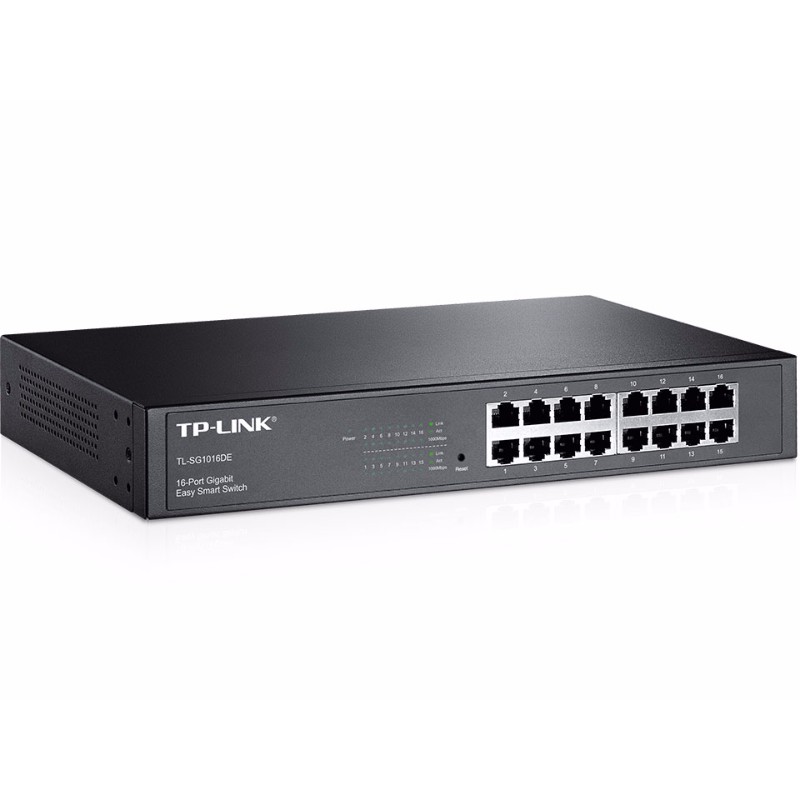

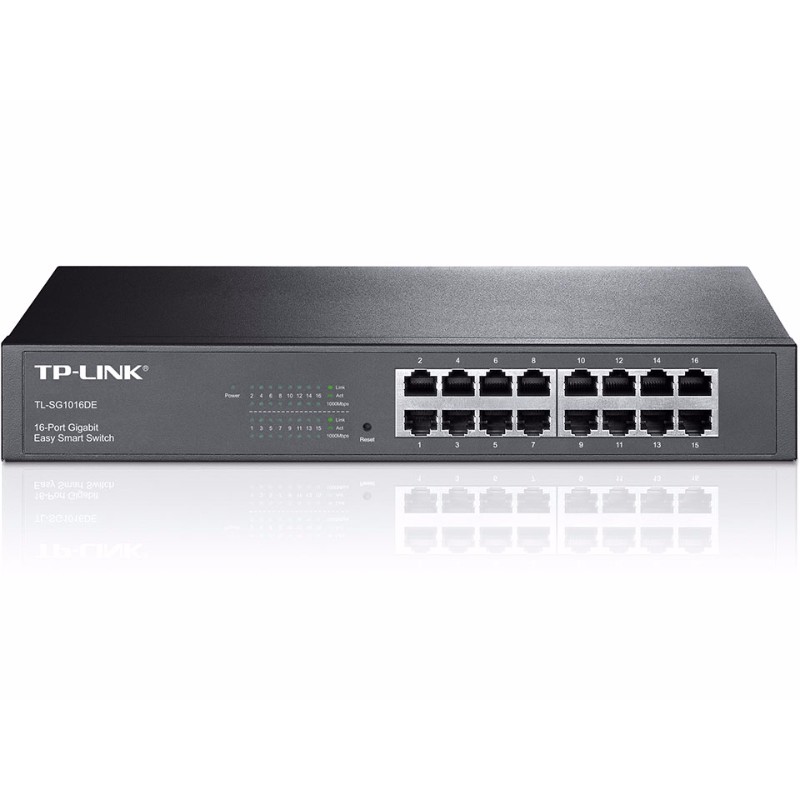

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch Network Management

Image 1
Image 2
Image 3
Limited Stock
$120.19

Collect 120 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch

Features:
  • 16 10/100/1000Mbps RJ45 ports
  • Provides network monitoring, traffic prioritization and VLAN features
  • Green technology reduces power consumption
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
Specifications:

HARDWARE FEATURES

  • Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface :16 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
  • Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
  • Fan Quantity :Fanless
  • Physical Security Lock :No
  • Power Supply :100-240VAC, 50/60Hz
  • Dimensions ( W x D x H ) :11.6*7.1*1.7 in. (294*180*44 mm)
  • Mounting :Rack Mountable
  • Max Power Consumption :10.54W (220V/50Hz)
  • Max Heat Dissipation :35.94 BTU/h

PERFORMANCE

  • Switching Capacity :32Gbps
  • Packet Forwarding Rate :23.8Mpps
  • MAC Address Table :8K
  • Packet Buffer Memory :4.1Mbit
  • Jumbo Frame :10KB

SOFTWARE FEATURES

  • Quality of Service :Support Port-based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • L2 Features :IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
  • VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Transmission Method :Store-And-Forward

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :TL-SG1016DE
    Power Cord
    Installation Guide
    Resource CD
    Rackmount Kit
    Rubber Feet
  • System Requirements :Microsoft® Windows® for running Utility
  • Environment :Operating Temperature: 0?~40? (32?~104?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

SKU: SWI-TPL-SG1016E
