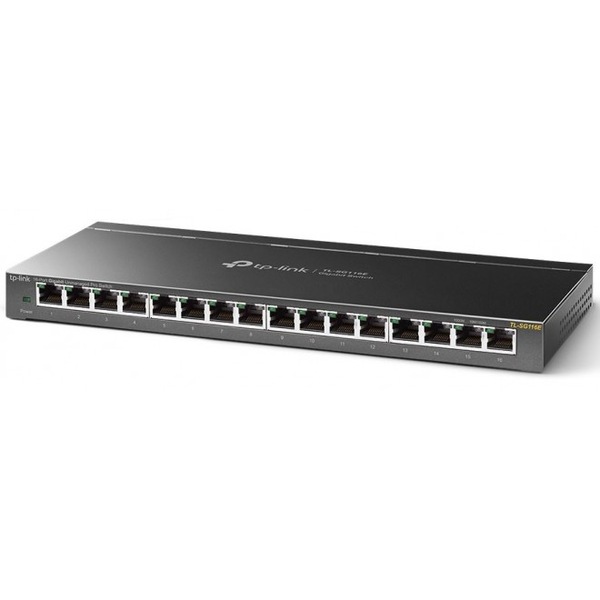

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Desktop Switch

Image 1
Hurry! 1 items left!
$89

Collect 89 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by ARC Online
Secure ways to pay at checkout

Overview:

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Desktop Switch

Standards:

  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • IEEE 802.1q, IEEE 802.1p
  • 16x 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Fanless Design
  • External Power Adapter (Output: 9VDC/0.6A)
  • Maximum Power Consumption: 9.3 W
  • 32Gbps Switching Capacity
  • 23.81Mpps Packet Forwarded
  • 8K MAC Address Table
  • 4.1MB Packet Buffer
  • Certifications: FCC, CE, RoHS
  • 5 Years Limited Warranty

Features:

Hardware Features:

  • Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface 16 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity Fanless
  • Power Supply External Power Adapter(Output: 9VDC/0.6A)
  • Power Consumption Maximum: 9.27W (220V/50Hz)
  • Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

Performance:

  • Switching Capacity 32Gbps
  • Packet Forwarding Rate 23.81Mpps
  • MAC Address Table 8K
  • Packet Buffer Memory 4.1Mb
  • Jumbo Frame 9KB

Software Features:

  • Quality of Service Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
  • L2 Features IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
  • Transmission Method Store-And-Forward



Specifications:

GTIN: 6935364084301

Weight: 1.3200

Brand: TP-Link

GTIN: 6935364084301
