TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch With 16 PoE+ & 2 SFP Slots, 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SF

Image 1
Image 2
Image 3
$292.82

Collect 292 Everyday Rewards points

Log in to MyDeal to link your card
$13.20 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

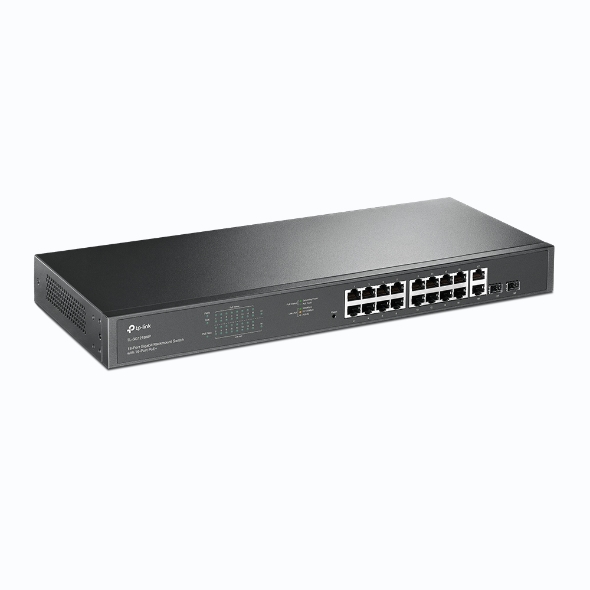

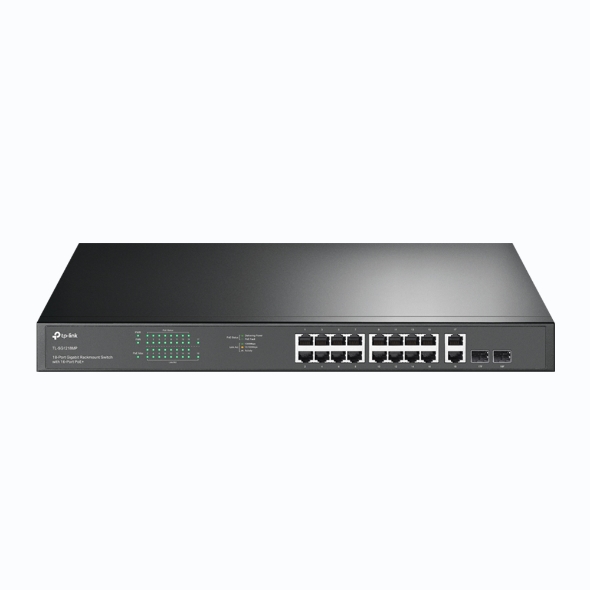

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

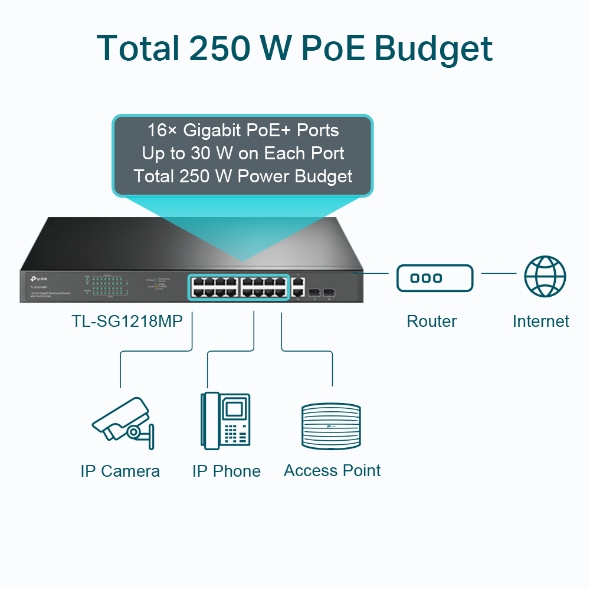

  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs
  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface• 16× PoE+ gigabit RJ45 ports

  • 2× gigabit non-PoE RJ45 ports
  • 2× combo gigabit SFP slots

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF

Fan Quantity2

Physical Security LockYes

Power Supply100–240 VAC, 50/60 Hz

PoE+ Ports(RJ45)• Standard: 802.3at/802.3af compliant

  • PoE Ports: Ports 1–16
  • PoE Power Budget: 250 W

Dimensions ( W x D x H )17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

MountingRack Mountable

Max Power Consumption• 21.4 W (220/50 Hz. no PD connected)

  • 286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation• 72.97 BTU/h (no PD connected)

  • 977.44 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity36 Gbps

Packet Forwarding Rate26.78 Mbps

MAC Address Table8K

Packet Buffer Memory4.1 Mbit

Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs

  • 802.1p/DHCP QoS
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame10 KB

GTIN: 6935364072155

Estimated Delivery Time Frame:3-7 business days
