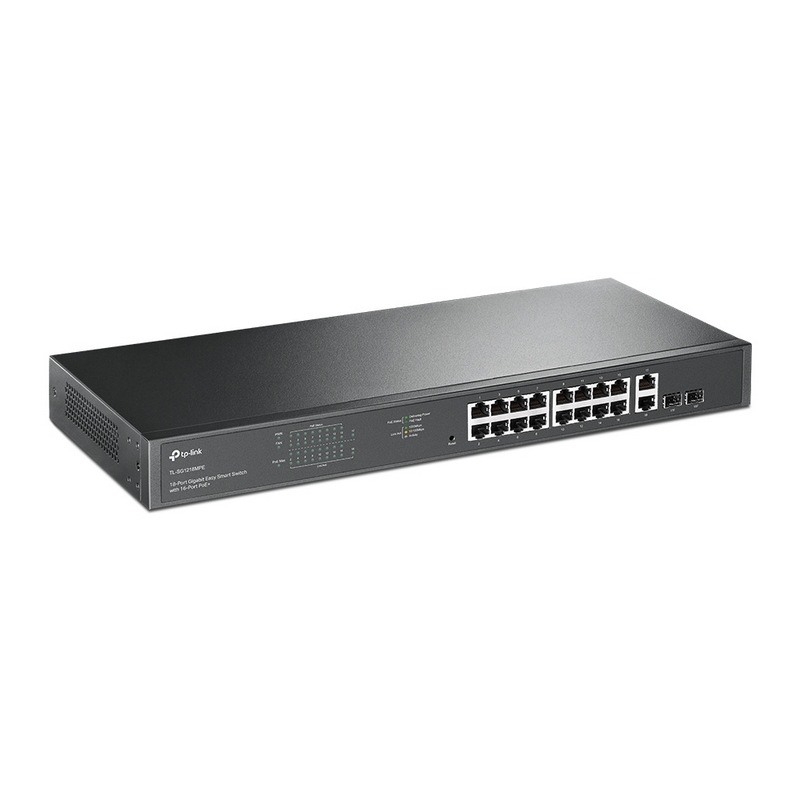

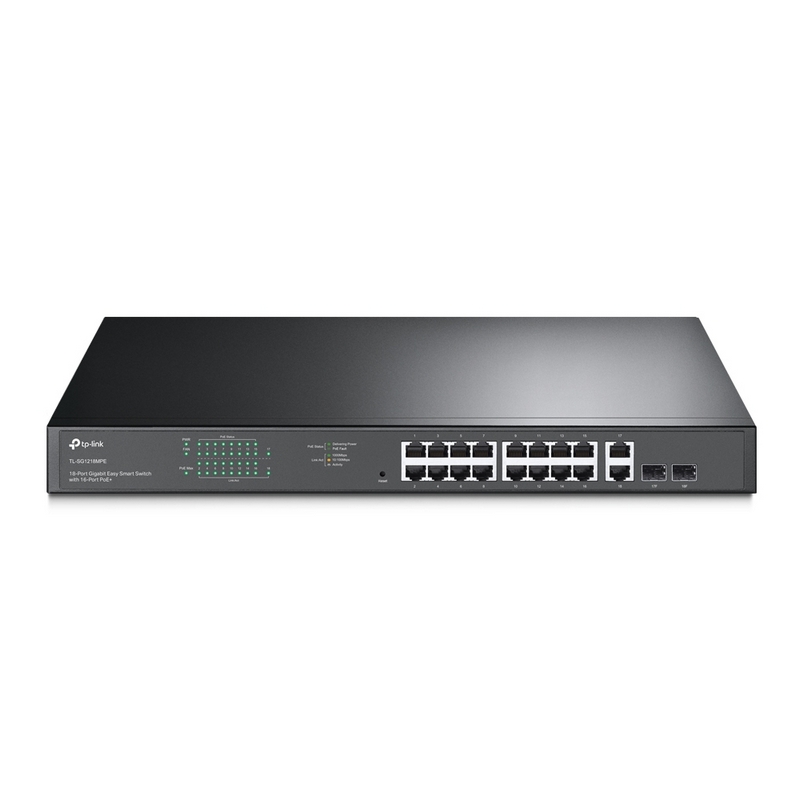

TP-Link TL-SG1218MPE 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

Image 1
Image 2
Image 3
Image 4
Limited Stock
$304.22

Collect 304 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

Popular Products

TP-Link 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

TP-Link TL-SG1218MPE, 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

Features:

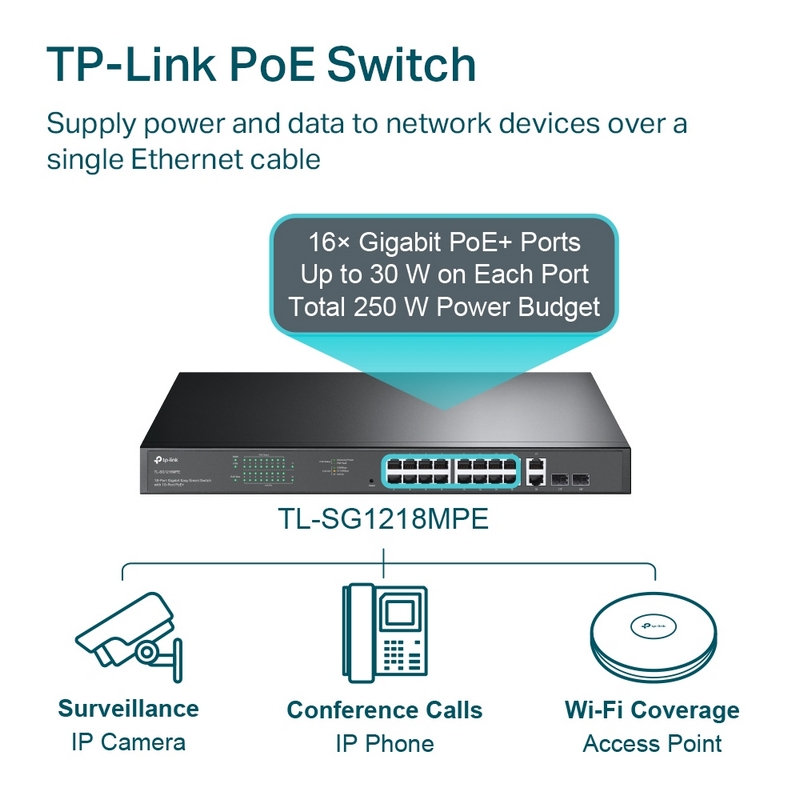

  • 16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250W, making it ideal for small to medium business surveillance systems
  • Port Priorityis able toguaranteethe quality of sensitive applicationlike video monitor
  • Intelligent power management can protect the switch from overload
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
  • Learn more about TP-LinkPoE technology >
Specifications:

HARDWARE FEATURES

  • Standards and Protocols :IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
  • Interface :16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    2x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    2x Combo Gigabit SFP Ports
  • Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    1000BASE-X MMF, SMF
  • Fan Quantity :2 Fans
  • Physical Security Lock :Yes

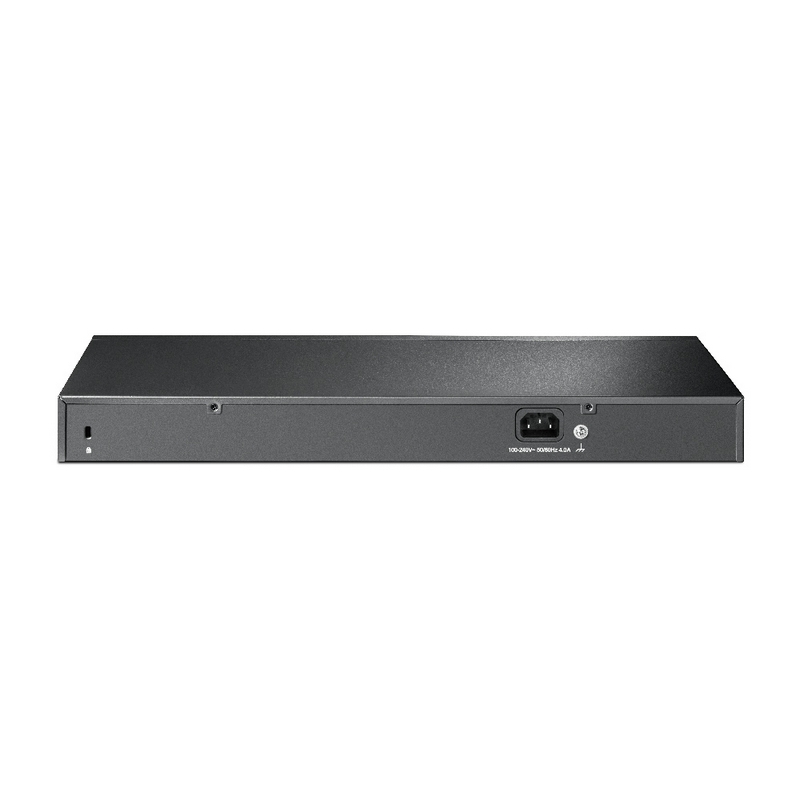

  • Power Supply :100-240V AC, 50/60 Hz
  • PoE+ Ports(RJ45) :Standard: 802.3at/802.3af compliant
    PoE+ Ports: Ports 1-16
    Power Supply: 250 W
  • Dimensions ( W x D x H ) :17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
  • Mounting :Rack Mountable
  • Max Power Consumption :21.4 W (220/50Hz. no PD connected)
    296.3 W (220/50Hz. with 250 W PD connected)
  • Max Heat Dissipation :72.97 BTU/h (no PD connected)
    1010.38 BTU/h (with 250 W PD connected)

PERFORMANCE

  • Switching Capacity :36 Gbps
  • Packet Forwarding Rate :26.78 Mbps
  • MAC Address Table :8K
  • Packet Buffer Memory :4.1 Mbit
  • Jumbo Frame :10 KB

SOFTWARE FEATURES

  • Quality of Service :Support Port-based 802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • L2 Features :IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    PoE Auto Recovery
  • VLAN :Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Management :Web-based GUI
    Easy Smart Configuration Utility
  • Transmission Method :Store-And-Forward

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :TL-SG1218MPE
    Power Cord
    Installation Guide
    Rackmount Kit
    Rubber Feet
  • Environment :Operating Temperature: 0-50 °C (32-122 °F)
    Storage Temperature: -40-70 °C (-40-158 °F)
    Operating Humidity: 10-90% RH non-condensing
    Storage Humidity: 5-90% RH non-condensing

SKU: SWI-TPL-1218MPE
