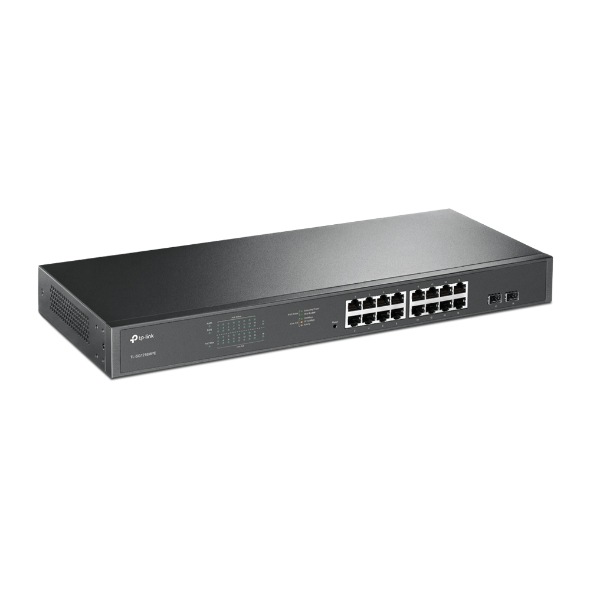

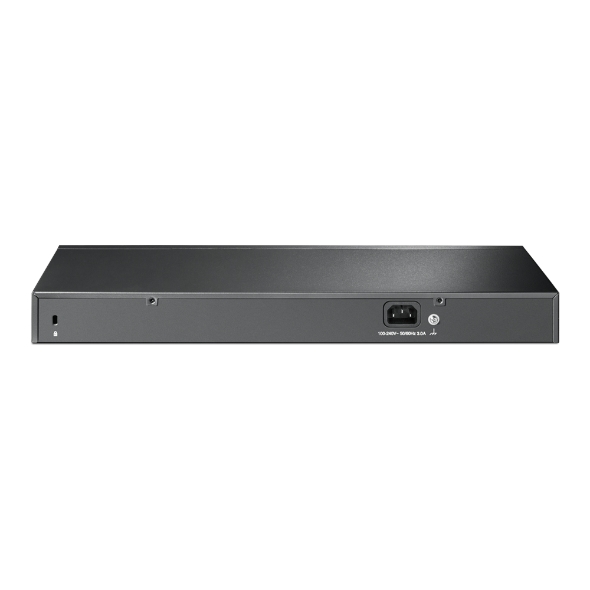

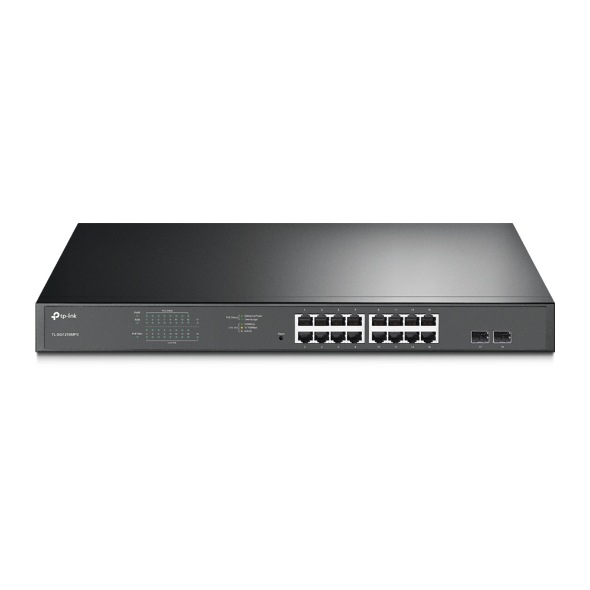

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable

Image 1
Image 2
Image 3
Limited Stock
$292.82

Collect 292 Everyday Rewards points

Log in to MyDeal to link your card
$16.50 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by ARC Online
Secure ways to pay at checkout

16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch

PoE power budget is up to 192W, making it ideal for small to medium business surveillance system

Port Priority is able to guarantee the quality of sensitive application like video monitor

Intelligent power management can protect the switch from overload

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface16 PoE+ 10/100/1000Mbps RJ45 Ports

2 Fiber Ports

Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity2 Fans

Physical Security LockYes

Power Supply100-240V AC, 50/60 Hz

Backup Bandwidth7.2 Gbps

PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port16

PoE Power Budget: 192W

Mac Address Table8K

Dimensions ( W x D x H )17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

MountingRack Mountable

Max Power Consumption18.73 W (220/50Hz. no PD connected)

217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation63.89 BTU/h (no PD connected)

741.15 BTU/h (with 192W PD connected)

PERFORMANCE

Switching Capacity36 Gbps

Packet Forwarding Rate23.8 Mbps

MAC Address Table8K

Packet Buffer Memory4.1 Mbit

Jumbo Frame9 KB

GTIN: 6935364086923
