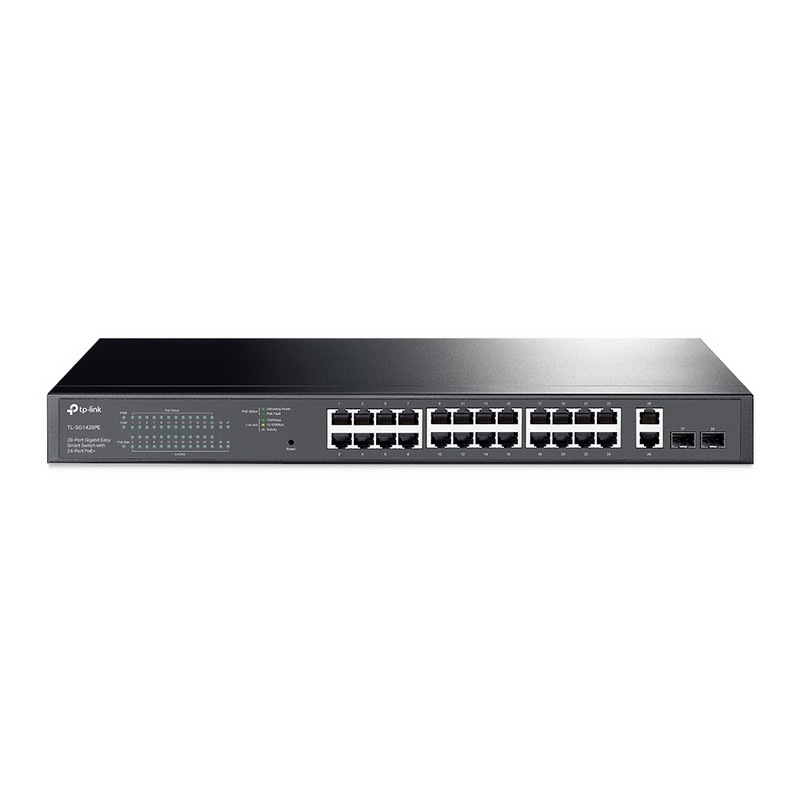

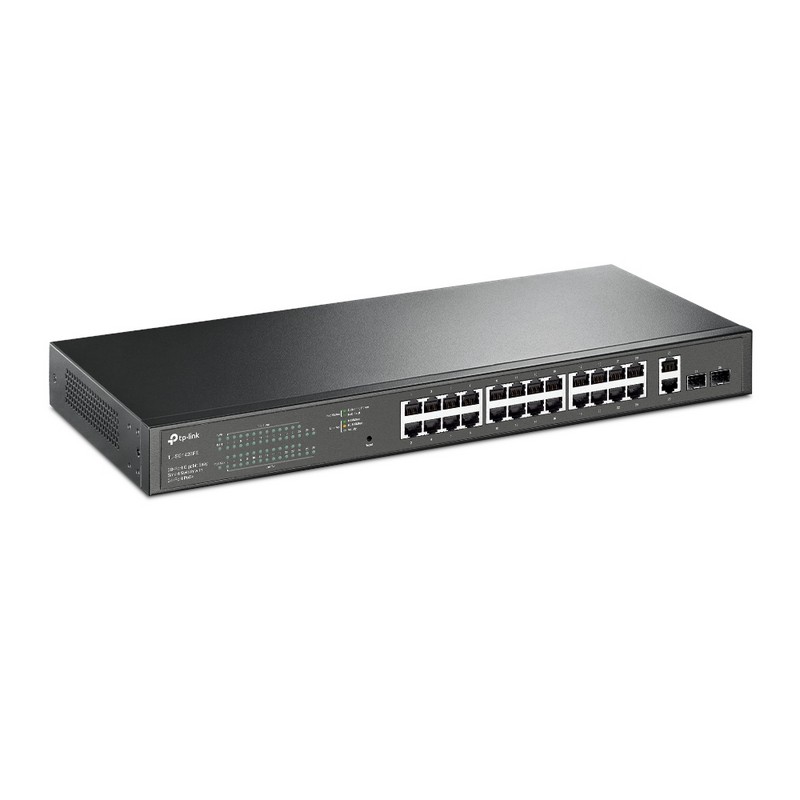

TP-Link TL-SG1428PE 28 Port Gigabit Easy Smart Switch with 24 Port PoE+ SFP Slot

Image 1
Image 2
Image 3
Best Price in the Last 14 Days
Limited Stock
$316.52
You save $27.99Was $344.51

Collect 316 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Features:
  • 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
  • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
  • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
  • Intelligent power management can protect the switch from overload

Learn more about TP-Link PoE technology >

Specifications:

HARDWARE FEATURES

  • Standards and Protocols :IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
  • Interface :26 10/100/1000 Mbps RJ45 Ports
    2 Gigabit SFP Ports
  • Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100? STP (maximum 100m)
    1000BASE-X MMF, SMF
  • Fan Quantity :2 Fans
  • Physical Security Lock :Yes
  • Power Supply :100-240V AC, 50/60 Hz
  • PoE+ Ports(RJ45) :Standard: 802.3at/802.3af compliant
    PoE+ Ports: 24 Ports
    Power Supply: 250 W
  • Dimensions ( W x D x H ) :17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm)
  • Mounting :Rack Mountable
  • Max Power Consumption :27 W (220/50Hz. no PD connected)
    304.7 W (220/50Hz. with 250 W PD connected)
  • Max Heat Dissipation :92.07 BTU/h (no PD connected)
    1039.03 BTU/h (with 250 W PD connected)

PERFORMANCE

  • Switching Capacity :56 Gbps
  • Packet Forwarding Rate :41.7 Mbps
  • MAC Address Table :8K
  • Packet Buffer Memory :4.1 Mbit
  • Jumbo Frame :9 KB

SOFTWARE FEATURES

  • Quality of Service :Support Port-based 802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • L2 Features :IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    PoE Auto Recovery
  • VLAN :Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Management :Web-Based GUI
    Easy Smart Configuration Utility
  • Transmission Method :Store-And-Forward

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :TL-SG1428PE
    Power Cord
    Installation Guide
    Rackmount Kit
    Rubber Feet
  • Environment :Operating Temperature: 0°C~50°C (32°F~122°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5%~90% non-condensing

SKU: SWI-TPL-SG1428E

Estimated Delivery Time Frame:1-7 business days

Ask a Question About This Product

Reference ID: 2620164
