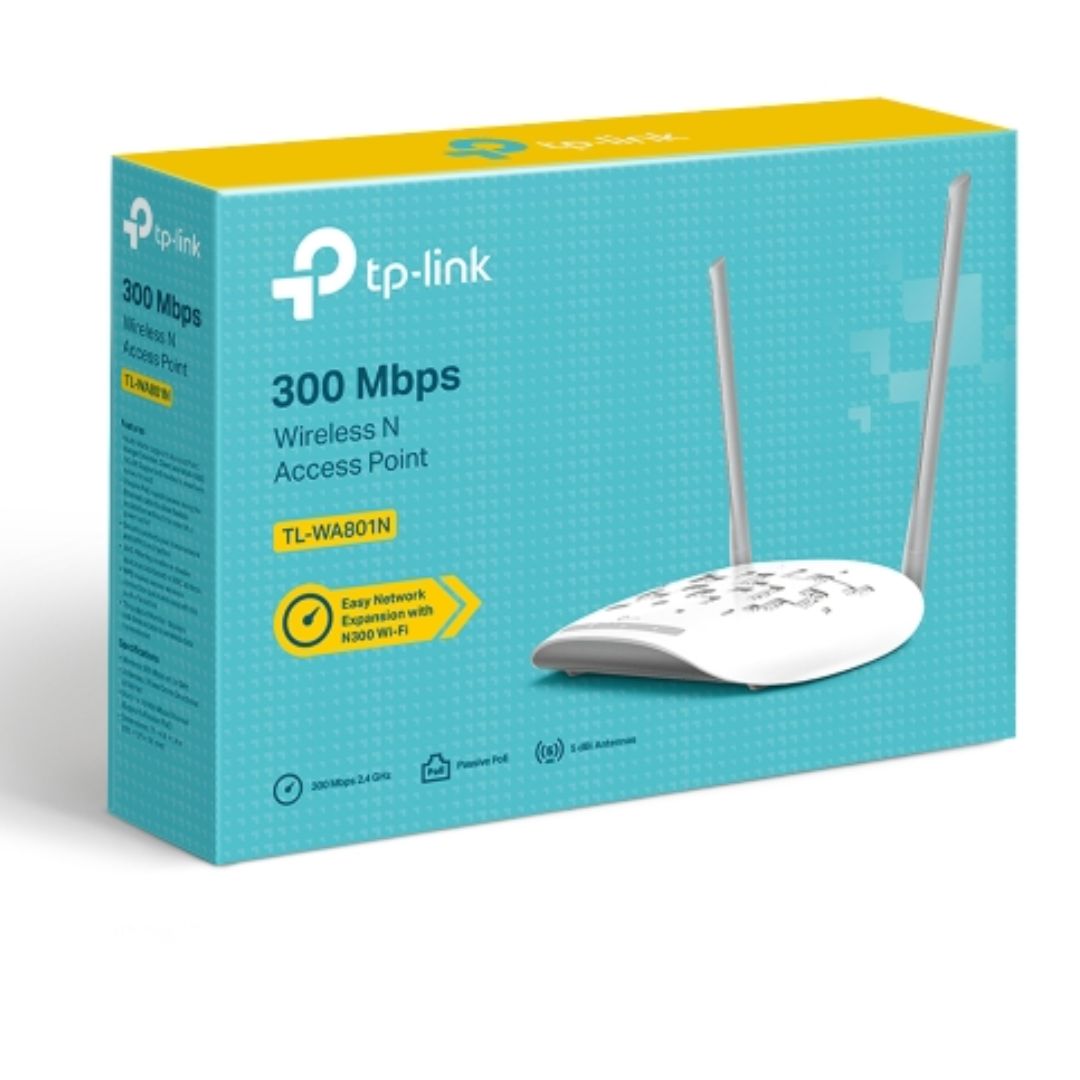

TP-Link TL-WA801N 300Mbps Wireless N Access Point
300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
Protects your home network with WPA2 encryption and makes quick connection with the push of a button
Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
HARDWARE FEATURES
Interface 1 10/100 M Ethernet Port(RJ45)
Support Passive PoE
Button Power On/O Button, WPS Button, Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 5.1 1.4 in (181.6 129.5 36.2 mm)
Antenna Type 2 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency 2.4 GHz
Signal Rate 300 Mbps at 2.4 GHz
Reception Sensitivity 11g 6Mbps: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Transmit Power CE: <15dBm; FCC: <20dBm Wireless Modes AP Mode Multi-SSID Mode Client Mode Range Extender Mode Wireless Functions Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor Wireless Security WEP, WPA/WPA2, WPA/WPA2-PSK encryptions Quality of Service WMM Management SNMP Advanced Functions Up to 30 meters Passive PoE is supported OTHERS Certification CE, FCC, RoHS Package Contents Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista /7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) Environment Operating Temperature: 0 C~40 C (32 F ~104 F) Storage Temperature: -40 C~70 C (-40 F ~158 F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90
WARRANTY POLICY:
All new components sold by Perth Computers and Office Supplies carry a manufacturer's warranty. The warranty does not cover damage/failure caused by mishandling, abuse or accident. Operating any product outside the manufacturer's documented specifications will void your warranty. This includes but is not limited to overclocking, incorrect voltage and other hardware modifications. Failure to follow standard installation and operating instructions, or failure to ensure adequate cooling will also void your warranty.
The length of the warranty on new hardware varies from component to component. All new hardware products sold by Perth Computers and Office Supplies have at minimum 1-year manufacturer's warranty.
Perth Computers and Office Supplies provides free labour for any warranty work required on a complete computer package for the period of 2 years from date of purchase. After the 2nd year, if the goods are still under warranty, no charges will be applicable for the repairs/replacements of the component, but charges for labour / freighting will be applied. Most software includes a warranty which covers defects on the actual media (the floppy or CD-ROM disk). No warranty is provided in terms of functionality or suitability of the program itself.
Perth Computers and Office Supplies provides a warranty on the functionality of software supplied with new Perth Computers and Office Supplies PCs for the period of 7 days from purchase. If the customer’s software is not operating correctly (regardless of whether this is caused by user error or hardware failure), we will restore the computers original configuration for no charge. After 7 days from purchase, software configuration is charged at our standard labour rates.
Perth Computers and Office Supplies provides a 3 month labour warranty on repairs that we perform to non-warranty equipment. All warranty is "return-to-base". The customer is responsible for returning and collecting any products for repair/upgrade. Perth Computers and Office Supplies offers no warranty on blank media, i.e. DVDs and CD-Rs.
RETURN OF GOODS / REFUNDS
Change of Mind returns are accepted in the first 5 days of purchase AND only for SEALED/UNOPENED/UNUSED items/goods. A 20% restocking fee applies, based on on the total invoiced value. Testing of returned items will be performed before any credit/refund/exchange is completed. Items damaged by customer will not be refunded/credited/exchanged and will void the warranty. Please allow reasonable time for testing.
Estimated Delivery Time Frame: 4-14 business days
