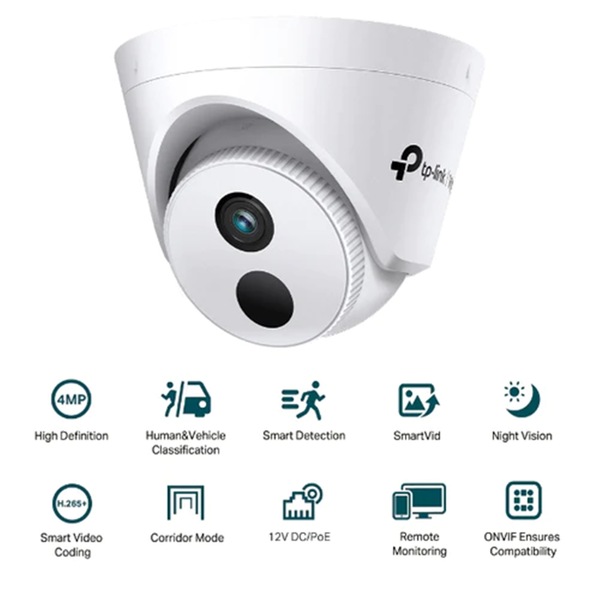

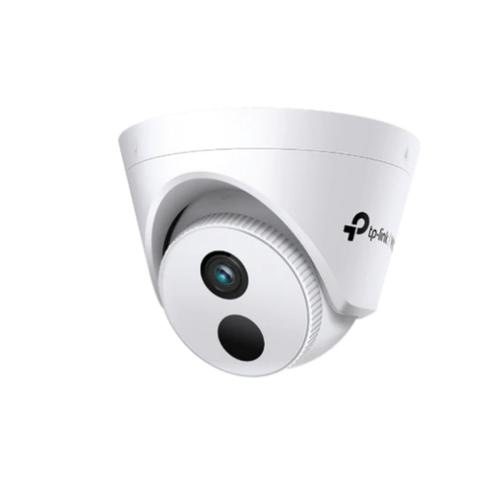

TP-Link VIGI C440I 4MP IR Turret Network Camera 4mm
Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C440I camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide-angle lens to cover enclosed spaces like elevators or a higher-millimetre lens for longer distances in open spaces like parking lots, C440I comes with two different lens versions to better suit your security needs.
Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
CAMERA
Image Sensor
1/3" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
Lens
4 mm
Aperture
4 mm: F2.2
Lens Mount
M12
Viewing Angle
4mm: 75.1°/41.5°/88.7°(H/V/D)
IR Working Distance
30m
Digital Noise Reduction
3D DNR
WDR
DWDR
LENS
Type
Fixed Focal Lens
Focal Length
4 mm
Aperture
4 mm: F2.2
FOV
4mm:
Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
Lens Mount
M12
DORI Distance
4 mm
Detect: 80 m (262 ft)
Observe:33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
VIDEO
Max. Resolution
2560 × 1440
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480,352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
Quantity: 1
Range: 30m
Wavelength: 850nm
White LED
N/A
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
WDR
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
NETWORK
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage
Yes
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,RTSP, NTP, UPnP UDP, SSL/TLS
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
Message Push
Output Notification
Message Push
GENERAL
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
95% or Less (Non-Condensing)
Dimensions( H X W X D )
123 × 123 × 83 mm
Material
Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight
0.19 Kg
Gross Weight
0.34 Kg
Power Consumption
12V DC: Max 5W
PoE: Class 0
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection
N/A
Product Dimensions (L x W x H)
123× 83× 123 mm
VIDEO/IMAGE
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240
Max. Resolution
4MP (2560 × 1440)
Video Streaming
Main Stream
Sub-Stream
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Video Bit Rate
64 Kbps to 4 Mbps
Day/Night Switch
Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
- MPN: VIGI C440I(4mm)
