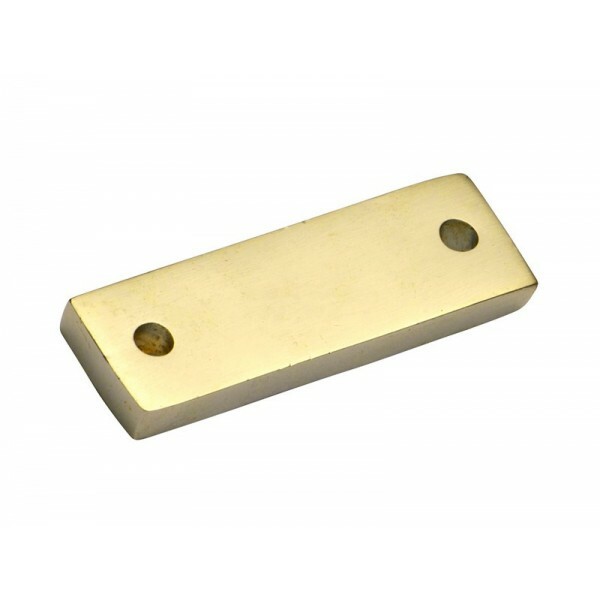

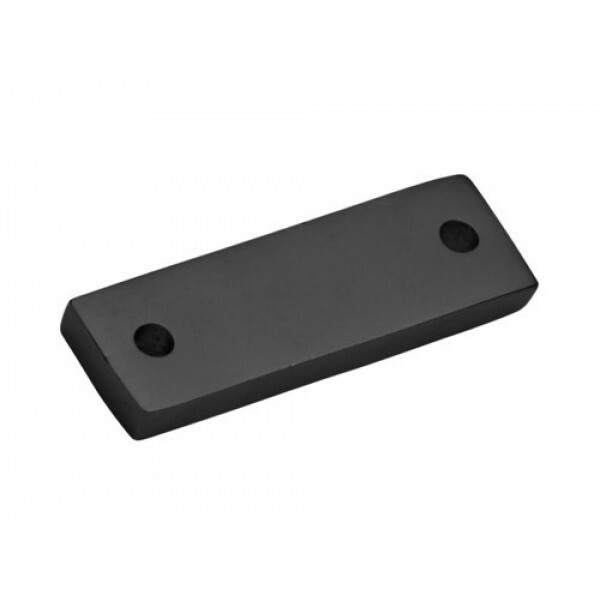

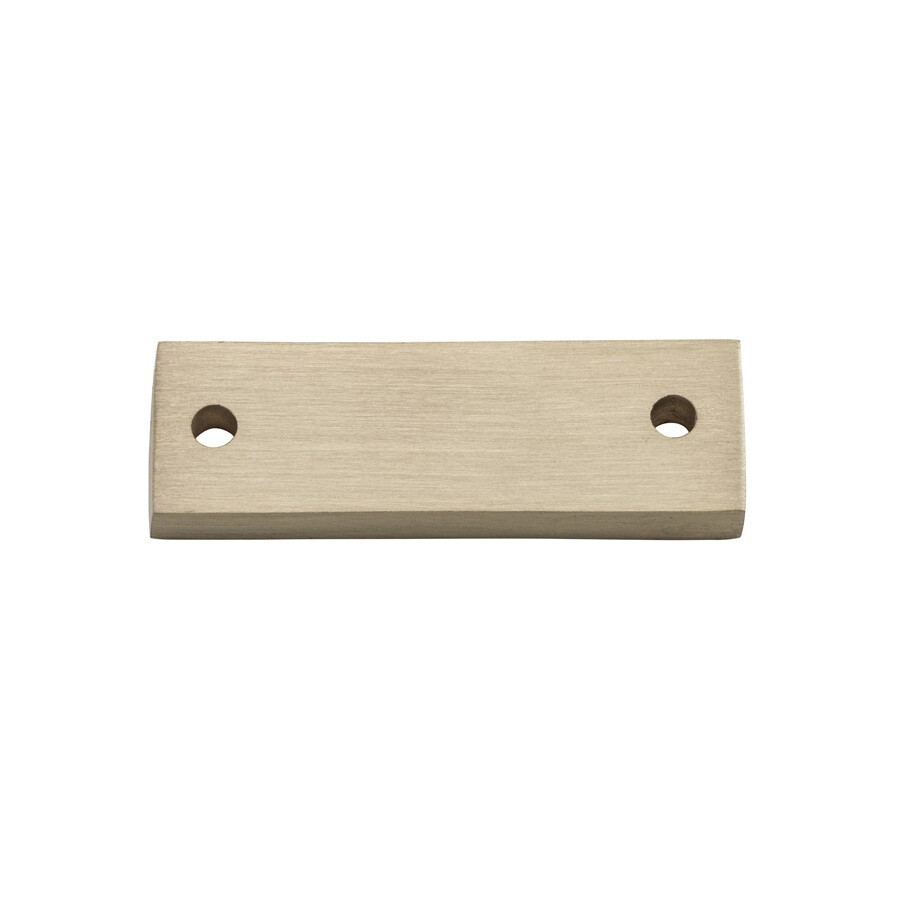

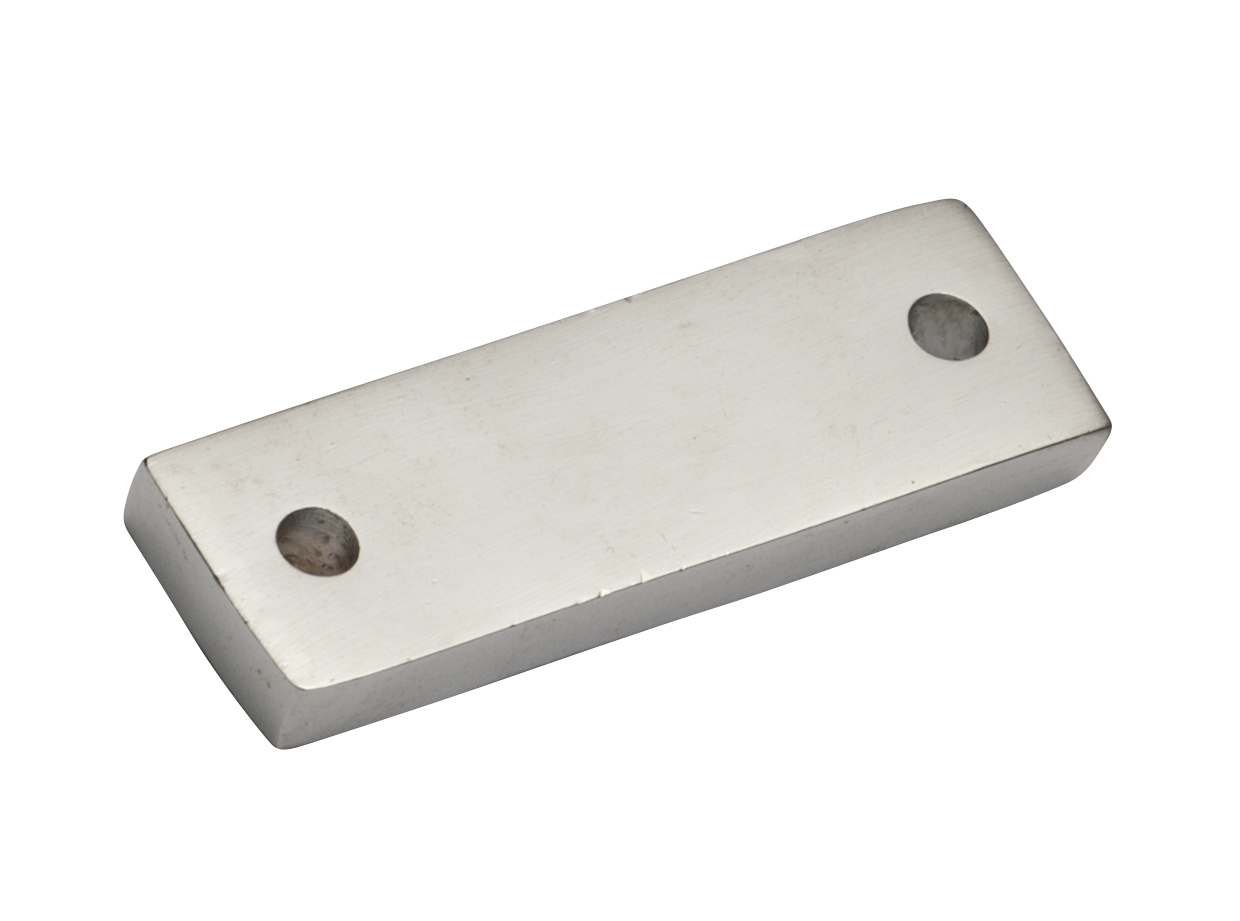

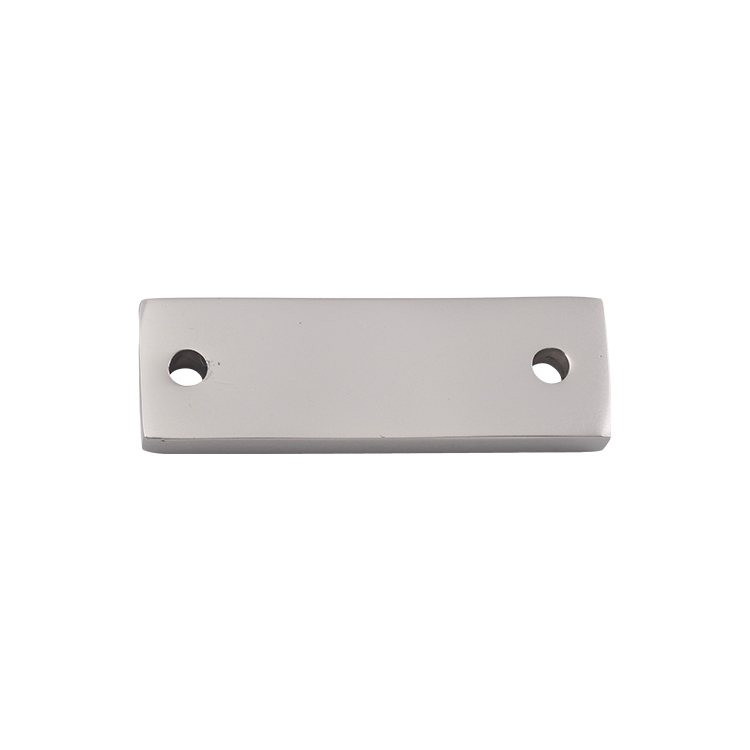

Square Casement Fastener Spacers

The casement fasteners are designed to work correctly on a pair of rebated windows with the assumption that the windows (sashes) are in one plane (flush) with each-other when closed.Some older windows can warp over time, meaning that one sash will sit some distance forward from the other when closed. There is a tolerance of about 3mm built into the design of the casement fastener, but if there is a larger discrepancy than this the adaptor plate is available to be used as a packer behind either the keeper or the teardrop handle backing plate in order to bring them both closer to the same level, making operation more convenient.

Features:

• Solid brass spacers to increase projection of casement fasteners
• Suit Tradco square casement fasteners only

Specifications:

• Width: 15mm
• Length: 50mm
• Thickness: 6mm
• Distance between the screw holes: 40mm
• Finish: Satin Brass
