Transcend Embedded 512GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC BiCS4, PE: 3K, 8CH, Wide Temp. [TS512GMTE662T-I]

Image 1
Hurry! 6 items left!
$280.26

Collect 280 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

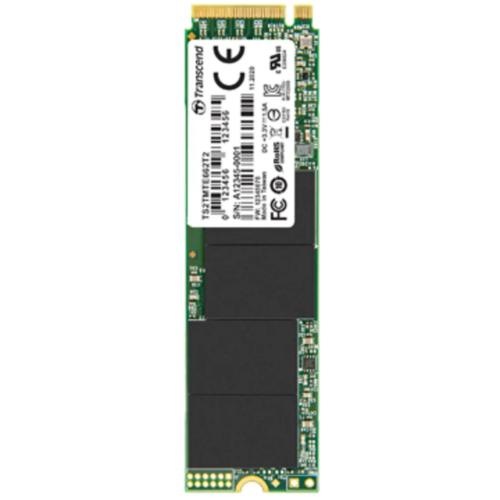

Transcend Embedded 512GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC BiCS4, PE: 3K, 8CH, Wide Temp.

Transcend's MTE662T M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with NVM Express (NVMe) 1.3 specifications to achieve never-before-seen transfer speeds. The MTE662T features state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTE662T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
Transcend also offers the MTE662T-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Supports NVM command
- SLC caching technology
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Space-saving M.2 form factor (80mm) - ideal for mobile computing devices
- 8-channel (8CH) controller for ultra high performance
- PCIe Gen 3 x4 interface
- DDR4 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

Appearance
Dimensions
80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight
9 g (0.32 oz)
M.2 Type
2280-D2-M (Double-sided)
Form Factor
M.2 2280
Interface
Bus Interface
NVMe PCIe Gen3 x4
Storage
Capacity
512 GB
Flash Type
3D NAND flash
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Standard Temp.0°C (32°F) ~ 70°C (158°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)
7.0 watt(s)
Power Consumption (IDLE)
1.0 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 3,500 MB/s
Write: up to 2,700 MB/s
4K Random Read/Write (IOmeter)
Read: up to 340,000 IOPS
Write: up to 355,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 4,400 TBW
Drive Writes Per Day (DWPD)
2 (3 yrs)
- MPN: TS512GMTE662T-I

MPN: TS512GMTE662T-I
