Transistor Tester Diode Triode Capacitance Meter LCR ESR MOSFET

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Image 15
Image 16
Limited Stock
$74.99

Collect 74 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Splendid Home and Living
Secure ways to pay at checkout

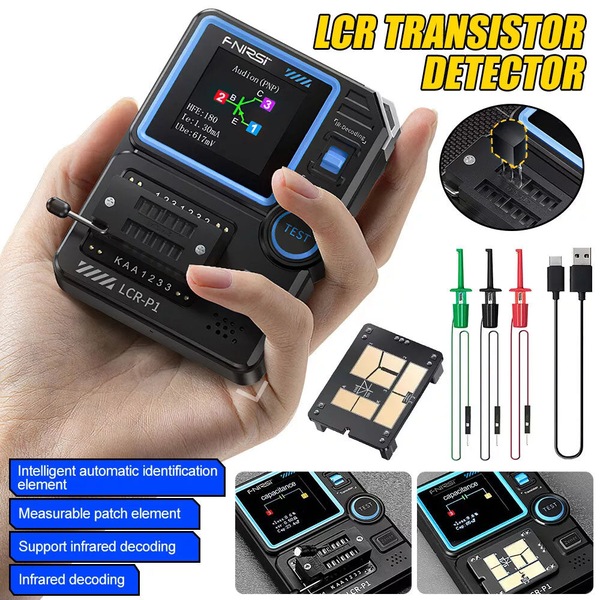

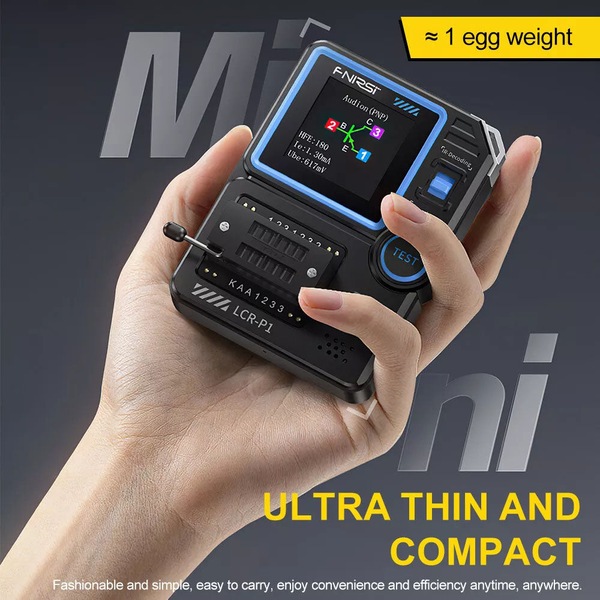

The  is a compact, multifunctional transistor tester and component analyzer designed for precision diagnostics and electrical measurements. Equipped with a 1.44-inch display, intelligent component identification, and wide testing ranges, it’s perfect for engineers, electronics hobbyists, educators, and repair technicians. The  supports automatic testing of transistors, diodes, voltage regulators, capacitors, inductors, resistors, MOSFETs, SCRs, and more. It also features NEC infrared signal decoding for remote control testing.

Features

  • Accurate Voltage Regulator Testing:
    Independent measurement channels allow precise testing of Zener diodes from 0.01V to 32V, even before powering the device.
  • Anti-Burn Protection:
    Intelligent safety design discharges capacitors upon insertion to prevent damage and protect the meter from accidental overcharge.

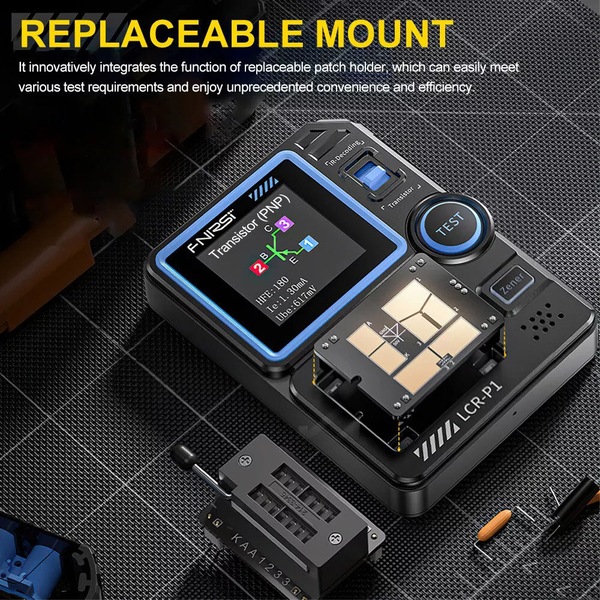

  • Modular Test Holders:
    Replaceable patch holders offer flexible testing options for different components—making testing more efficient and hassle-free.

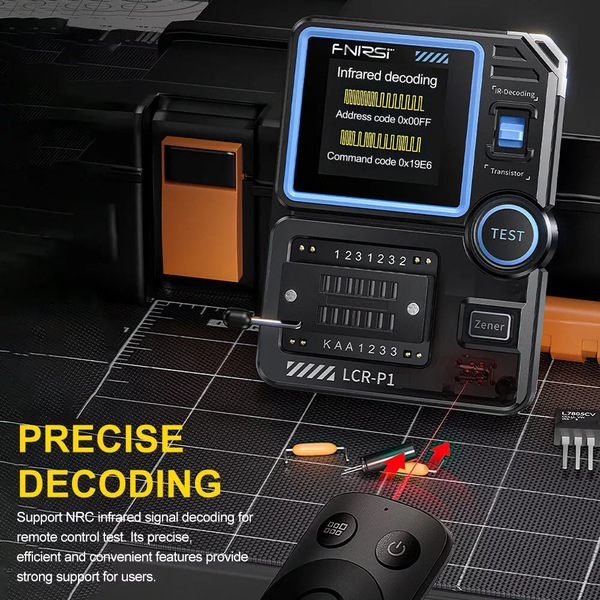

  • Infrared Signal Decoding:
    Supports NEC IR remote control decoding, ideal for testing and identifying signals from consumer electronics remotes.

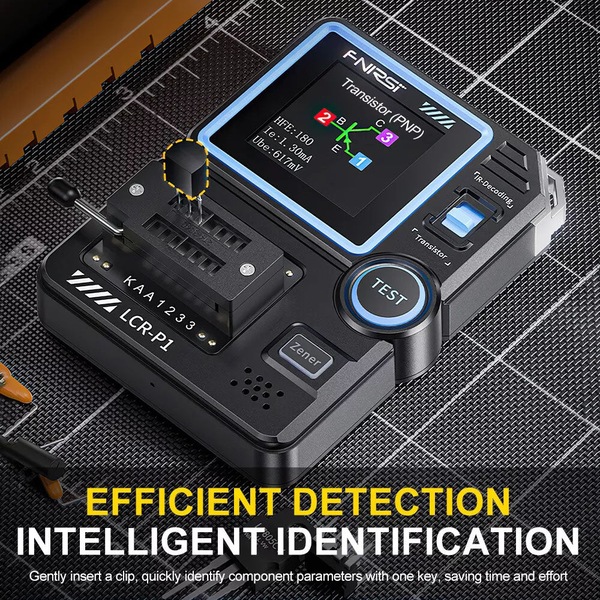

  • Smart & Efficient Auto Detection:
    Just plug in a component and press one button—the tester quickly identifies and displays key parameters for resistors, capacitors, inductors, and semiconductors.
  • Wide Application:
    Ideal for product development, appliance repair, electronics education, scientific research, and DIY electronics projects.

Specifications

  • Display: 1.44" LCD
  • Battery: Built-in 300mAh lithium battery
  • Charging Port: USB Type-C (5V/1A)
  • Technical Parameters
  • Triode:
  • Range: β (hFE) 10–600
  • Measures: hFE, Ube, Ic/le, ICEO, ICES, protection diode Uf
  • Diode:
  • Forward Voltage Drop: <4.5V
  • Measures: Vf, junction capacitance, reverse leakage current
  • Zener Diode:
  • Range: 0.01–4.5V, 0.01–32V
  • Measures: Forward voltage, reverse breakdown voltage
  • MOSFET / FET / IGBT:
  • Measures: Gate capacitance (Cg), drain current (Id), Vgs, Rds, Vt, protection diode Uf
  • SCR / Triac:
  • Turn-On Voltage: <5V
  • Gate Trigger Current: <6mA
  • Measures: Gate voltage

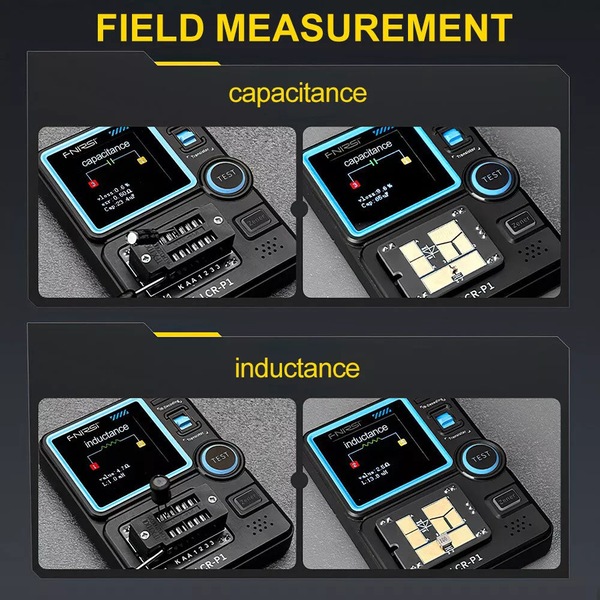

  • Capacitance:
  • Range: 25pF–100mF
  • Measures: Capacitance, ESR, Vloss
  • Resistance:
  • Range: 0.01Ω–50MΩ
  • Measures: Resistance value
  • Inductance:
  • Range: 10uH–1000uH
  • Measures: Inductance, DC resistance
  • Battery Test:
  • Voltage Range: 0.1–4.5V
  • Measures: Voltage, polarity
  • IR Remote Decoding:
  • Protocol: NEC
  • Displays: User code, data code, IR waveform

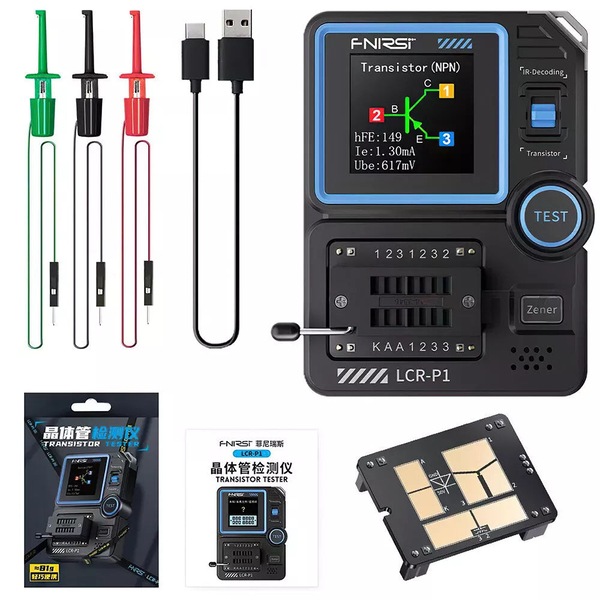

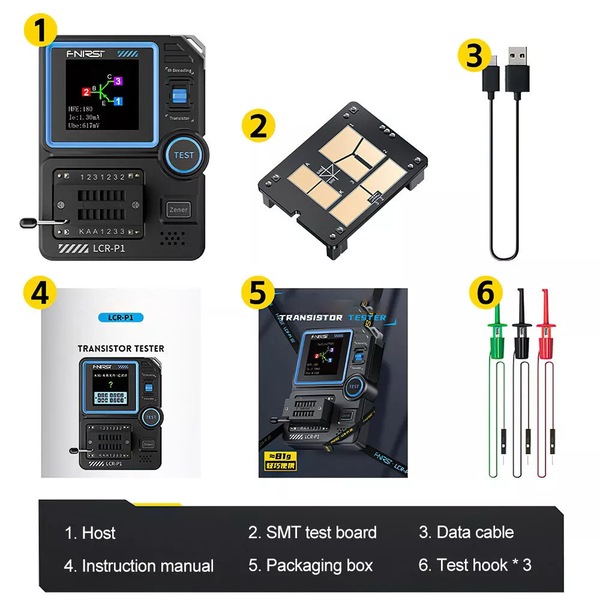

Package Contents

  • 1 ×  LCR-P1 Tester
  • 1 × Type-C USB Charging Cable
  • 1 × Instruction Manual
  • 1 × Test Plate
  • 3 × Test Hooks

SKU: DP12-0704-TTDT
