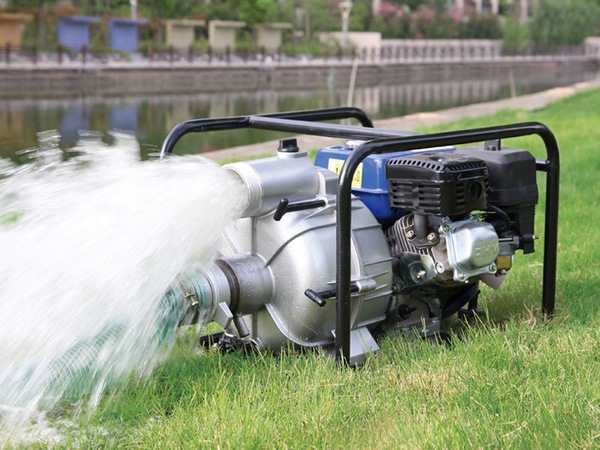

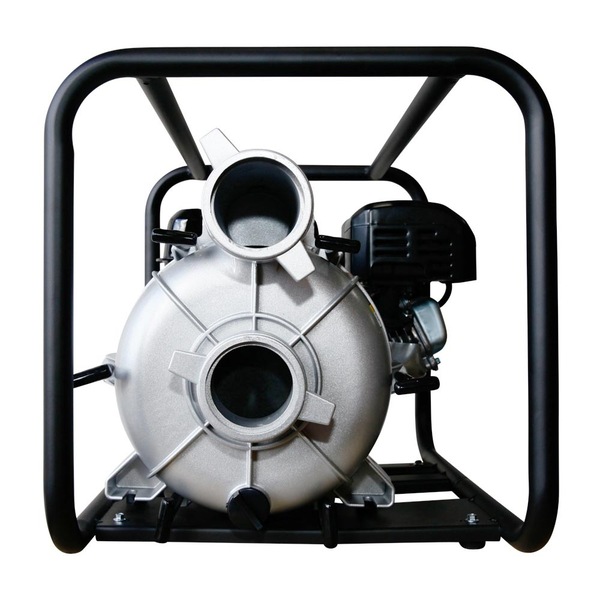

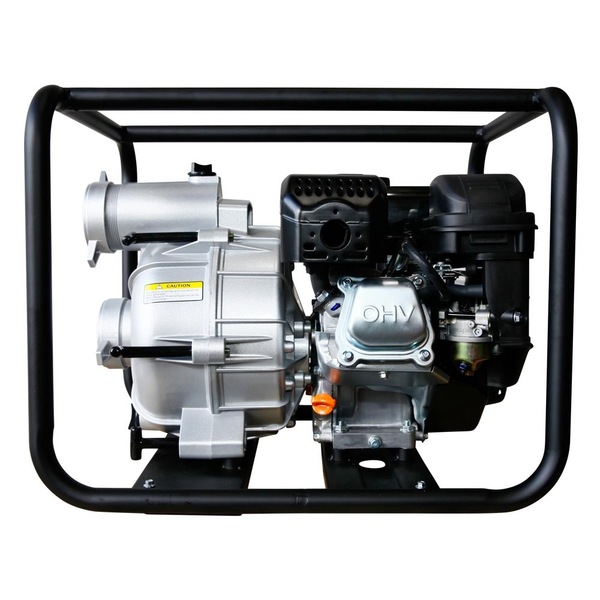

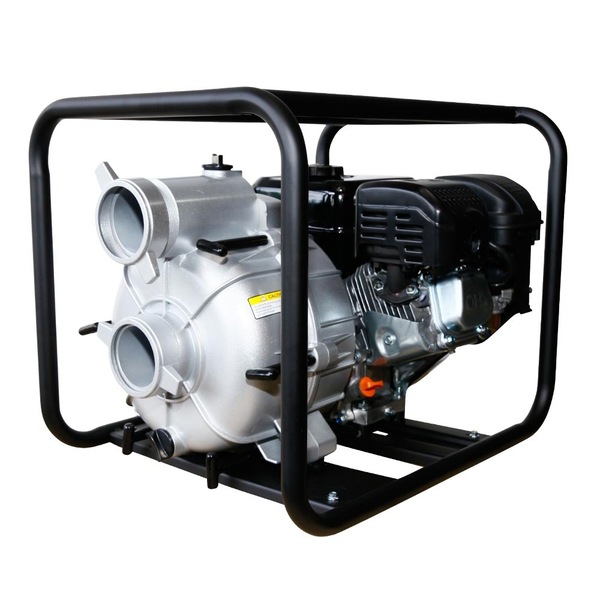

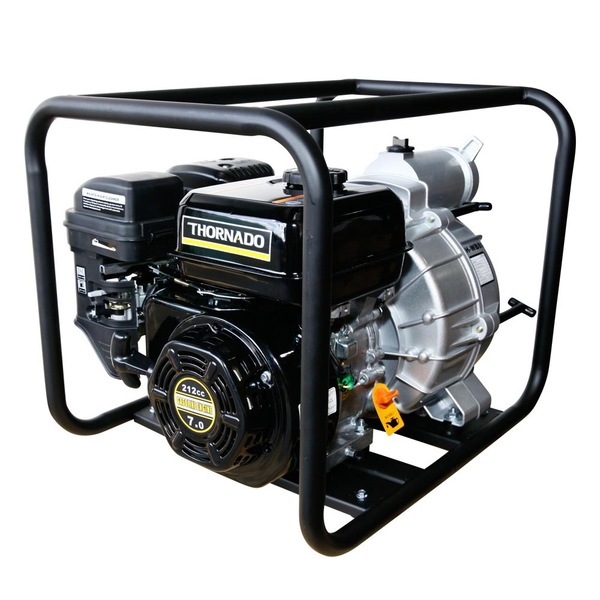

The THORNADO 3 inch trash pump is a compact self-priming engine that powered by a true commercial 7HP 4 Stroke engine. This pump has the ability to pump solids up to 30mm in size.
Don't risk your job and time with a cheap quality pump!
The Thornado 3 inch trash pump comes with special features that include easy maintenance wear plate, wear resistant silicon carbide mechanical seal for long life and abrasion resistance, easy impeller removal, marine grade aluminium pump housing and supplied ready to operate complete with suction strainer.
With a suction/discharge diameter of 80mm, or 3 inches, this water pump has a maximum delivery lift of 26m and a maximum water displacement rate of 1,100 litres per minute or 66,000 litres per hour. With the ability to draw water up to 7m in height, this pump is sure to be helpful to meet your demand for cleaning trash, sludge, and dewatering fluids with high solid content.
| SPECIFICATIONS | |
| Model No | TH-WB80 |
| Type | Self priming, Dirty Water Pump |
| Inlet Size | 3 inch |
| Outlet Size | 3 inch |
| Max Lift Head | 26m |
| Max Flow | 66,000 litres/hour |
| Max Suction Depth | 7m |
| Max Pressure | 37 PSI |
| Material | Alluminium alloy pump housing, cast iron impeller and diffuser |
| Engine | TH-070QR (7HP) |
| Engine Type | 4 stroke, air cooled |
| Max Power HP / Rpm | 7HP / 3600 Rpm |
| Displacement | 212cc |
| Fuel Type | Petrol |
| Oil Type | SAE10w-30 / SAE30 |
| Fuel Tank Capacity | 3.6L |
| Oil Capacity | 0.6L |
| Run Time Full Tank | 2.6h at ¾ load |
| Starting System | Recoil start |
| Product Length | 580mm |
| Product Width | 460mm |
| Product Height | 480mm |
| Product Weight | 40kg |
| In the Box | Hose fittings, hose clamps, intake strainer, user manual, |
| Pump | TH-WB80 |
| Max Flow Rate | 66,000 litres/hour |
| Max Suction Depth | 7m |
| Max Head Lift | 26m |

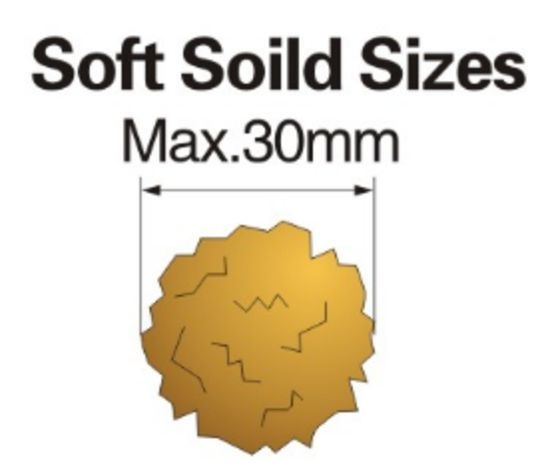

| Max Soft Solid Size | 30mm |
| Mechanical Seal | Silicon Carbide |
| Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
| Dimension (L, W, H) | 555 x 435 x 40 mm |
| Net Weight | 38kg |

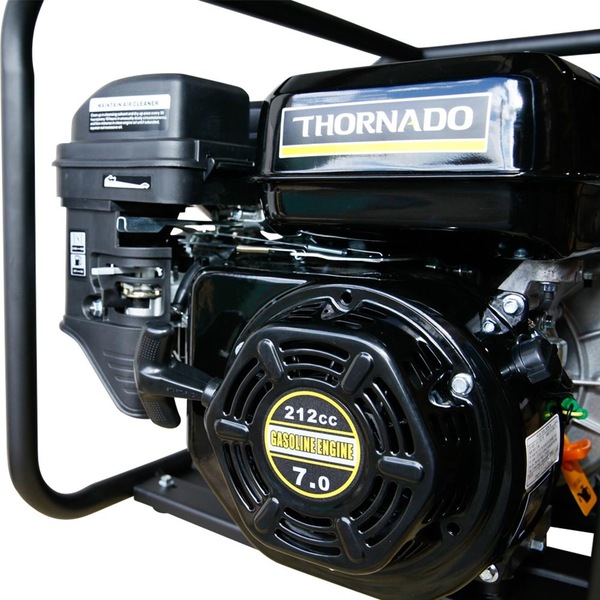

| ENGINE | |
| Displacement | 212cc |
| Engine Type | 4 Stroke OHV Air Cooled Engine |
| Engine Model | TH-070QR (7HP) |
| Certification | EPA phase III Compliant |
| Max Power HP / Rpm | 7HP / 3600 Rpm |
| Fuel Type | Unleaded Petrol |
| Fuel Tank Capacity | 3.6L |
| Oil Type | SAE10w-30 / SAE30 |
| Oil Capacity | 0.5L |
| Run time @50% Load | ~3 hr |
| Fuel Consumption | ≤ 395 (g/kw x h) |
| Bore x Stroke | 70 mm x 55 mm |
| Compression Ratio | 9.0 : 1 |
| Shaft Size | 19.05 mm |
| Keyway | 4.76 mm |
| Spark Plug Compatible | NGK® BP-6ES; Torch® F6TC |
| Spark Plug Gap | 0.69 - 0.7 9mm |
| Valve Clearance - Intake | 0.15 mm |
| Valve Clearance - Exhaust | 0.20 mm |
