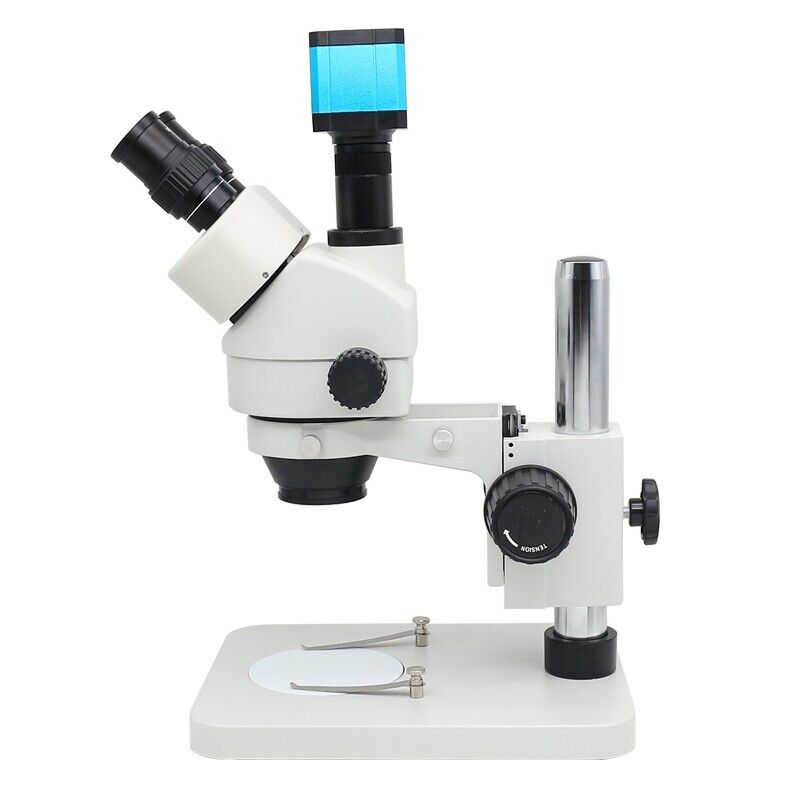

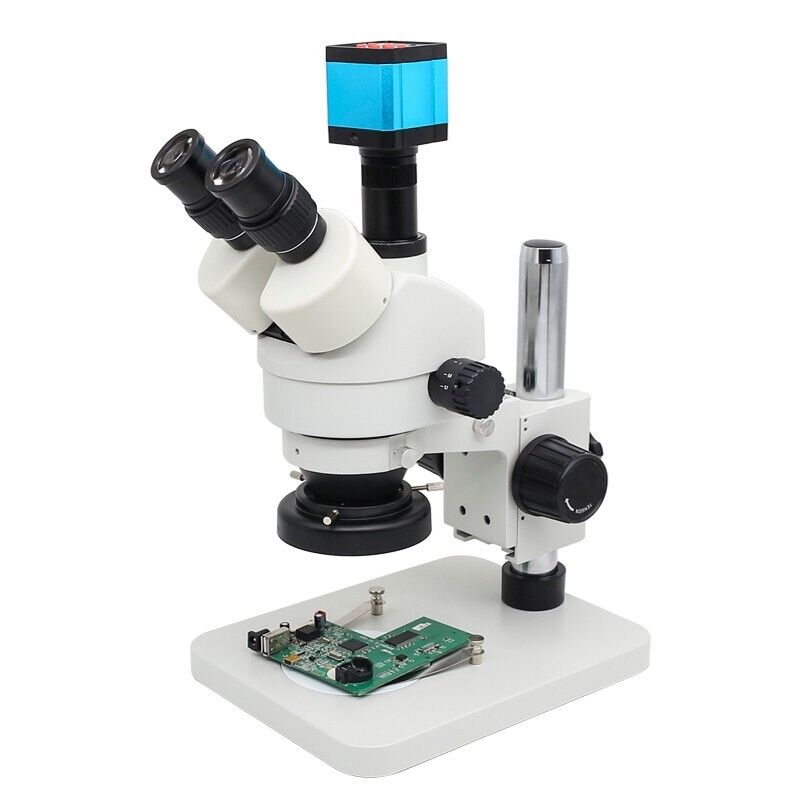

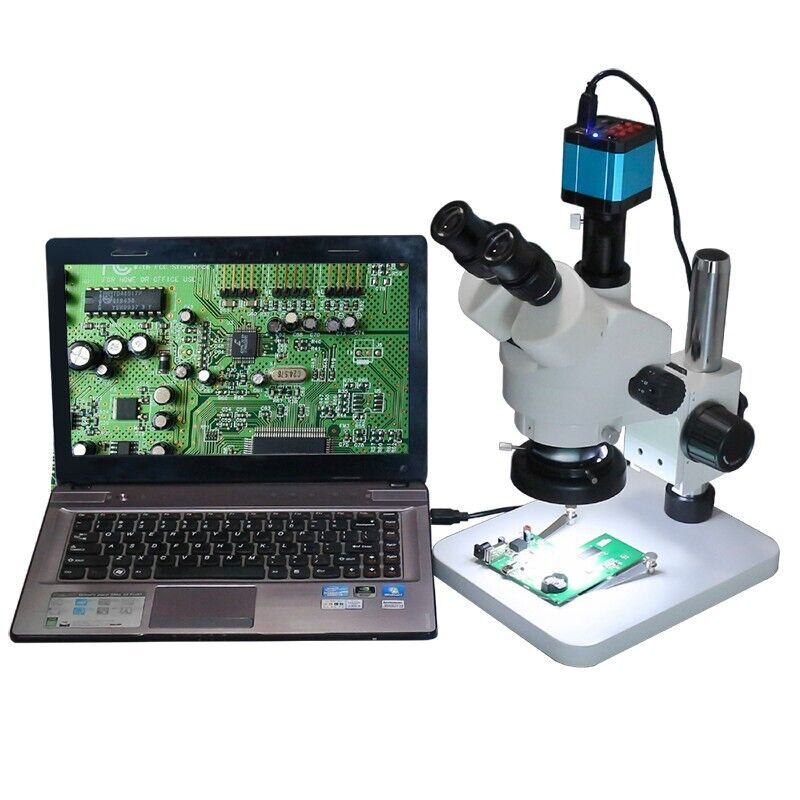

7X-45X Trinocular Illuminated Zoom Stereo Microscope 360 Degree Rotatable Trinocular Head for PCB Inspection Mobile Phone Repairing 100 mm Working Distance with LED Ring Light 14MP USB Digital Camera This series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance, clear resolved image, enclosure integrated. The microscope is used extensively in world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating and electronic component inspection.

Specification
Model: TXB2-D1-H
Wide Field Eyepiece: WF10X/20

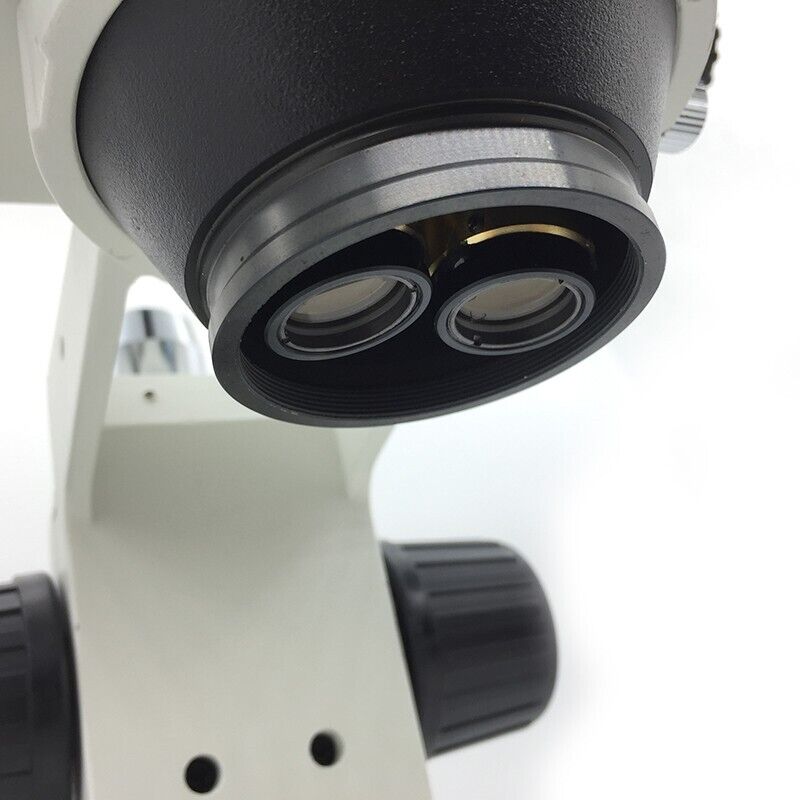

Objective Zoom Range: 0.7X-4.5X
Total Magnification: 7X-45X
Zoom Ratio: 1 : 6.4
Working Distance: 100 mm (3.94")

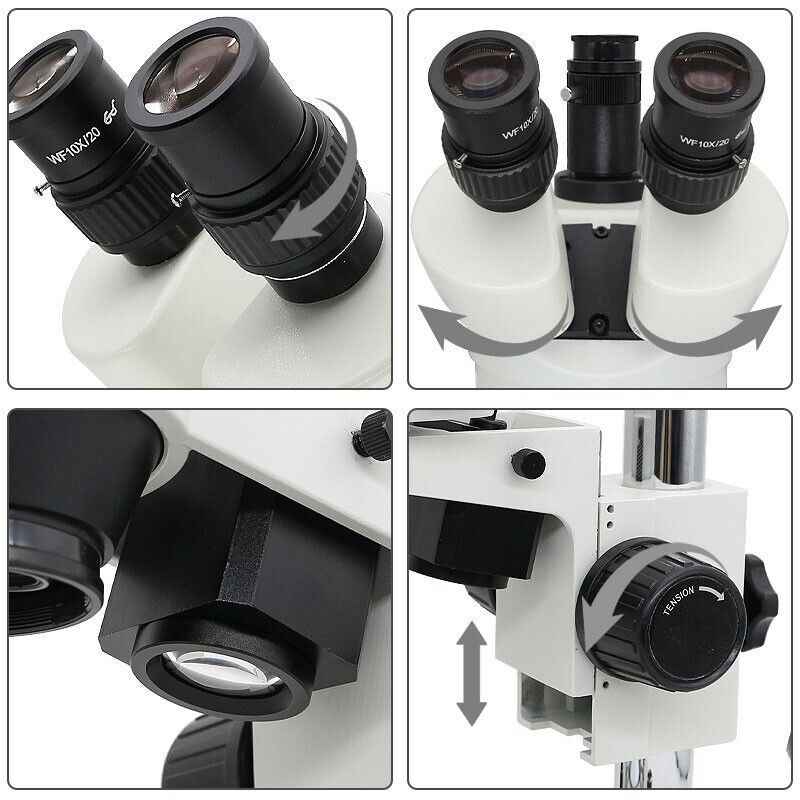

Articulated Free Trinocular Head
Diopter Adjustment: +/-5dp
Interpupillary Distance: 55-75 mm (2.17"-2.95"), 45 degree Inclined, 360 degree Rotatable
Stage: Pillar squareness base size 200 x 255 x 22mm, 95mm Black-white Reversible Stage Plate
Rack and Pinion Coarse Focusing Adjustable Mechanism

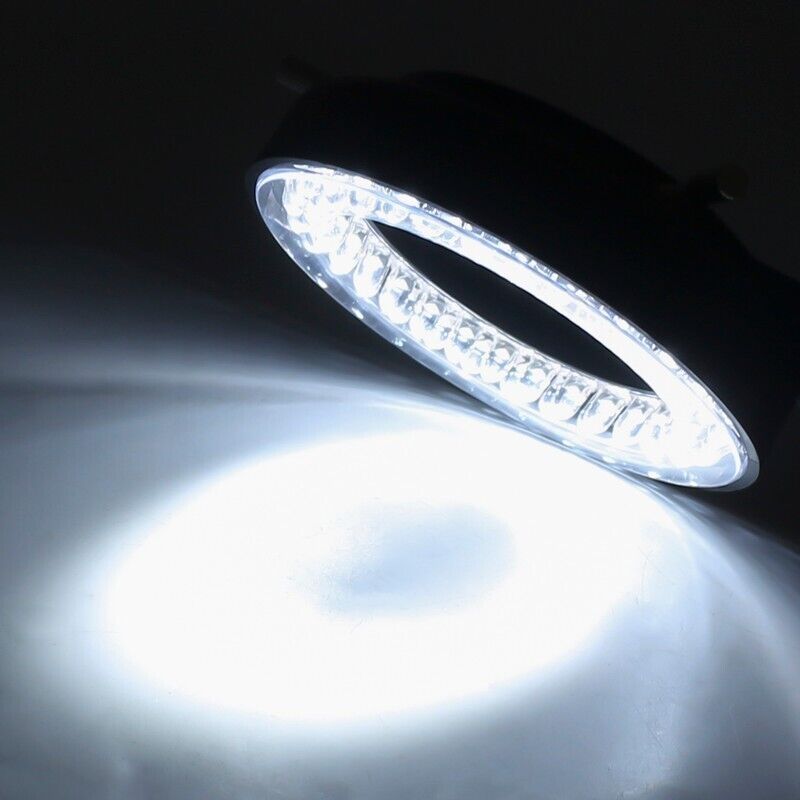

Illumination: LED Right Light (including 60 pieces LEDs)
Power Supply: 110V-230V

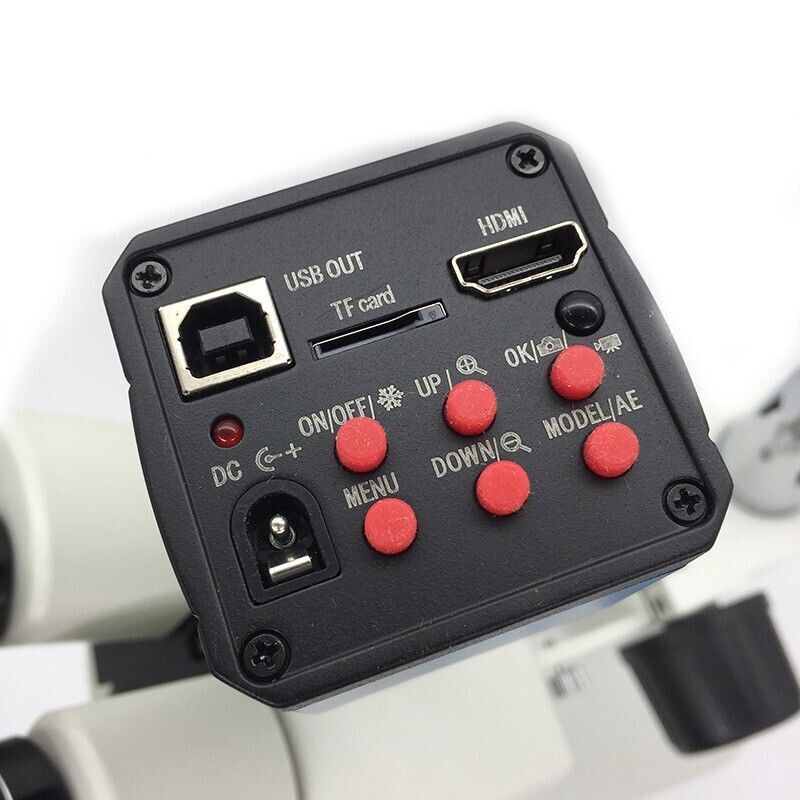

Camera Specification
Material: Metal Housing.
Image Sensor: 14 Megapixel Panasonic Sensor 1/2.3 inch
Effective Pixel: 14 Megapixel
Digital Magnification: 5 Times Digital Zoom
Image format: jpg
Image resolution: 4320x3240 for TF card
Video format: AVI
USB Video resolution: 1280 x 720
Frame Rate: 30fps
White Balance: Auto / Manual
Brightness: Auto / Manual
Color: R/G/B Adjustable.
Freeze: Supported
OSD: Supported.
SNR: Supported.
Film and Record: Supported.
Cross Cursor: Support Multi-color, Size Adjustable.
Transverse and Vertical Line: Support Multi-color, 4 Pcs of Transerse Lines / Vertical Lines, Moveable.
TF Card Interface: Max 32G Supported.
Interface: Standard Output (Type A)
USB Interface: Standard USB 2.0 Interface (Type B)

Package Including
One Stereo Microscope
One Pair of WF10X Eyepiece
One Pair of Eye-Cups
One LED Ring Light
One User's Manual for the Microscope
One 14MP USB2.0 Camera
One C-Mount Adapter
One Power Supply
One remote control
One USB Cable
One CD with Driver, Software and User's Instructions
