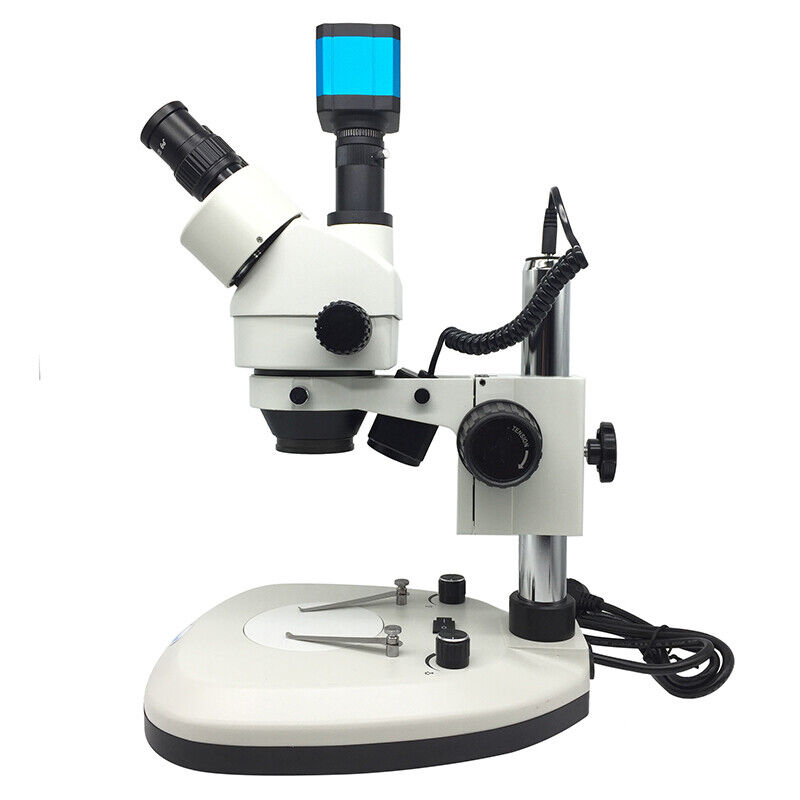

360 Degree Rotatable Trinocular Head for PCB Inspection Mobile Phone Repairing with Top Bottom LED Light WF10X/20mm Eyepiece 14MP USB Digital Camera

• Model: TXB2-D4-H
• Wide Field Eyepiece: WF10X/20
• Objective: 0.7X-4.5X zoom
• Total Magnification: 7X-45X zoom
• Zoom Ratio: 1 : 6.4
• Working Distance: 100 mm (3.94")
• Articulated Free Trinocular Head

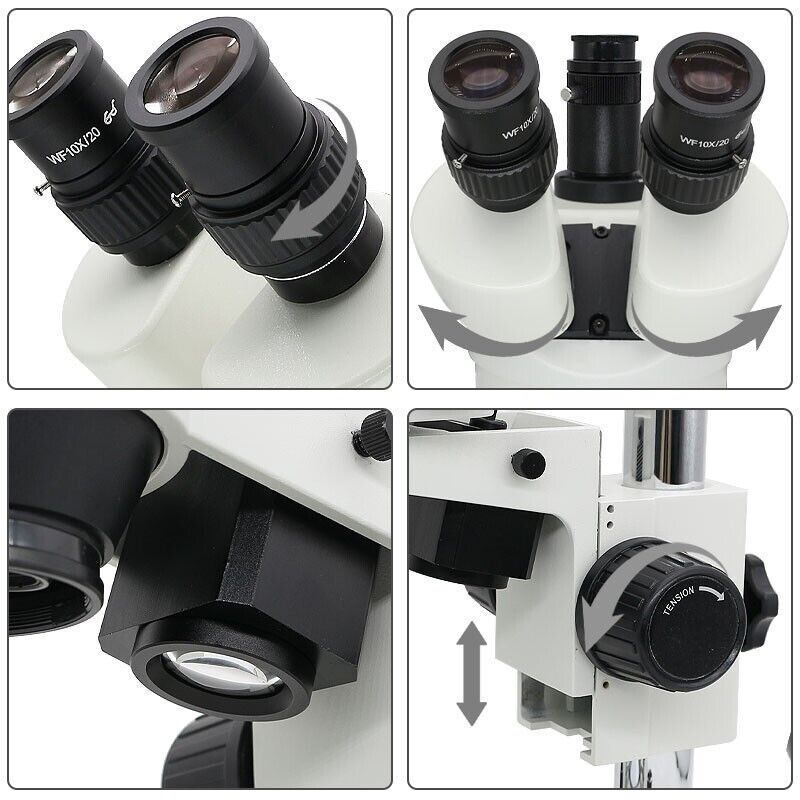

• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 55-75 mm (2.17"-2.95"), 45 degree Inclined, 360 degree Rotatable
• Stage: Pillar sector base size 285 x 238 mm, 95 mm Frosted Glass & Black-white Reversible Stage Plate
• Rack and Pinion Coarse Focusing Adjustable Mechanism

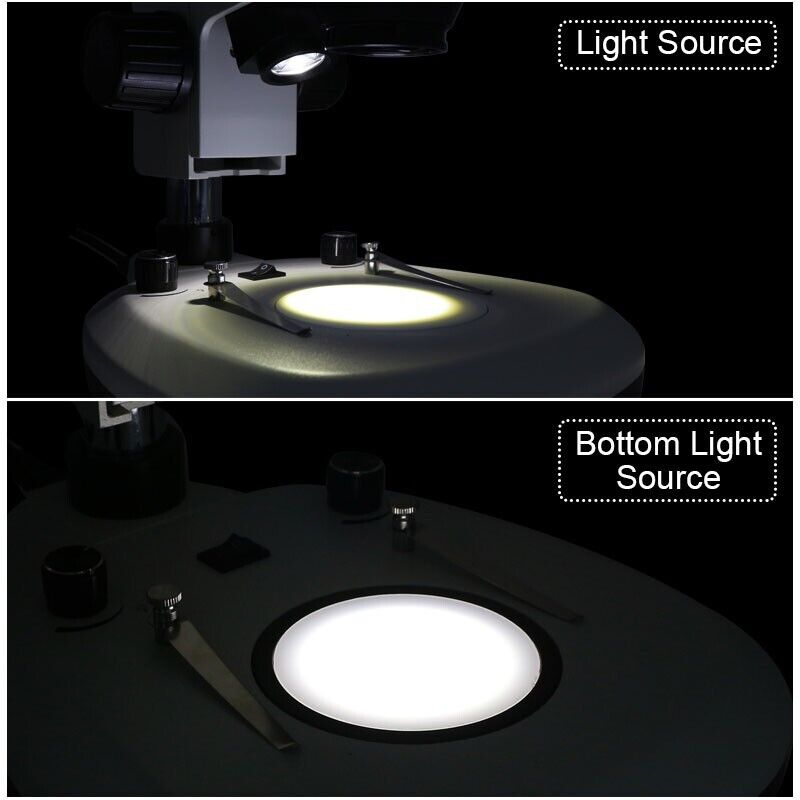

• Illumination: Top and Bottom LED Light
• Power Supply: 110V - 230V

• Material: Metal Housing

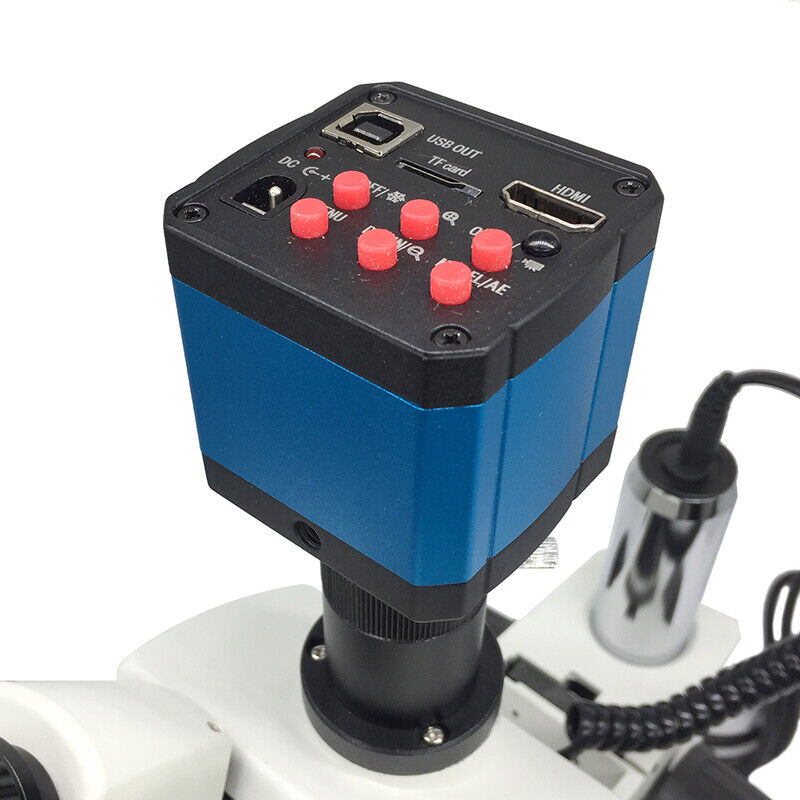

• Image Sensor: 14 Megapixel Panasonic Sensor 1/2.3 inch
• Effective Pixel: 14 Megapixel
• Digital Magnification: 5 Times Digital Zoom
• Image format: jpg
• Image resolution: 4320x3240 for TF card
• Video format: AVI
• USB Video resolution: 1280 x 720
• Frame Rate: 30fps
• White Balance: Auto / Manual
• Brightness: Auto / Manual
• Color: R/G/B Adjustable
• Freeze: Supported
• OSD: Supported
• SNR: Supported
• Film and Record: Supported
• Cross Cursor: Support Multi-color, Size Adjustable
• Transverse and Vertical Line: Support Multi-color, 4 Pcs of Transerse Lines / Vertical Lines, Moveable
• TF Card Interface: Max 32G Supported
• Interface: Standard Output (Type A)
• USB Interface: Standard USB 2.0 Interface (Type B)

• 7X-45X super wide zoom magnification power
• High resolution with great flatness and contrast, giving sharp and clear images

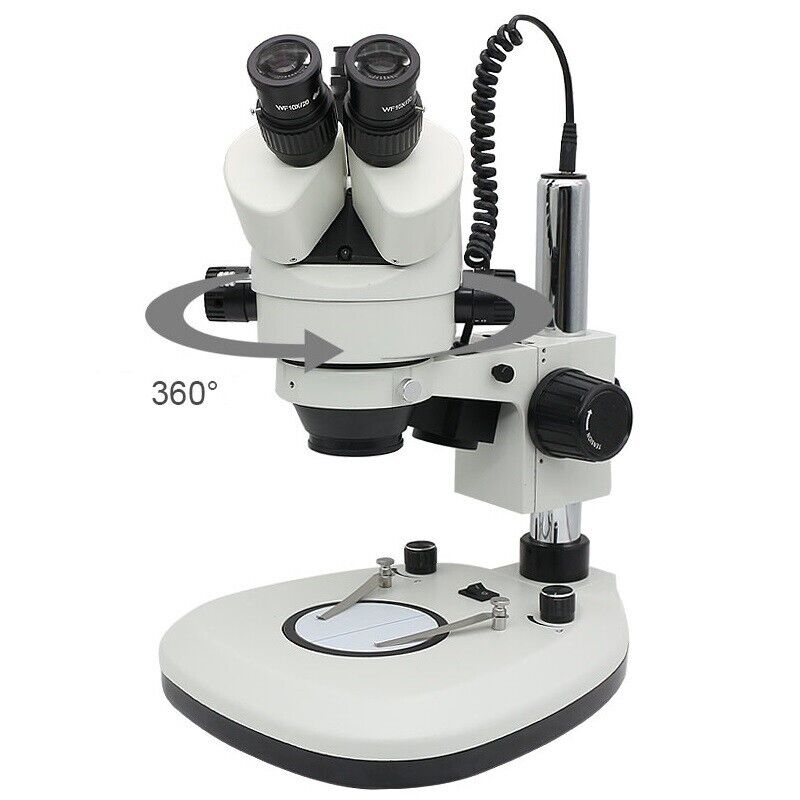

• Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
• Widefield eyepieces with 20 mm field of view
• Large working distance 100 mm
• Full optical glass elements
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance
• Rubber eye-guards included

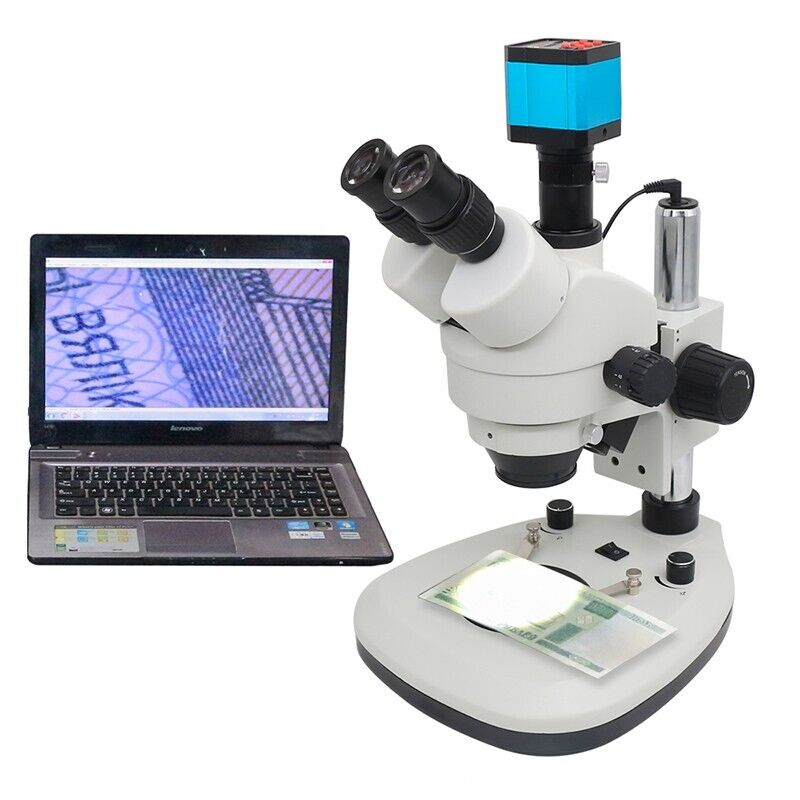

• 14MP USB Camera Included

This series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance, clear resolved image, enclosure integrated. The microscope is used extensively in world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating and electronic component inspection.

• a set of microscope TXB2-D4
• a pair of WF10X High Eye-point eyepieces
• a pair of eye-cups
• a dust cover
• a 14MP USB2.0 Digital Camera
• a USB cable
• a power Supply
• a remote control
• a 1X C-Mount Lens
