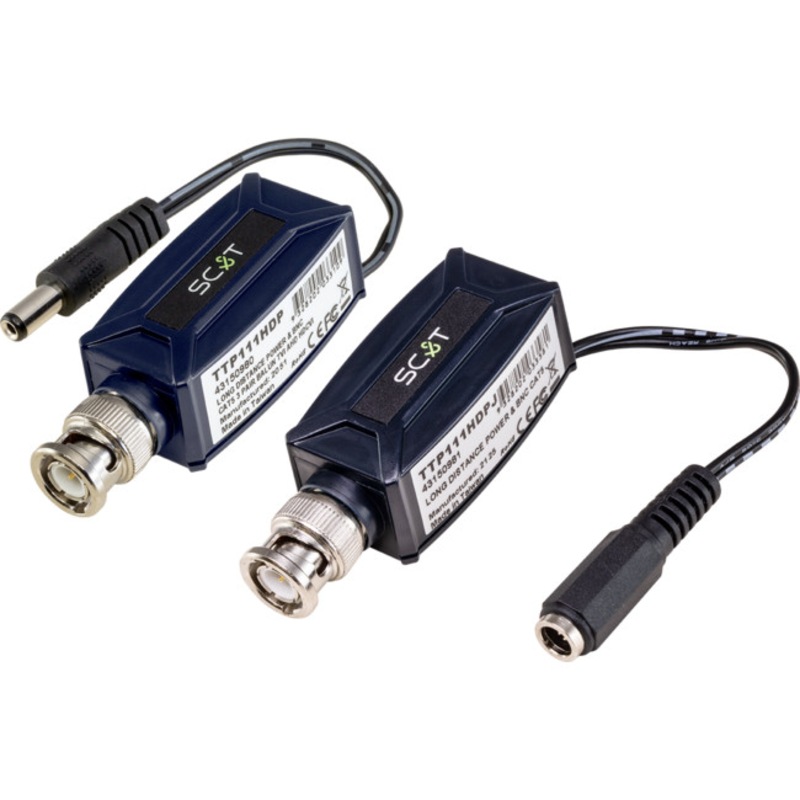

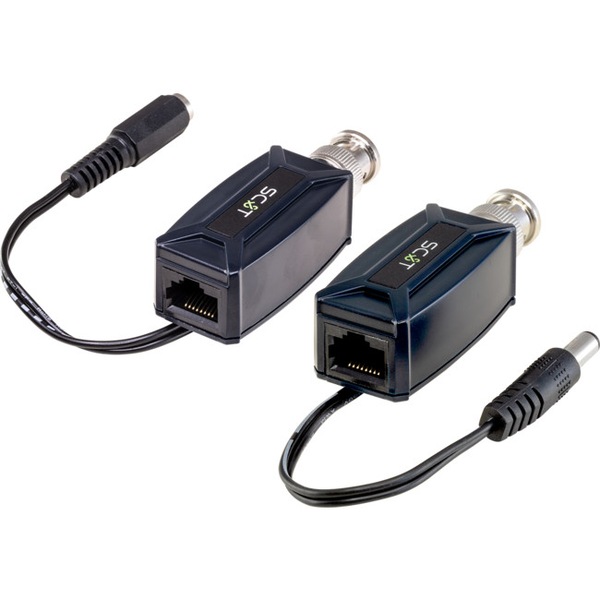

TTP111HDPK Video Power Cat5 Transceiver Tvi AHD Cvi Cvbs Balun Long

Image 1
Image 2
Limited Stock
$24.95

Collect 24 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Pay in 4 interest-free payments of $6.24 with Learn More
Features
  • Transmit HD-TVI/AHD/HDCVI/CVBS video and power(3 pairs)over one CAT5ecable.
  • Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack.
  • Eliminate coaxial & power cable.
  • Fast, easy installation, saving time and money.
  • Substantial saving on the cost of the cable itself.
  • Built-in ESD, EFT(impulse noise), and transient protection
  • Transmission distance: 1080P: HD-TVI 250M, AHD 250M, HDCVI300M
    4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M CVBS: 400M
Specifications

ITEMNO.

TTP111HDP

TTP111HDPJ

Video Input / Output Terminals

BNC x 1 (1 Vp-p,75 Ohm)

Video Onput / Iutput Terminals

RJ45 x 1 ( 100 Ohm )

Power

DC-PLUG

DC-JACK

Bandwidth

50Hz ~ 60MHz ( -3dB )

Transmission Distance

1080P: HD-TVI 250M, AHD 250M, HDCVI300M
4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M
CVBS: 400M

ESD protection

30 KV(Air),15 KV (Contact) ; IEC 61000-4-2 compliant

EFT protection

40A(5/50ns) ; IEC 61000-4-4 compliant

Lightning protection

2A (8/20µs) ; IEC 61000-4-5 compliant

Surge Protection Attack Time

< 1 nS

Environmental Specifications

Operation: 0 to 55°C, Storage: -20 to 85°C, Humidity: up to 95%

Dimension mm

69 x 25 x 20.7 + 140mm power cord

Weight g

37 g

_


Weight: 0.084
