[TUF GAMING B650EM-E WIFI] Asus TUF GAMING B650EM E WIFI AMD Micro-ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$284.51

Collect 284 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

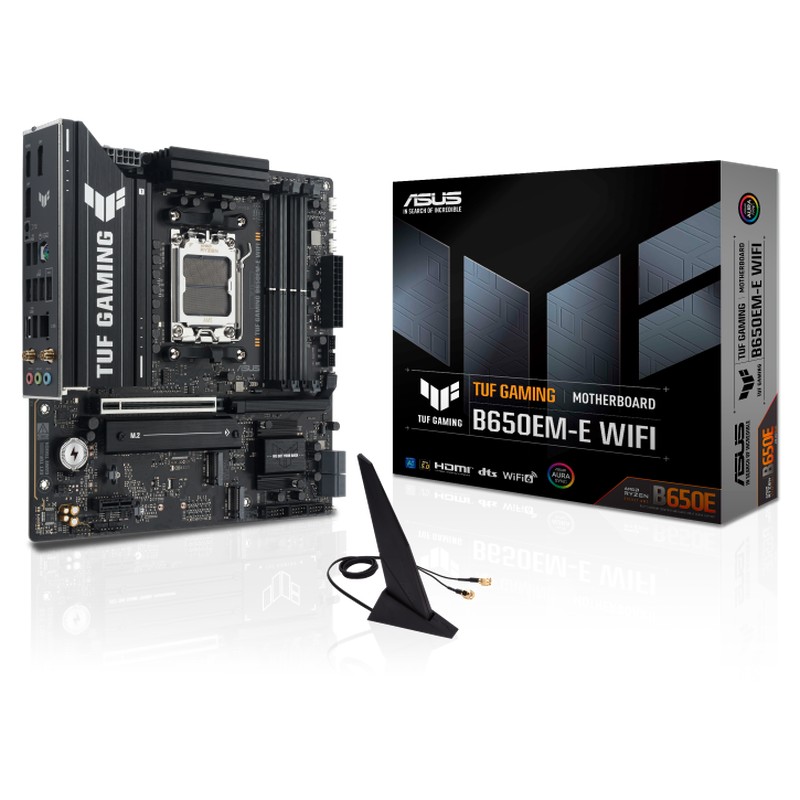

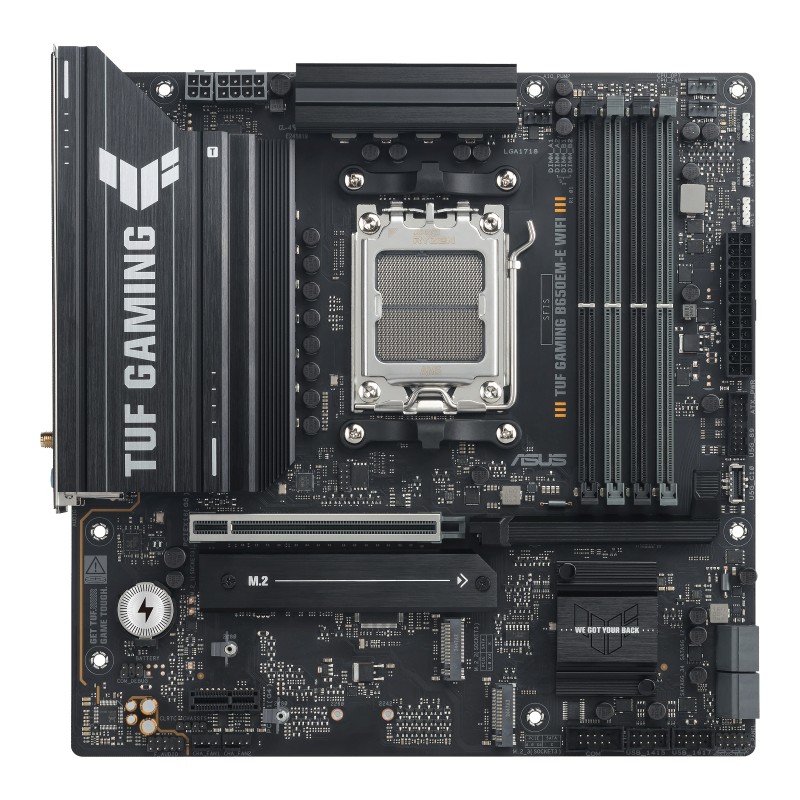

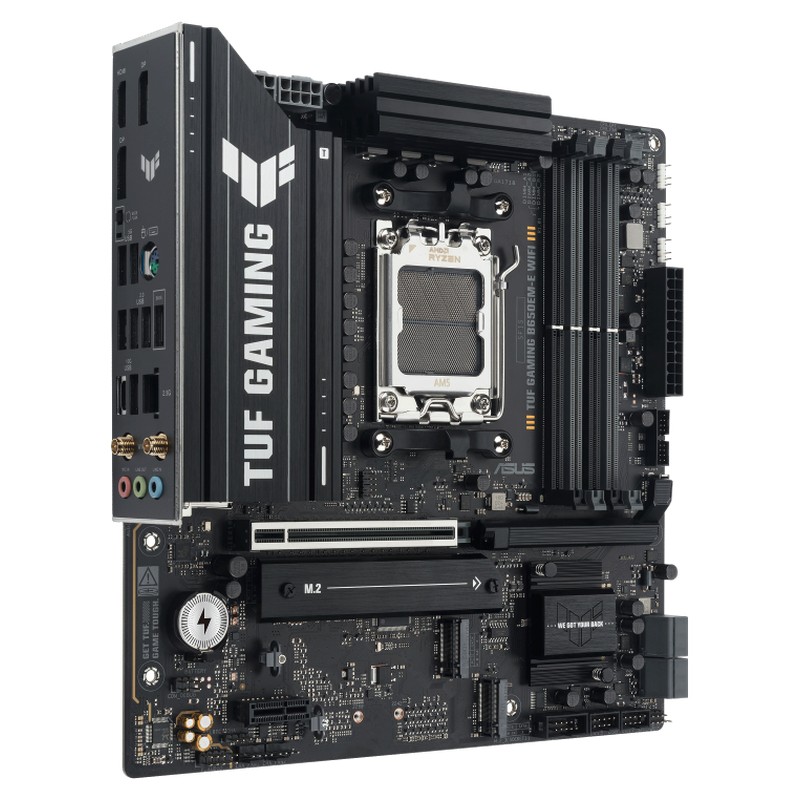

Asus TUF GAMING B650EM E WIFI AMD Micro-ATX Motherboard

Asus TUF GAMING B650EM-E WIFI - ASUS TUF GAMING B650EM-E WIFI: Experience top-tier AMD Ryzen performance with military-grade components, PCIe 5.0, DDR5, and WiFi 6.

Features:
  • 8(80A)+2(80A)+1(80A) power stages with enlarged VRM heatsinks
  • PCIe 5.0 for M.2 storage
  • DDR5 memory module support
  • USB 10Gbps Type-C and a front- panel USB 5Gbps Type-C port
  • 2.5 Gb Ethernet
  • WiFi 6
  • Two-Way AI Noise Cancelation
Specifications:
  • Model :TUF GAMING B650EM-E WIFI
  • CPU :AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to Official Asus Website for CPU support list.
  • Chipset :AMD B650 Chipset
  • Memory :4 x DIMM slots, Max. 256GB, DDR5
    Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :2 x DisplayPort**
    1 x HDMI port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :AMD Ryzen 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot**
    AMD Ryzen 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
    AMD B650 Chipset
    1 x PCIe 4.0 x1 slot
    * Please check the PCIe bifurcation table on the support site .
    ** Specifications vary by CPU types.
    - To ensure compatibility of the device installed, please refer to https:// Official Asus Website / for the list of supported peripherals.
  • Storage :Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
    AMD Ryzen 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    AMD RAIDXpert2 Technology
    Ryzen 9000 Series Processors: RAID 0/1/5/10
    Ryzen 8000 Series Processors: RAID 0/1
    Ryzen 7000 Series Processors: RAID 0/1/10
    * Specifications vary by CPU types.
  • Ethernet :1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
  • Wireless & Bluetooth :Wi-Fi 6
    1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 8 ports)
    2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 5Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

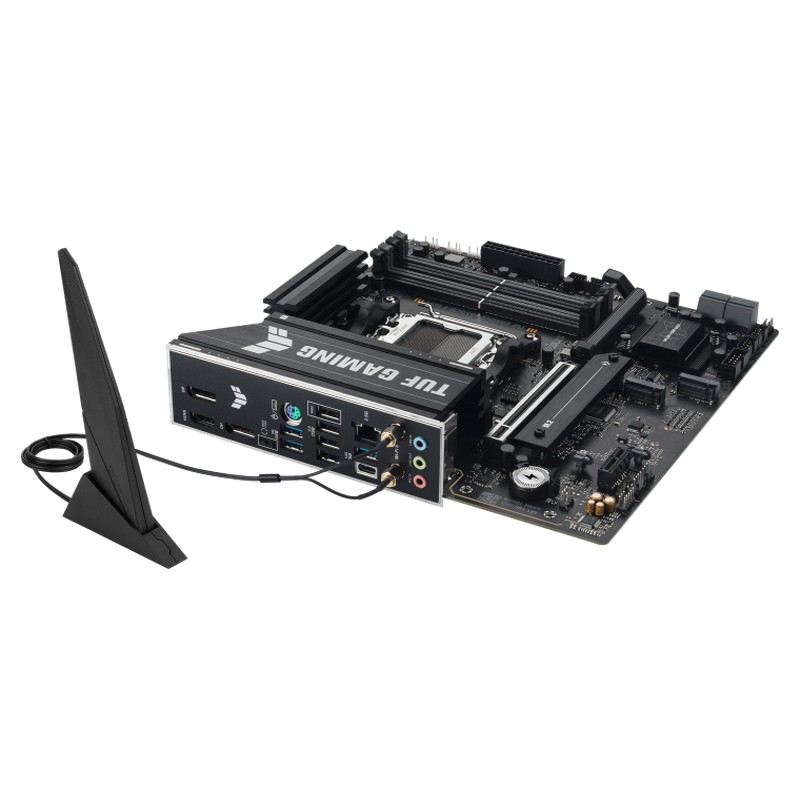

  • Back Panel I/O Ports :2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    2 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack button
    1 x PS/2 keyboard/mouse combo port
  • Internal I/O Connectors :Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V CPU Power connector
    1 x 4-pin +12V CPU Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable RGB Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x 10-1 pin Front Panel System header
    1 x Chassis Intrusion header
  • Special Features :ASUS TUF PROTECTION
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    - ProCool
    - Pre-mounted I/O shield
    - SafeDIMM
    Aura Sync
    - Addressable RGB Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    AI Suite 3
    - DIGI+ VRM
    - Two-Way AI Noise Cancelation
    ASUS DriverHub
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton 360 for Gamers(60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE

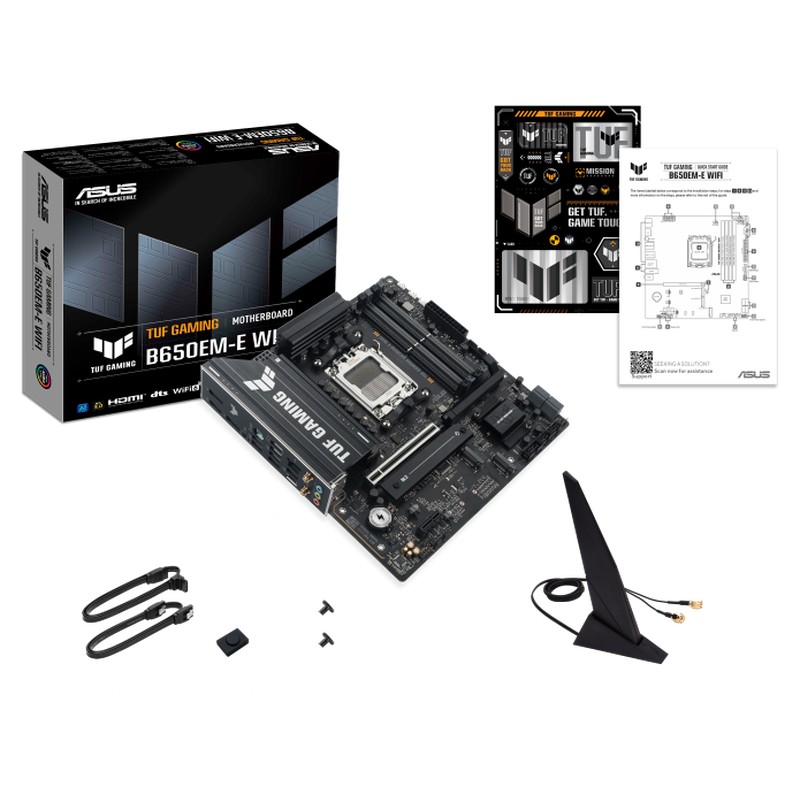

  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x TUF Gaming sticker
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x Quick start guide
  • Operating System :Windows 11, Windows 10 64-bit
  • Form Factor :micro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

GTIN: 906425130905
