• OEM specs coincidence to ensure the perfect fitment to the related parts
• Material qualification for durable and reliable use
• Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit
• Accuracy producing on all procedures to reduce possible metallic contacts under different condition
• Large range of turbochargers for easily locate the turbo with the target horsepower and size you need from us
• Quality fully guaranteed and professional installation highly recommended

• Pick up service is not available.
• It's an upgraded Turbo for advanced drivers. MXR TD05 20G Turbo customizes a unique specification that replaces the TD04 for a TD05H turbine wheel. Furthermore, MXR also enlarges the turbine housing area to 7 square cm to improve the exhaust efficiency, so expect to gain more power than stock turbo.
• All for WRX Wagon engines and automatic sedan engines came with a TD04, all manual for WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification (connections, bolts, fixed screws etc.) is required.

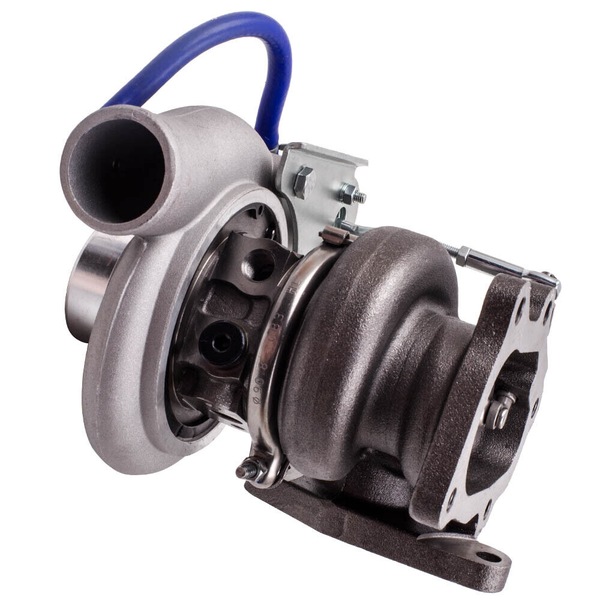

TD05 20G Upgraded Turbo For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006

• Exhaust Outlet Flange: 5-Bolt Flange
• Exhaust Inlet Flange: 3-Bolts Flange
• Turbine Side: Turbine Trim: 76.4
• Turbine Housing: 7cm²
• Turbine Inducer Diameter: 56mm
• Turbine Exducer Diameter: 48.96mm
• Compressor Side: Compressor Trim: 59.8
• Compressor Inducer Diameter: 52.6mm
• Compressor Exducer Diameter: 67.9mm
• Compressor Housing Inlet OD: 57.8mm
• Oil Inlet: M10*1.5
• Oil Outlet: M15 & 2*M6H
• Water: M14*1.5
• Turbine housing: 7cm²
• Compressor housing inlet OD: 57.8mm, ID: 53.62mm
• Compressor housing outlet OD: 51.2mm, ID: 41.2mm
• Bearing Type: Wet Float/Journal Bearing
• Cooling Type: Water + Oil cooled
• Wastegate: With Wastegate
• Turbo Model: TD05 20G
• Thrust Bearing: 270 degree
• Horsepower: Up to 380 HP
• Turbo Type: Individual
• Universal Fitment: No
• Finish: Matte
• Condition: Brand New
• Package Size: 30 x 28 x 24 cm
• Package Weight: 7650g

• Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃
• Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
• Compressor housing: ZL104 aluminum
• Cast aluminium blades with good gas tightness and corrosion resistance
• MAX HP: 420 HP
• 100% BALANCING TEST: VSR machine technology

• Please check the specifications carefully before buying. If you are not sure about this information, please feel free to contact us.
• All for WRX Wagon engines and automatic sedan engines came with a TD04, all manuals for WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.
• It's a direct bolt-on so nothing else would be required. But, to get its full potential you'd need some additional upgrades. Intake, exhaust, more fuel, etc. it will also require custom tuning.
• Professional installation is highly recommended (No Instruction Included).
