Protect your car, boat or caravan from wind, rain or snow with a Luxi Living Carport.

Constructed using a combination of solid polycarbonate panels and powder-coated aluminium, it is a sturdy and stable structure. While the robust aluminium frame can withstand all weather conditions, ensuring your carport will last you for years to come.

The Luxi Living Cantilever Carport is the ideal solution for protecting your vehicle at home or the office, or even providing much needed shade over the pool or BBQ. Securely mount to a concrete drive or patio - you can even fix multiple carports together to create a larger covered space.

NB: If you need ENGINEERING STRUCTURAL DRAWINGS in your area, please contact sales and we will provide you with a solution.

Features:

• Stylish free-standing cantilever design
• Protect your car, caravan, boat or BBQ area
• Strong and durable in harsh weather conditions
• Wind resistance: up to 142.56 km/h (wind level 13)
• Snow resistance: up to 94.8 kg/㎡ (31cm snow thickness)
• Highly effective UV resistant material
• Thermal insulated to reduce heat
• Water, wind, corrosion and fade resistant feature
• Inbuilt gutters direct water flow to help keep the area below dry
• Join multiple carports together to create a larger parking space
• Use as an additional covered parking space or as a patio/balcony cover
• Easy to install

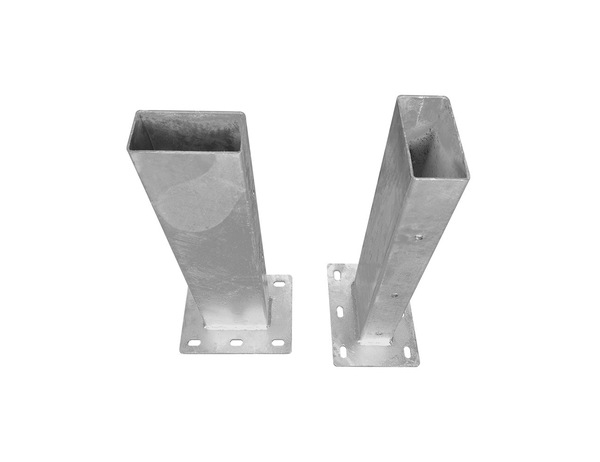

NB: All our carports come with a base—rest assured when purchasing.

Specifications:

• Color Options 1: Dark Grey (RAL7016) (Aluminum frame) + Dark Grey/Light Grey (Polycarbonate panel)

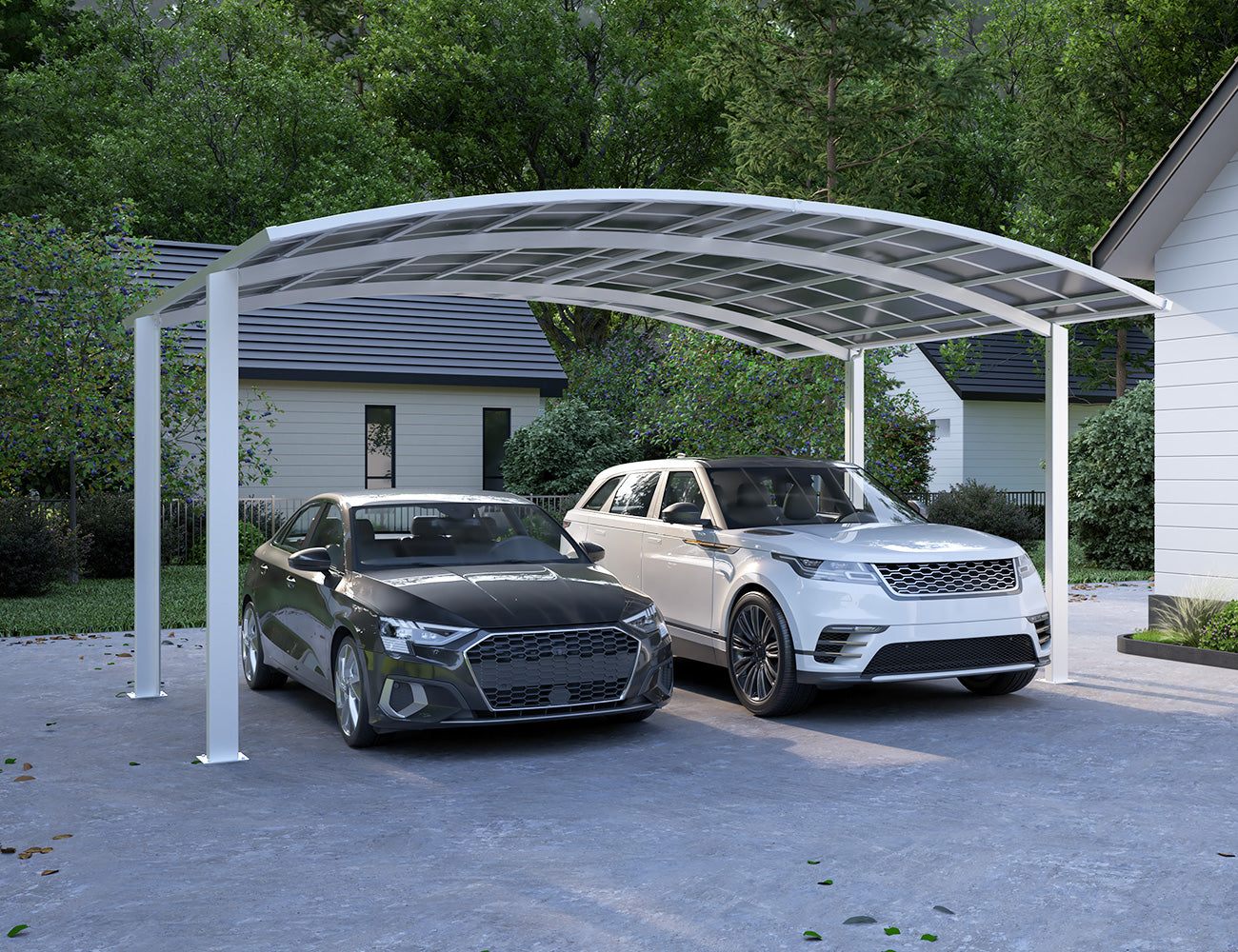

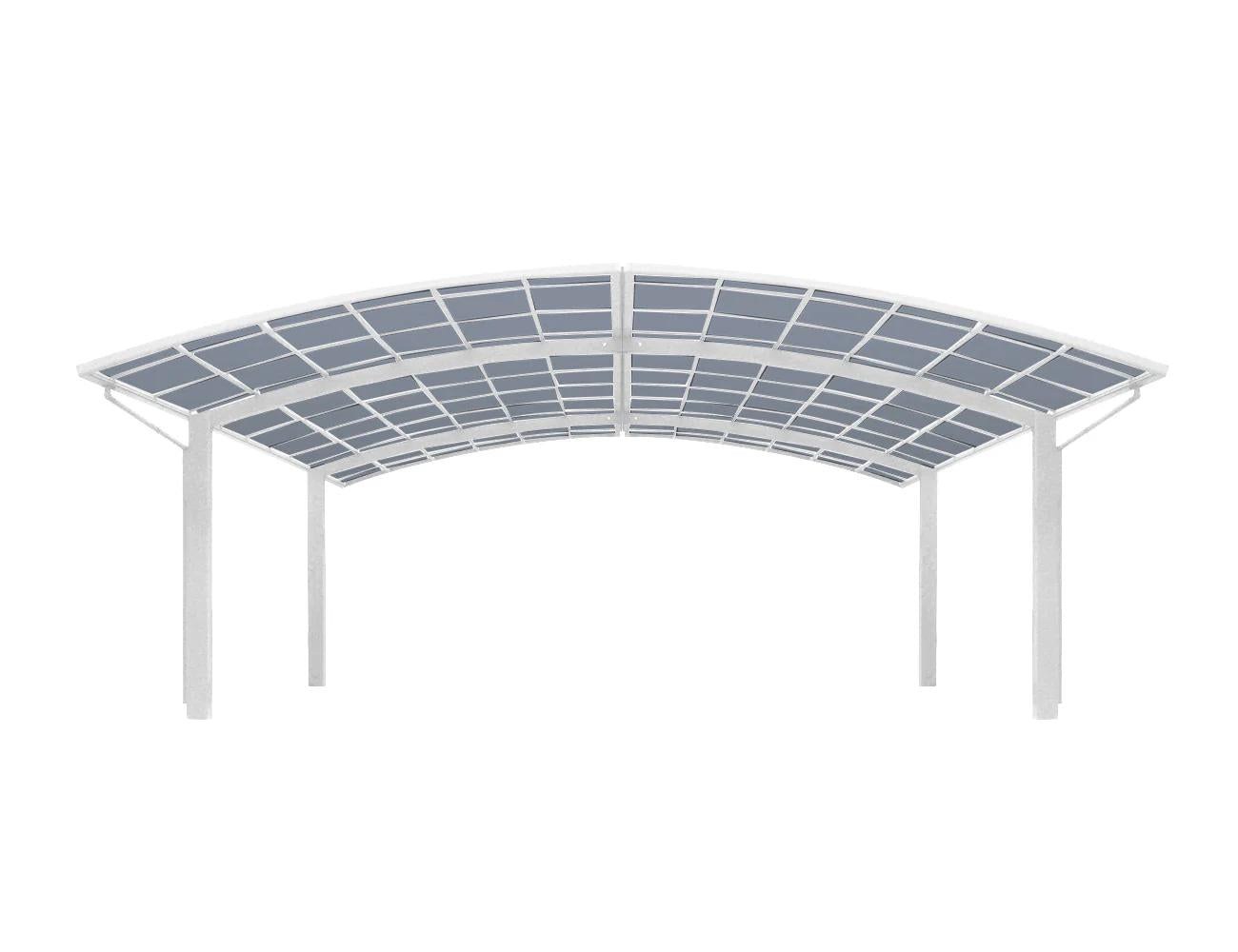

• Color Options 2: White (RAL9016) (Aluminum frame) + Dark Grey/Light Grey (Polycarbonate panel)

• Color Options 3: Black (RAL9005) (Aluminum frame) + Dark Grey (Polycarbonate panel)
• Material: Powder-coated Aluminium Alloy Frame, 2mm Bayer PC Polycarbonate Sheets for Roof Panel

Material:
Frame Material: Powder Coated Aluminium Alloy
Roof Panel Material: 2mmBayerPC Polycarbonate Sheets

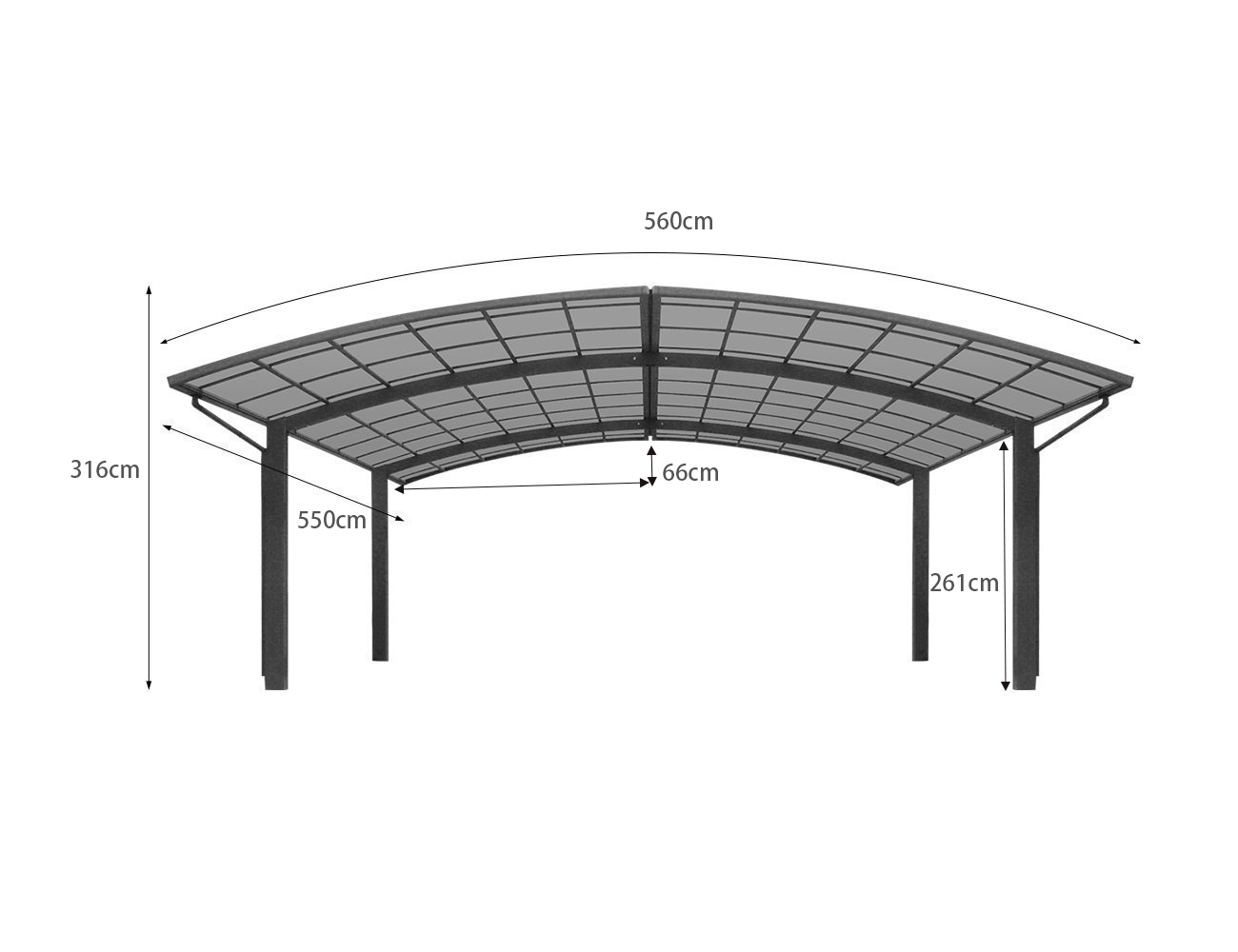

Product Dimensions (L x W x H): 560x 550 x 316cm (UsingCarport Base Plates）
Product Dimensions (L x W x H): 560x 550 x 265cm (Embedded installation）
Aluminium Frame Dimensions -
Post:162*88（thickness：2.6-4.0mm)
Roof Beam:116*65*2.5mm
Post height: 261cm

Packages: 12 cartons/set

• Package Dimensions (L x W x H):

  Package 1 Dimensions (L x W x H): 2873*375*195mm 37kg
  Package 2 Dimensions (L x W x H): 5503*290*175mm 55kg
  Package 3 Dimensions (L x W x H): 818*587*95mm 21.5kg
  Package 4 Dimensions (L x W x H): 661*320*295mm 21kg
  Package 5 Dimensions (L x W x H): 540*540*685mm 44kg
  Package 6 Dimensions (L x W x H): 2873*375*195mm 37kg
  Package 7 Dimensions (L x W x H): 5503*290*175mm 55kg
  Package 8 Dimensions (L x W x H): 818*587*95mm 21.5kg
  Package 9 Dimensions (L x W x H): 661*320*295mm 21kg
  Package 10 Dimensions (L x W x H): 540*540*685mm 44kg
  Package 11 Dimensions (L x W x H): 5488*150*110mm 44kg
  Package 12 Dimensions (L x W x H): 370*210*250mm 4.5kg


• Gross Weight: 405.5kg

Package Material: Honeycomb Carton
10-year warranty on the aluminium frame
10-year warranty on polycarbonate roof sheets

Package Contents:

1x Cantilever Carport *2pc
1x Instruction Manual

Polycarbonate Sheet Color:
