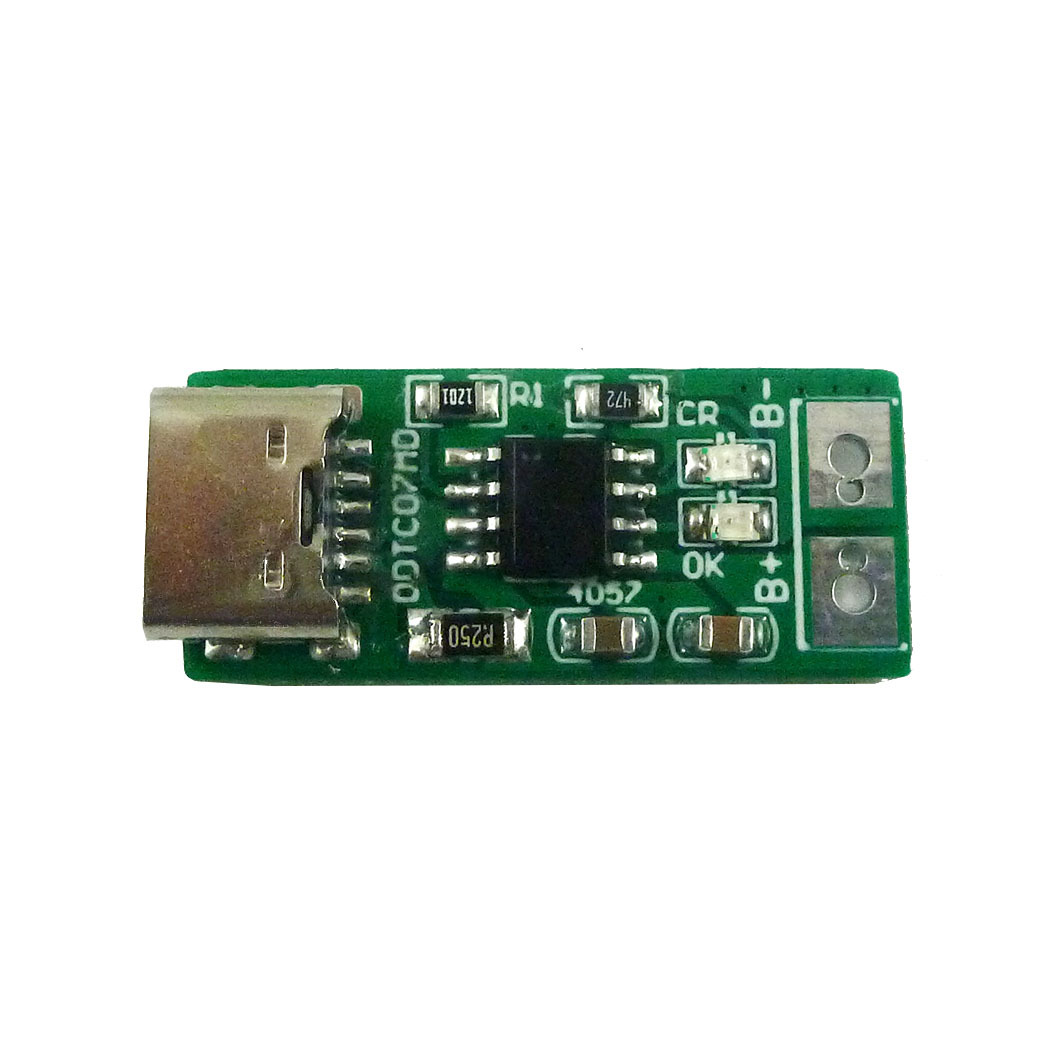

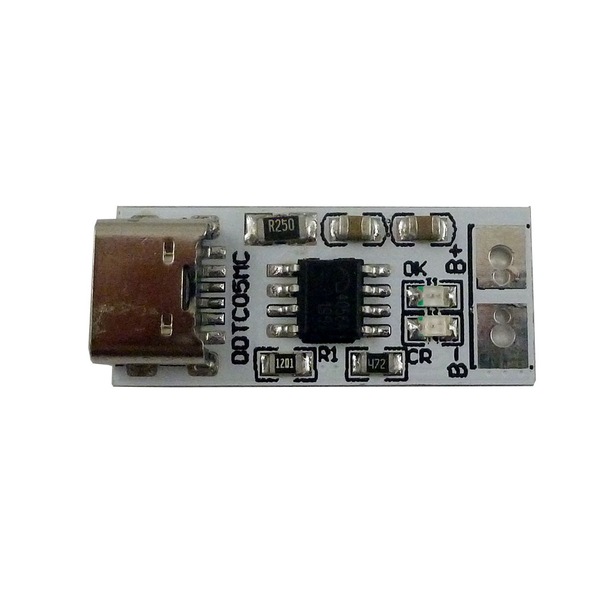

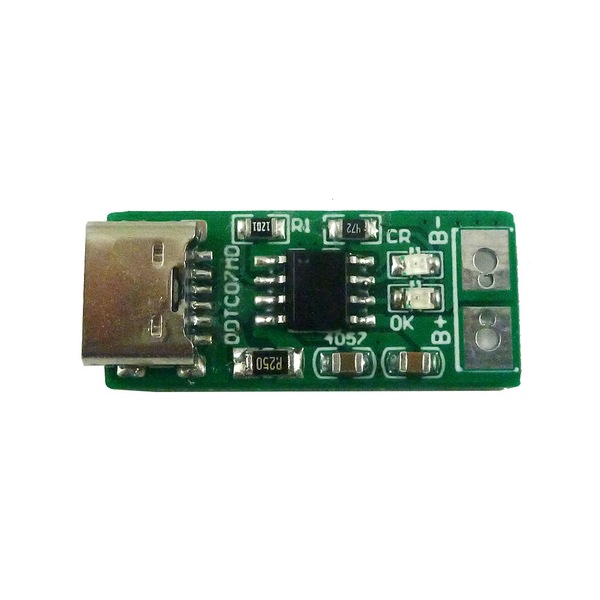

Type-C USB 5V to 4.2V Li-ion Li-Po Lithium Battery Charger Module

Type-C USB 5V to 4.2V Li-ion Li-Po Lithium Battery Charger Module

Be the first to review this product

Price	$24.21
	Earn 3x points and collect 72 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code UMYBF

Quantity

Add to wishlist

Description:

Lithium Ion Battery Charger for Type-C
Power supply: DC 5V/>=1A

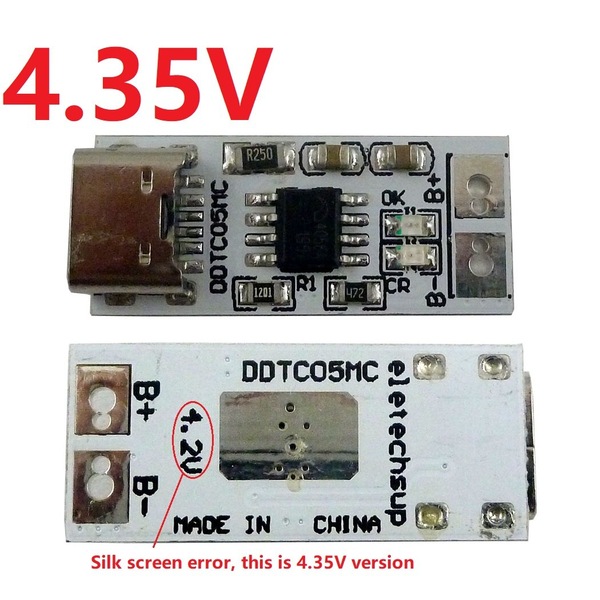

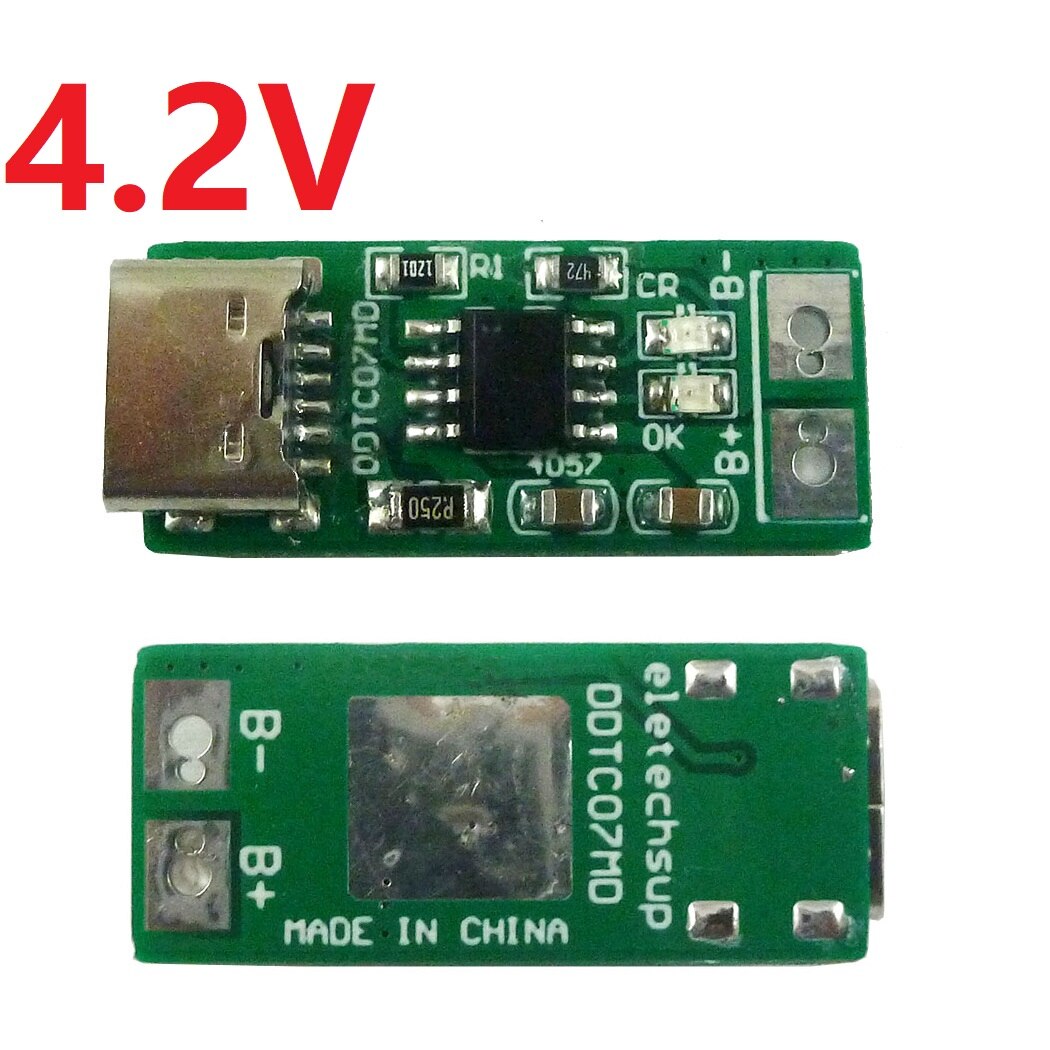

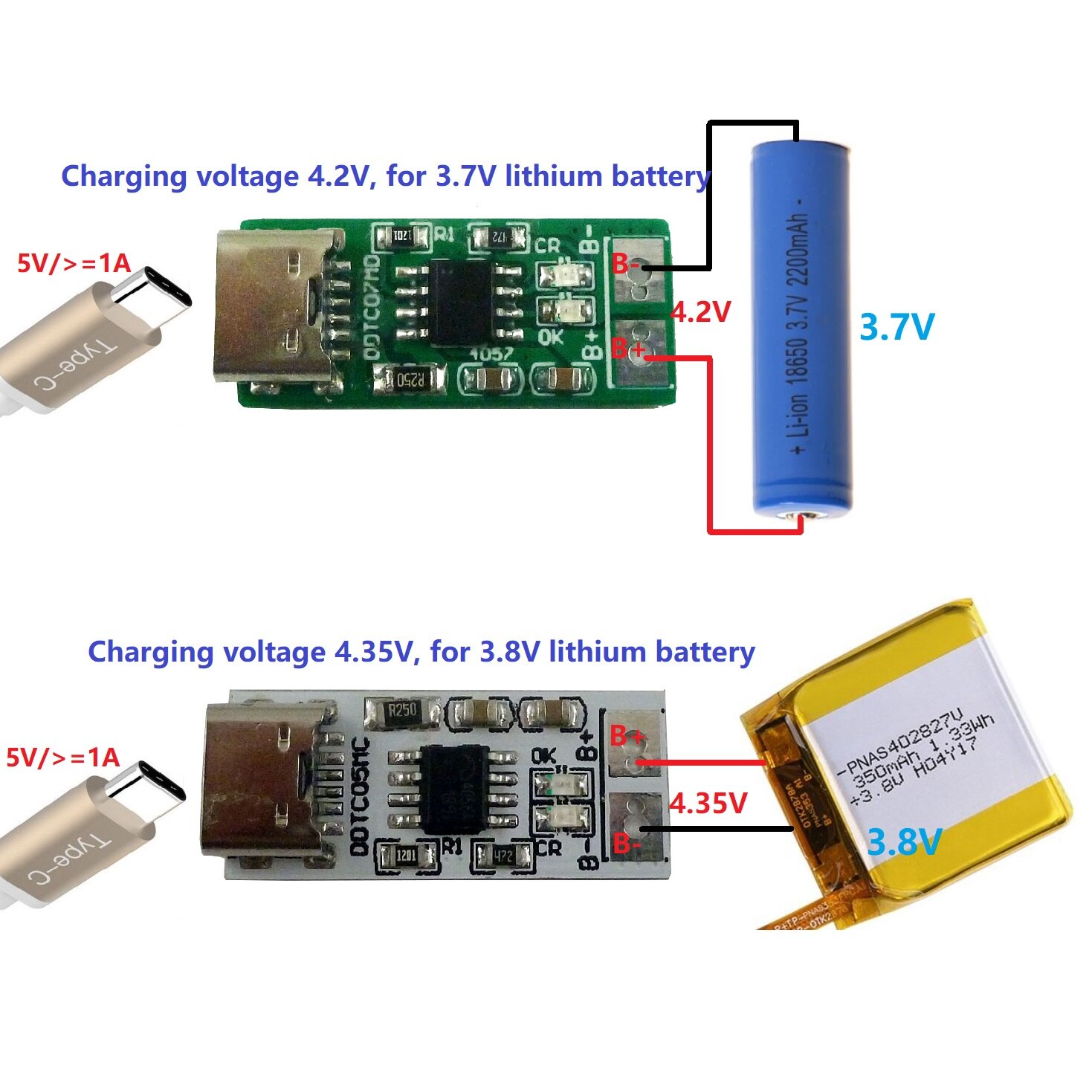

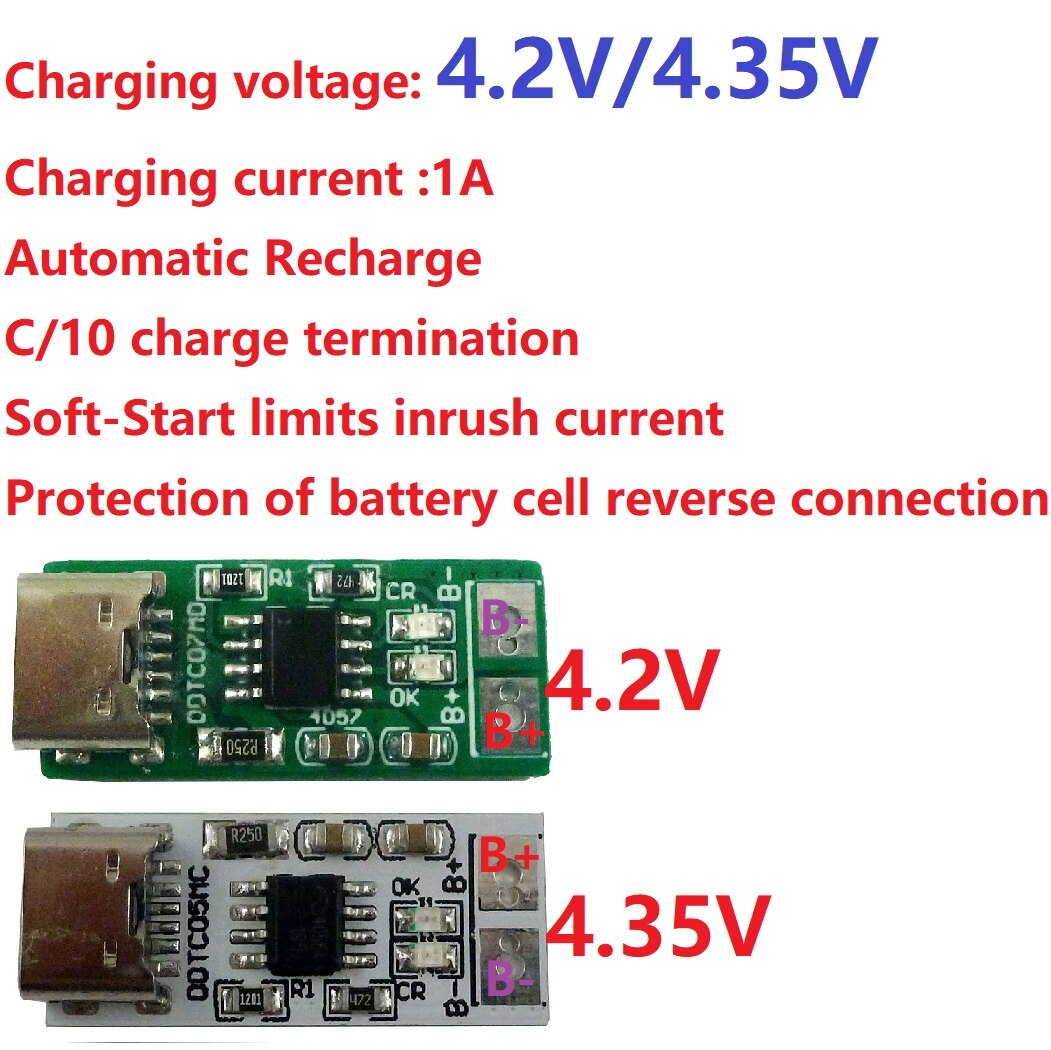

Charging voltage: 4.2V/4.35V
Protection of battery cell reverse connection

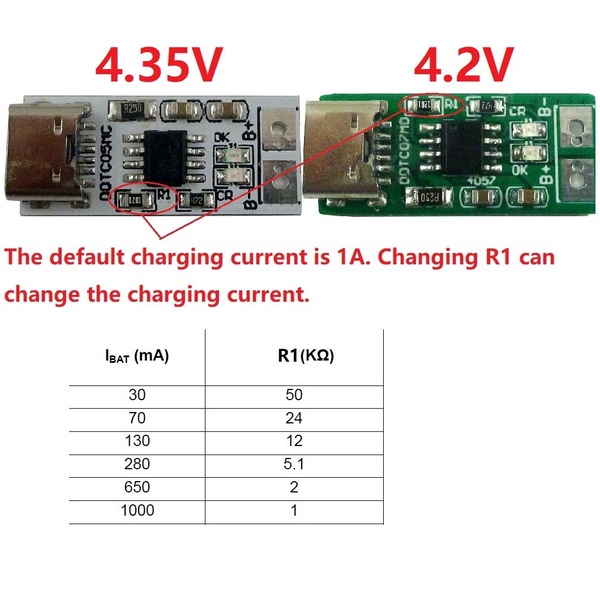

Charging current :1A
Complete linear Charger in SOP8 Package for single Cell Lithium-Ion Batteries.
Constant-Current/Constant-Voltage operation with thermal regulation to maximize Rate Without risk of overheating
Preset 4.2V (4.34V) charge voltage with ��1% accuracy
Automatic Recharge
Two Status Indication for Charge status, no battery and battery failure indicators
C/10 charge termination
55��A supply current in shutdown
2.9V trickle current charge threshold
Soft-Start limits inrush current
Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;
Operating Ambient Temperature??40?? to ??85??
Size : 26mm x 12mm x 4.5mm
Weight : 1.5g

Packing list:1 PCS 1A 4.2V Li-ion Li-Po Lithium Battery Charger
