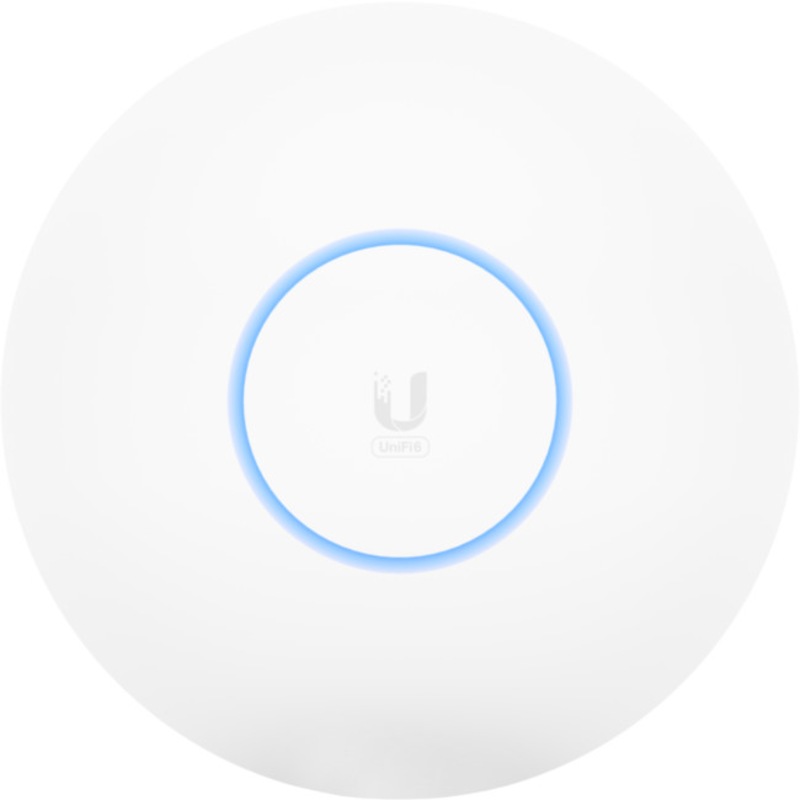

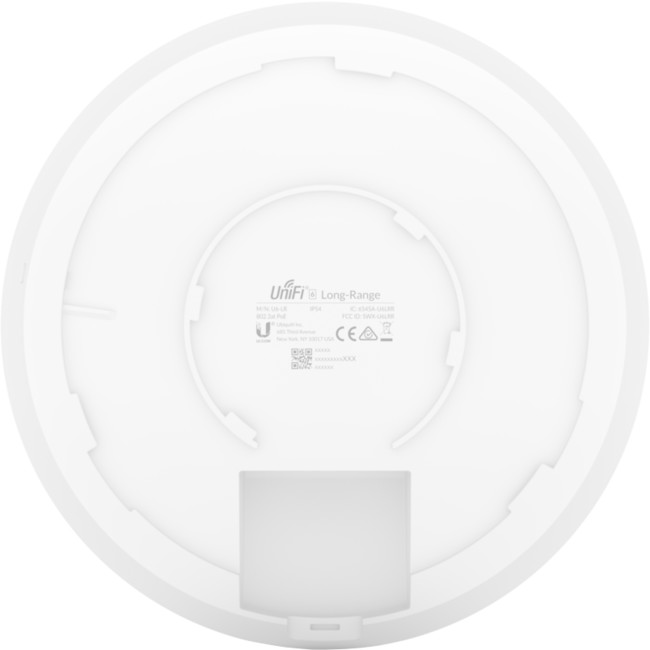

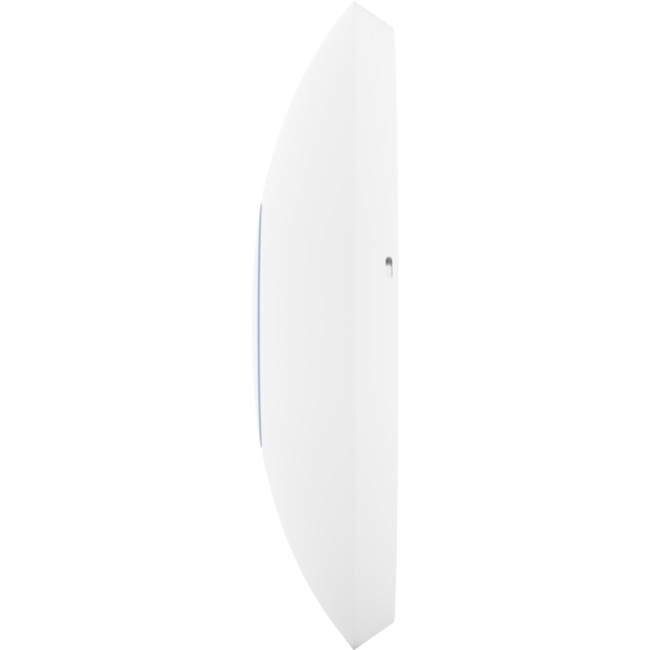

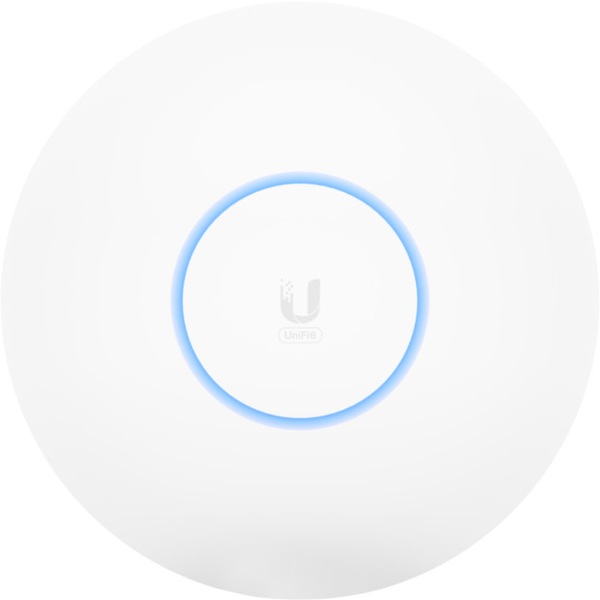

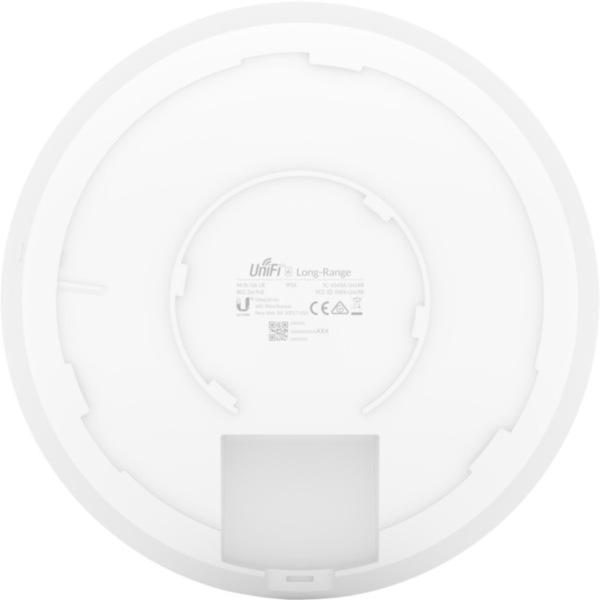

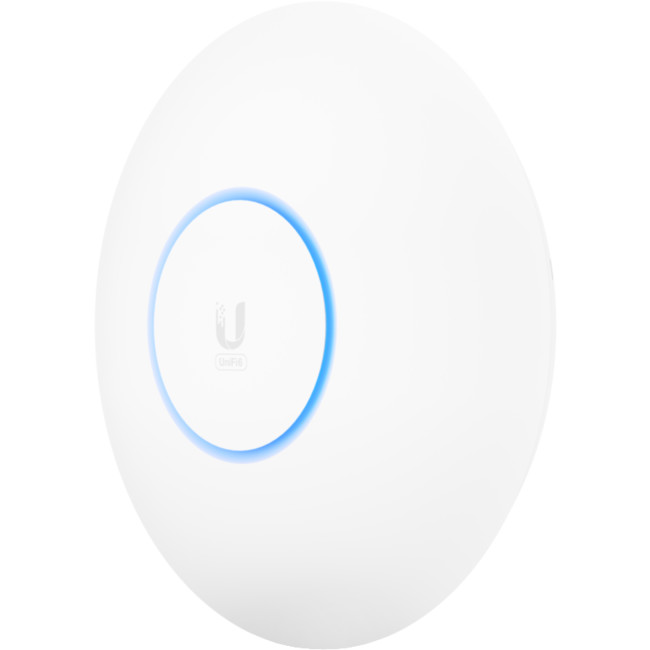

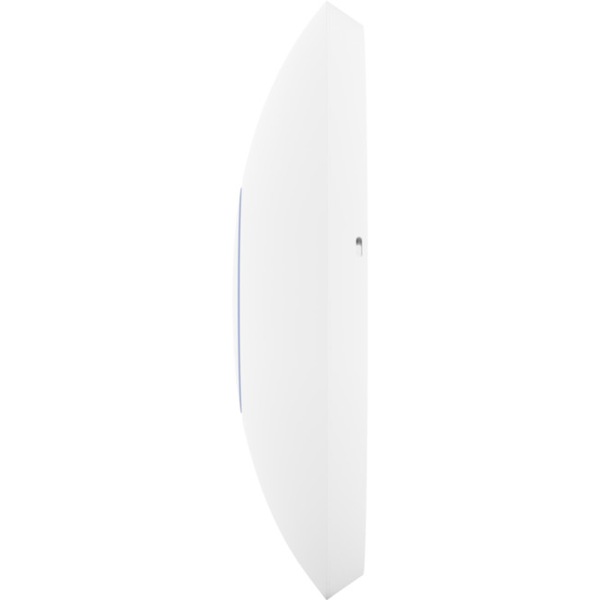

UBIQUITI U6-LR WiFi 6 Long Range Access Point Unifi

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 10 items left!
$376

Collect 376 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Features
Ubiquiti UniFi Wi-Fi 6 Long-Range AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 600Mbps & 5GHz @ 2.4Gbps **No POE Injector Included**

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Features:

  • 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
  • Four-stream high-efficiency Wi-Fi 6 technology
  • 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
  • 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
  • Powered with 802.3at PoE (PoE injector not included)
Specifications
Mechanical
Dimensions

Ø220 x 48mm (Ø8.66 x 1.89")

Weight

Without Mount: 800 g (1.76 lb)
With Mount: 930 g (2.05 lb)

Enclosure Material

Plastic

Mount Material

SGCC Steel

Weatherproofing

IP54

Hardware
Processor Specs

Dual-Core®Cortex®A53 at 1.35 GHz

Memory Information

512 MB

Management Interface

Ethernet

Bluetooth Low Energy 5.0

Networking Interface

(1) 1 Gbps Ethernet RJ45

Button

Factory Reset

LED

RGB

Power Method

PoE+, Passive PoE (48V)

Power Supply

UniFi PoE Switch
48V, 0.5A PoEAdapter (Not Included)

Supported Voltage Range

44 to 57VDC

Max. Power Consumption

16.5W

Max. TX Power
2.4 GHz 26 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 4 x 4
5 GHz 4 x 4
Throughput Speeds
2.4 GHz 600 Mbps
5 GHz 2400 Mbps
Antenna Gain
2.4 GHz 4 dBi
5 GHz 5.5 dBi

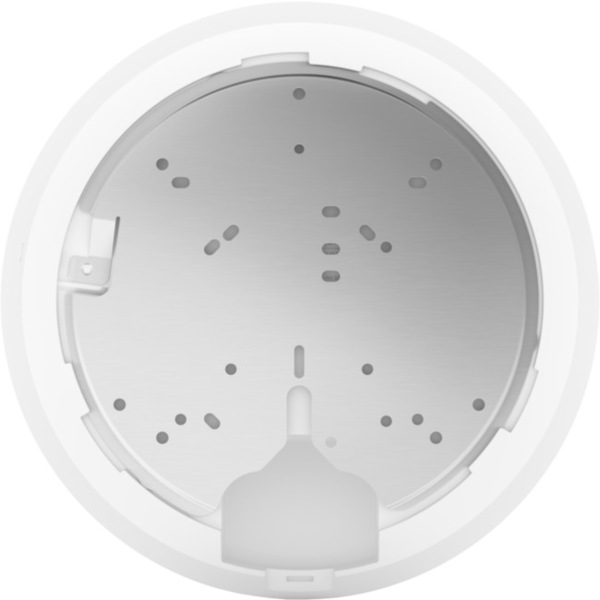

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-30to 60°C (-22 to 140° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

CE, FCC, IC

Software
Wi-Fi Standards

802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supported With Upcoming Controller Versions

BSSID

8 per Radio

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

Concurrent Clients

300+

Supported Data Rates (Mbps)
802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4)

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (Wi-Fi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)


Weight: 1.685

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 810010073389

Estimated Delivery Time Frame:4-8 business days
