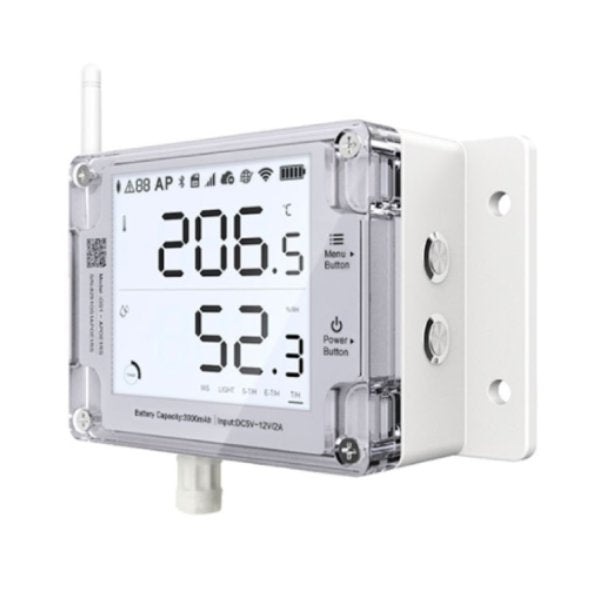

UBIBOT GS1-A INDUSTRIAL-GRADE IP65-WATER-RESISTANT CLOUD-BASED WIFI DATA LOGGER FOR TEMPERATURE, HUMIDITY AND AMBIENT LIGHT MONITORING

Ubibot GS1-A Industrial-grade IP65-water-resistant cloud-based WiFi data logger for Temperature, Humidity and Ambient Light Monitoring. The UbiBot GS1 is specially designed for industrial usage. To ensure better connection and higher performance, we use large capacity lithium battery for long standby time, integrate external antenna for stable WiFi connection, and embed the device with RS485 interface for multiple types of external probes.

Built-in RS485 interface, GS1 series supports multiple probes that can be used in various industry fields (GS1-A excluded). The large and clear LCD screen supports display of the external probe readings in order when more than one probes connected. Altogether 5 probes can be connected at a time, one of each type.

To offer business customers a more suitable solution, we use 2900 mAh lithium battery for the GS1 device. Combined with low-power technology, the device has longer standby time for constant monitoring. It can be charged by type-C USB cable with 2A input, fast and time-saving. Rechargeable battery is also more environmental-friendly.

It measures environmental data in 24/7 at the custom pace you set. Then it uploads and stores them securely in the private channels on UbiBot platform. No matter where you are, you can view the sensor readings anytime on our app or the web console.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

FEATURES

Free App & email alerts

Instant data visualization via LCD screen

Data sync via 2.4GHz WiFi connectivity

24/7 temperature & humidity monitoring

IP 65 waterproof, but not resistant to high humidity over 90%

Larger internal storage with up to 300,000 records

No hub required

SPECIFICATIONS

Product Code: GS1-A

Dimensions: 115mm x 90mm x 55mm

Weight: 436 ± 3g

Screen: 4'' LCD with backlight

Sensing Range: Temperature: -20? to 60?, Accuracy: ±0.3?, Humidity: 10% to 90%, Accuracy: ±3% RH

Power Supply: Built-in lithium battery can be charged by Type-C USB, DC (5V-12V) charger

Compatibility: iOS 11+, Android 8.1+, or Windows 7+, or macOS v10.8+

On-board memory: 300,000 sensing records

WiFi: Supports 20MHz or "Auto" setting supports OPEN, WEP, or WPA/WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported requires 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported)

Battery Life: 4-6 months(WiFi only)

External probe: Not supported

Waterproof & Dustproof: IP65

Ports: 1 Mini USB, 1 Micro USB

Device Setting: Supports minimum device sync interval (upload) of 1 minute, and minimum sensing interval of 1 minute (Temperature, Humidity, Light, External Probe and Battery Voltage).

Alert Types: Supports APP push notifications, email, sms text and phone call alerts. Alerts can be set on numeric-based sensor readings and network status (e.g. when connection is lost or batteries are low). All alerts are sent from the UbiBot Cloud.

PACKAGE CONTENTS

1 x GS1-A device
1 x External antenna
1 x Manual book
1 x Type-C USB cable
