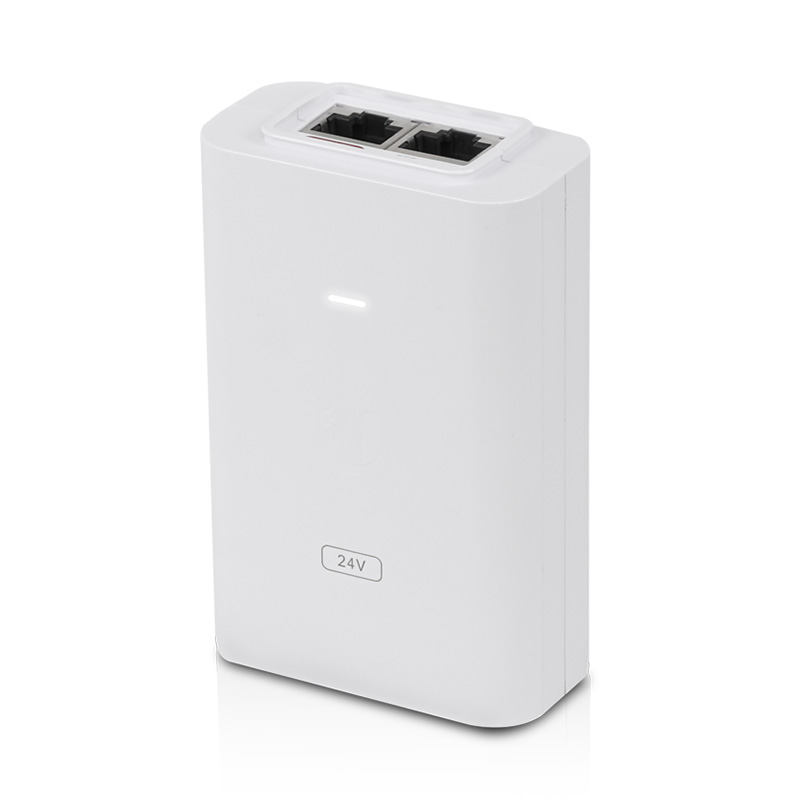

Ubiquiti 24 V DC PoE Adapter - White (POE-24-24W-G-WH)

Image 1
Hurry! 5 items left!
$31.40

Collect 31 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

SPECIFICATIONS:

Dimensions

96 x 62 x 35 mm (3.78 x 2.44 x 1.38")

Weight

166 g (5.86 oz)

Output   voltage

24VDC @ 1.0A

LAN activity indicator

No

Gigabit LAN port

Yes

Remote reset capability

Yes

Reset button

Yes

Rated voltage

100-240V AC @ 50/60Hz

Input current

750mA @ 90VAC

Inrush current

<100A Peak @ 25C

Efficiency

86.2+

Output ripple

200mV p-p

Switching frequency

65 kHz

Line regulation

3%

Load regulation

5%

2-pair powering

Pins 4, 5 (+) and Pins 7, 8 (-)

Storage temperature

-30 to 70C (-22 to 158 F)

Ambient operating temperature

0 to 40 C (32 to 104 F)

Ambient operating humidity

5 to 90% Noncondensing

AC connector

IEC-320 C6

Data IN / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak   pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Certifications

CE, FCC, IC, UL






SKU: 81804
