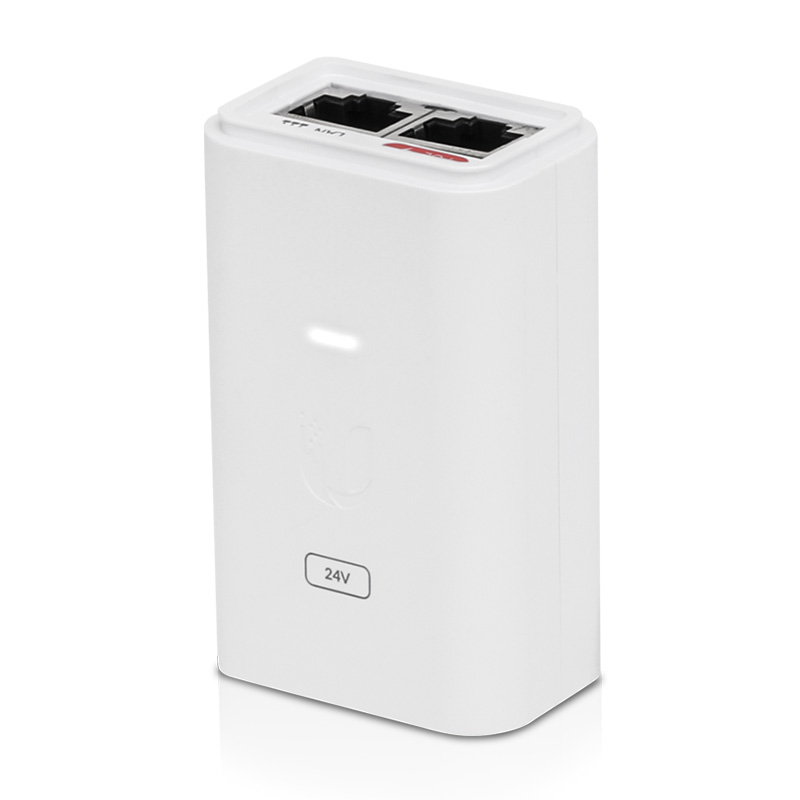

Ubiquiti 24 V DC PoE Adapter - White (POE-24-7W-G-WH)

Image 1
Hurry! 5 items left!
$17.90

Collect 17 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

SPECIFICATIONS:

Dimensions

72 x 45 x 33 mm (2.84 x 1.75 x 1.33")

Weight

72.1g (2.54 oz)

Output  voltage

24VDC @ 1.0A

LAN activity indicator

No

Gigabit LAN port

Yes

Remote reset capability

Yes

Reset button

Yes

Rated voltage

100-240V AC @ 50/60Hz

Input current

0.3A @ 120VAC, 0.2A @240VAC

Inrush current

<40A Peak @ 120VAC, <70A Peak @ 230VAC

Efficiency

80+%

Output ripple

1% Max

Switching frequency

65 kHz

Line regulation

3%

Load regulation

5%

2-pair powering

Pins 4, 5 (+) and Pins 7, 8 (-)

Storage temperature

-30 to 70C (-22 to 158 F)

Ambient operating temperature

0 to 40 C (32 to 104 F)

Ambient operating humidity

35 to 95% Non-Condensing

AC connector

IEC-320 C6

Data IN / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Certifications

CE, FCC, IC, UL
