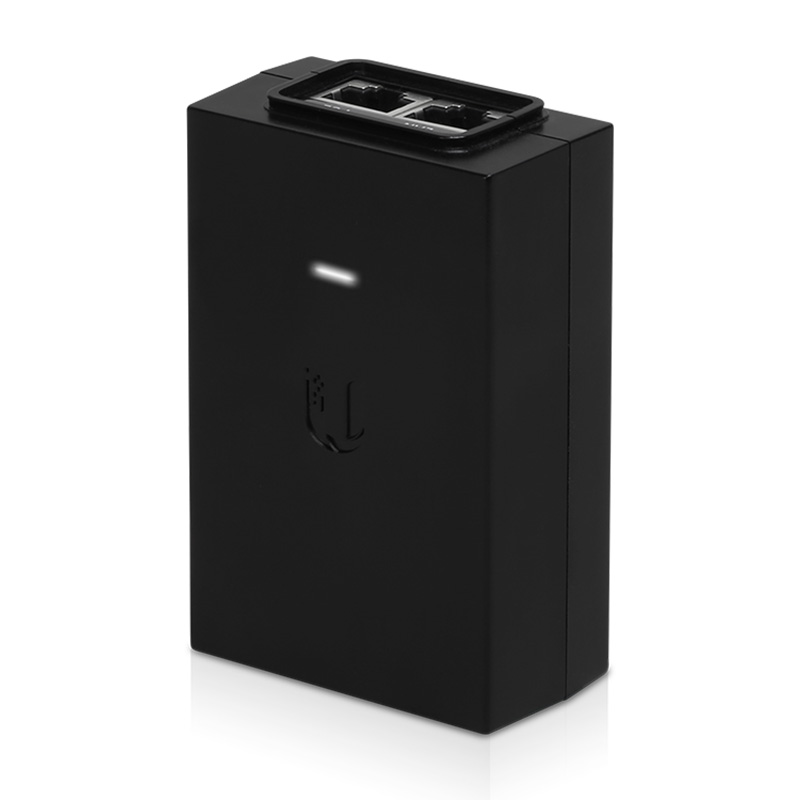

Ubiquiti 24V DC 30W POE Injector - Black (POE-24-30W)

Image 1
Hurry! 5 items left!
$41.40

Collect 41 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

SPECIFICATIONS:

Dimensions

94 60 33 mm (3.70 2.36 1.30")

Weight

156 g (5.5 oz)

Output voltage

24VDC @ 1.25A

LAN activity indicator

No

Gigabit LAN port

Yes

Remote reset capability

No

Reset button

No

Rated voltage

100-240V AC @ 50/60Hz

Input current

0.6A @ 120VAC, 0.4A @ 240VAC

Inrush current

<60A Peak @ 120VAC, <120A Peak @ 230VAC

Efficiency

83+%

Output ripple

1% Max.

Switching frequency

65 kHz

Line regulation

3%

Load regulation

5%

4-pair powering

Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-

Storage temperature

-30 to 70C (-22 to 158 F)

Ambient operating temperature

0 to 40 C (32 to 104 F)

Ambient operating humidity

35 to 95% noncondensing

AC connector

IEC-320 C6

Data IN / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Certifications

CE, FCC, IC, UL




SKU: 81806
