Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge, 5GHz, 450+ Mbps, 15+ km, 2 x Gigabit Ethernet Ports PtP/PtMP Bridge/ Client Mode [NBE-5AC-GEN2]

Image 1
Image 2
Limited Stock
$205.16

Collect 205 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

Popular Products

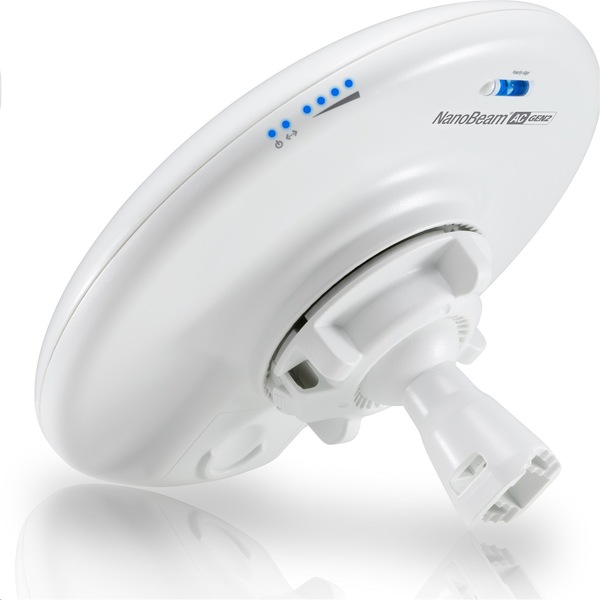

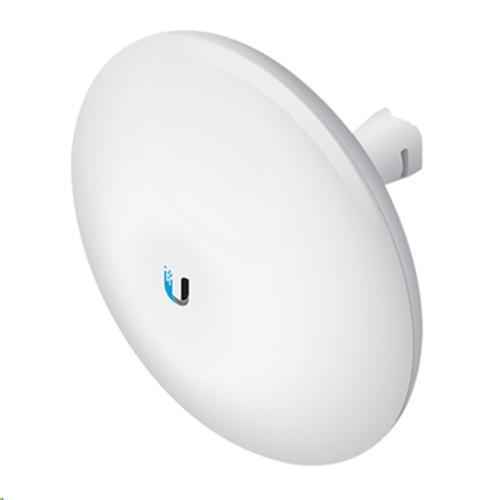

Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge, 5GHz, 450+ Mbps, 15+ km, 2 x Gigabit Ethernet Ports PtP/PtMP Bridge/ Client Mode

High-Performance airMAX® ac Bridge

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.




Management Wi-Fi Radio

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



Improved Surge Protection

The NanoBeam® AC features enhanced protection against ESD events.



Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.




Incredible Antenna "Beam" Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.




Advanced Software Technology

Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.




Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Dimensions (Mount Included)
189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

Weight (Mount Included)
0.530 kg (1.17 lb)

Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption
8.5W

Gain
19 dBi

Networking Interface
2x 10/100/1000 Ethernet Port (1x Passthrough)
Wi-Fi for Management

Processor Specs
Atheros MIPS 74Kc, 720 MHz

Memory
128 MB DDR2, 8 MB Flash

LEDs
Power, Ethernet, (4) Signal Strength

Signal Strength
LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Max. VSWR
1.5:1

Channel Sizes

PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz

Polarization
Dual Linear

Enclosure
Outdoor UV Stabilized Plastic

Mounting
Pole-Mount (Kit Included), Wall-Mount

Wind Loading
45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability
200 km/h (125 mph)

ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature
-40 to 80° C (-40 to 176° F)

Operating Humidity
5 to 95% Noncondensing

Certifications
CE, FCC, IC

RoHS Compliance
Yes

Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test
IEC 68-2-6

Temperature Shock Test
IEC 68-2-14

UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
- MPN: NBE-5AC-GEN2

GTIN: 817882023375
