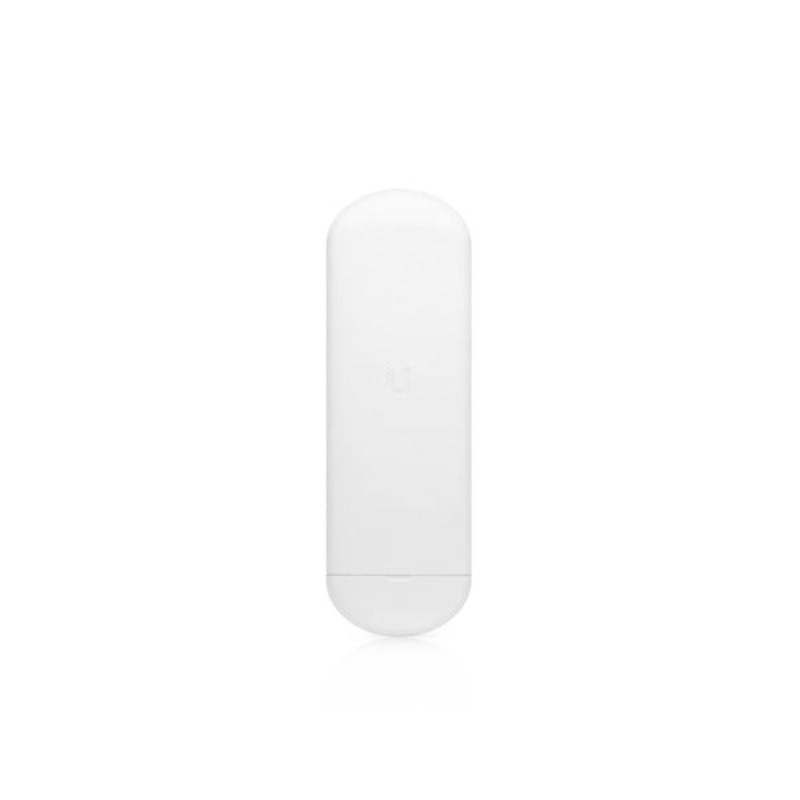

UBIQUITI NS5AC 5 GHZ NANOSTATION AC
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC takes the same concept to the future with sleek form factors, along with integrated airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC makes it extremely versatile and economical to deploy.
UISP-supported WiFi radio designed for point-to-point and customer premises applications.
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
FEATURES
Management WiFi Radio/UISP mobile app
AirOS 8
Connect two remote locations on the one network
Share Internet connection between buildings, remote sites, etc.
AirMax AC compatible, up to 450Mbps throughput
Integrated AirOS web software for controlling power, bridge/AP mode, etc.
Two units required for wireless bridge
Includes POE injector and 240V AC adaptor.
SPECIFICATIONS
Networking interface (2): 10/100/1000 MbE ports
Power method PoE Alternative A: (Pairs 1, 2+; 3, 6 Return)
24V Passive PoE: (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A: Gigabit PoE supply (Included)
Supported voltage range: 24V ±10%
Max. power consumption: 9W
ESD/EMP protection Air/contact: ±24 kV
LEDs Power, Ethernet, (4) signal strength
Operating temperature: -40 to 70° C (-40 to 158° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC System
Gain: 16 dBi
Channel bandwidths: 10/20/30/40/50/60/80 MHz
Cross-pol isolation: 20 dB min.
Max. VSWR: 1.6:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization :Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1 5150-5250 MHz
U-NII-2A 5250-5350 MHz
U-NII-2C 5240-5725 MHz
U-NII-3 5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
Enclosure material: UV-resistant plastic
Dimensions
Without mount: 257 x 84 x 41 mm
With mount: 257 x 84 x 30 mm
Weight 233 g
PACKAGING CONTENT
1 x Ubiquiti Ns5Ac 5 Ghz Nanostation Ac
1 x Mounting Pole
1 x Wall Mounting Kits
SKU: UBI-NS-5AC
Reference ID: 12151758
