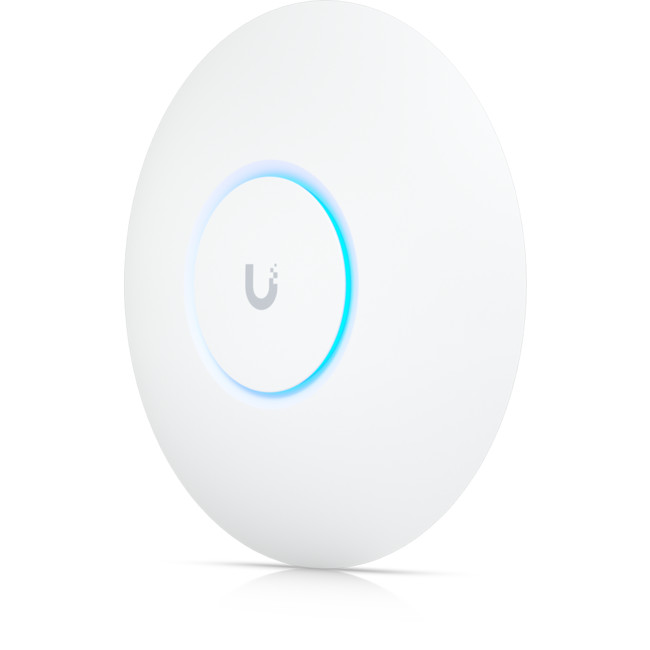

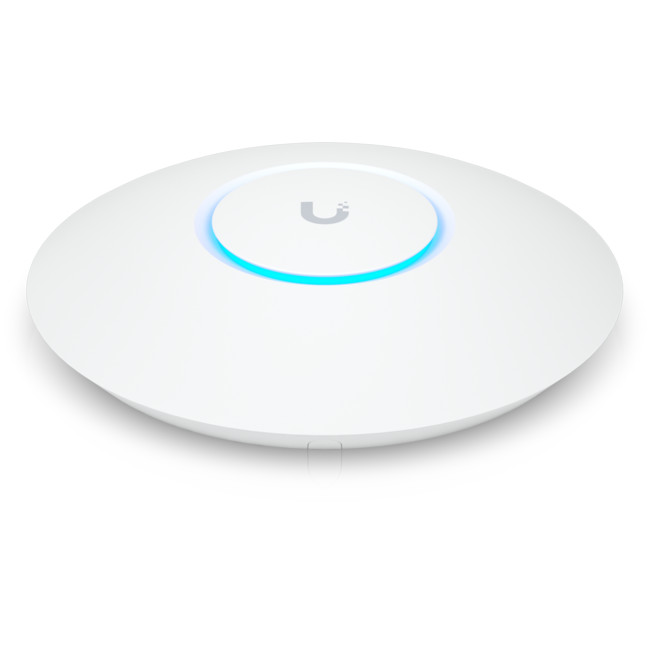

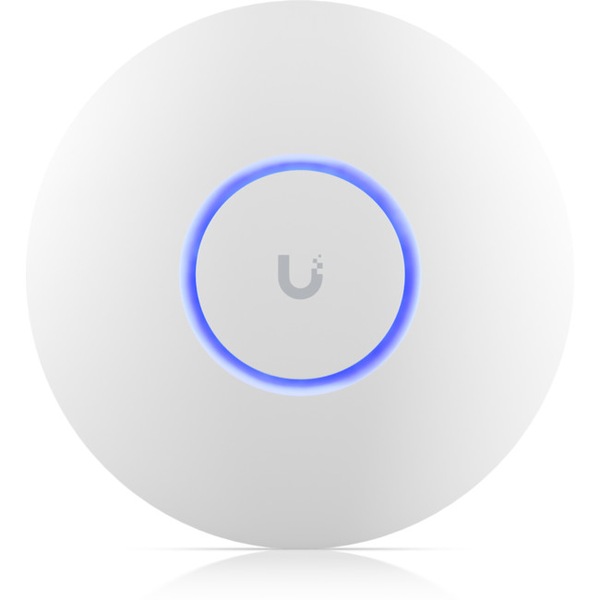

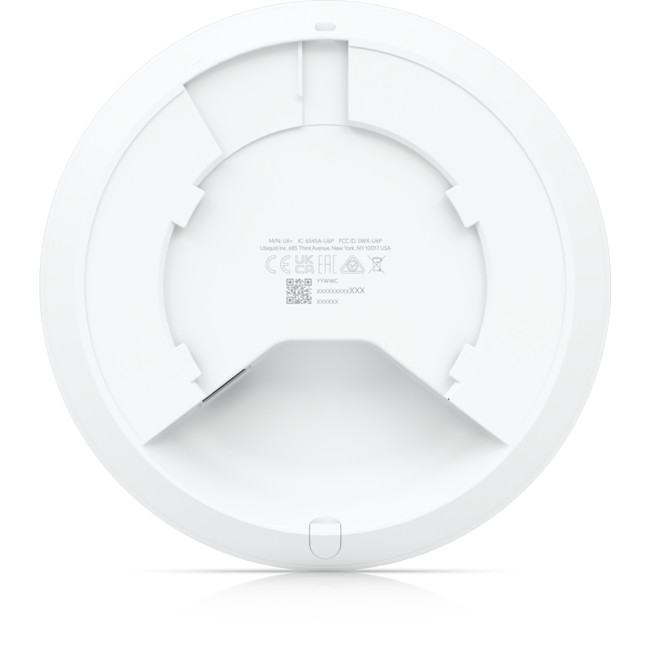

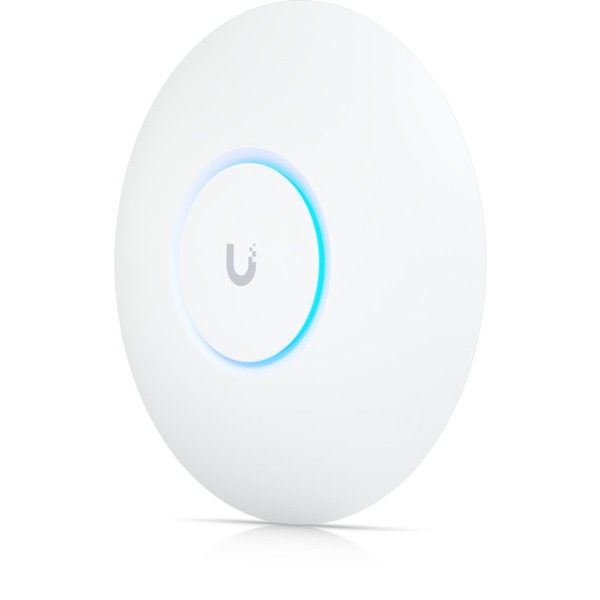

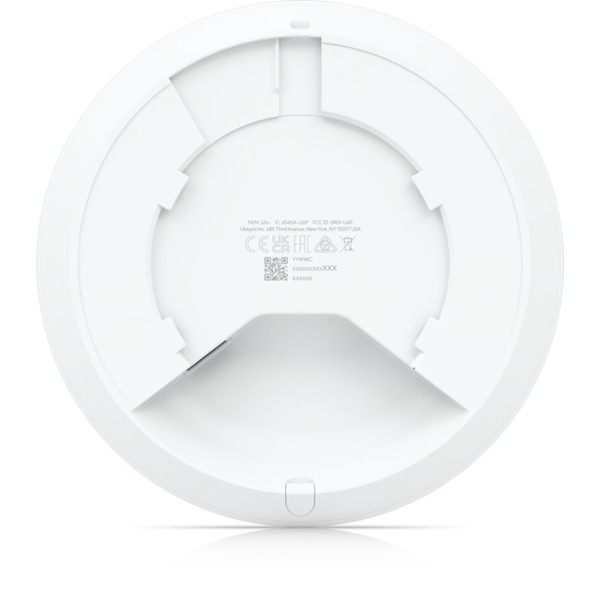

Experience the future of wireless connectivity with the Ubiquiti U6+, the Plus UniFi Compact AP that brings the power of Wi-Fi 6 to your network. With a compact design measuring Ø160mm × 33mm, this cutting-edge access point delivers exceptional performance and efficiency without compromising on space. The U6+ is designed to meet the demands of modern, data-intensive applications, making it an ideal choice for homes, businesses, or educational institutions.
The U6+ takes advantage of Wi-Fi 6 (802.11ax) technology, providing faster speeds, increased capacity, and improved performance in high-density environments. Enjoy seamless connectivity on both 2.4GHz and 5GHz bands, ensuring optimal performance for a wide range of devices. With advanced features like MU-MIMO and BSS Coloring, the U6+ maximizes network efficiency, delivering a superior wireless experience for all users.
For added convenience, please note that the PoE injector is not included with the U6+. This ensures flexibility in power supply options, allowing you to tailor your network setup to specific requirements. Elevate your wireless network to the next level with the Ubiquiti U6+, embracing the latest in Wi-Fi technology within a sleek and compact form factor. Unleash the potential of Wi-Fi 6 for improved speeds, increased capacity, and enhanced performance in a variety of environments.
Mechanical | |
---|---|
Dimensions | Ø160mm × 33mm (Ø6.3″ × 1.3″) |
Weight | Without Mount: 338g (0.8lb) With mount: 413g (0.9lb) |
Enclosure Material | Polycarbonate, aluminum |
Mount Material | ABS, SGCC steel |
Hardware | |
Networking Interface | (1) GbE RJ45 port |
Management Interface | Ethernet |
Power Method | PoE |
Supported Voltage Range | 44-57V DC |
Max. Power Consumption | 9W |
Max. TX Power 2.4 GHz 5 GHz 6 GHz | 23 dBm 23 dBm - |
MIMO 2.4 GHz 5 GHz 6 GHz | 2 × 2 (DL/UL MU-MIMO) 2 × 2 (DL/UL MU-MIMO) - |
Throughput rate 2.4 GHz 5 GHz 6 GHz | 573.5 Mbps (BW40) 2.4 Gbps (BW160) - |
Antenna gain 2.4 GHz 5 GHz 6 GHz | 3 dBi 5.4 dBi - |
LEDs | White/blue |
Button | Factory reset |

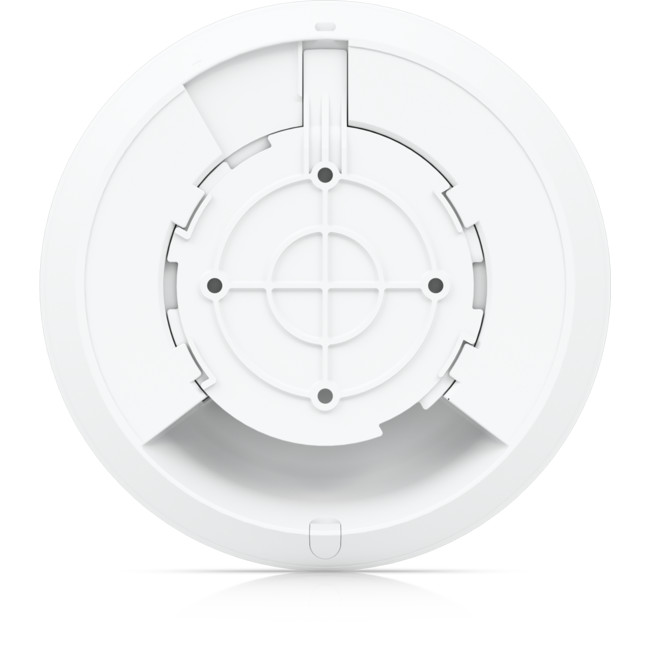

Mounting | Wall, ceiling (Included) |
Ambient operating temperature | -30°C to 60°C (−22°F to 140°F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software | |
Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest Traffic Isolation | Supported |
Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
Concurrent Clients | 300+ |
Supported Data Rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
Software | |
Management Application | UniFi Network: Version 7.3.76 and later |
