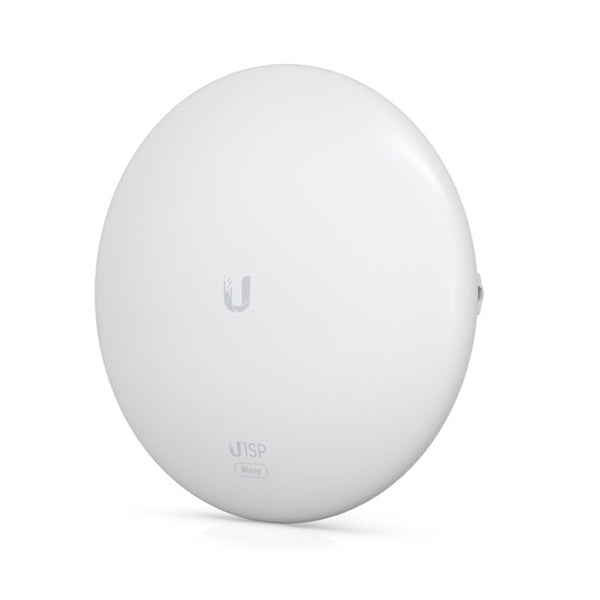

UBIQUITI UISP WAVE NANO 60 GHZ + 5 GHZ 60 GHZ PTMP STATION POWERED BY WAVE TECHNOLOGY
Wave-Nano connects to a Ubiquiti Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Ubiquiti UISP Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
FEATURES
5 GHz backup radio
Link range: up to 5 km
Router mode support
Integrated GPS antenna
SPECIFICATIONS
Mechanical
Dimensions: Ø256.5 x 113.5 mmÂ
Weight Without mount: 932 gÂ
With mount: 1.2 kg )
Enclosure materials: Aluminum alloy, UV stabilized plastic
Mount materials: Aluminum alloy, UV stabilized plastic
Pole mount: diameter 25 to 63.5 mm on pipe outer diameter
Wind loading: 127 N at 200 km/hÂ
Weatherproofing: IPX6
Hardware
Processor Dual ARM® Cortex-A53 cores at 1GHz
Memory: DDR3L 512MB
Networking interface: (1) GbE RJ45 port
Max. power consumption: 18W
Power method: 48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply: 48VDC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Button: Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature: -40 to 60° CÂ
Operating humidity: 5 to 95% noncondensing
PACKAGE CONTENTS
1 x Ubiquiti Uisp Wave Nano 60 Ghz 5 Ghz 60 Ghz Ptmp Station
GTIN: 810010078988
