UBIQUITI UISP-FIBER-XG UISP FIBER 2.5GBPS UPLINK / 10GBPS DOWNLINK UP TO 20KM

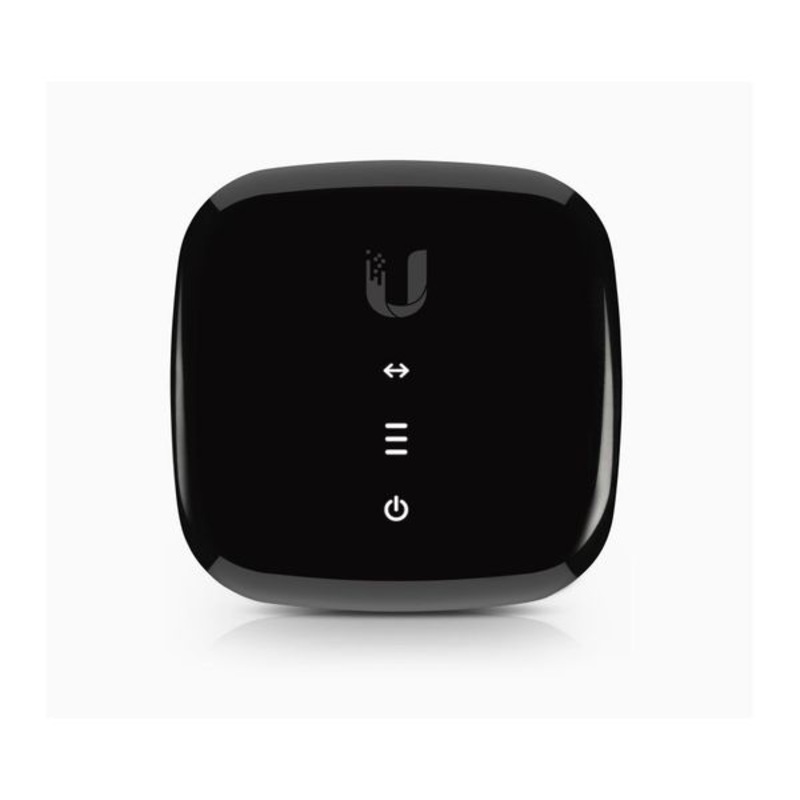

Ubiquiti UISP-FIBER-XGS is an optical network unit that can deliver 2.5 Gbps uplink / 10Gbps downlink speeds over distances up to 20 km.
(1) XG-PON port
(1) 2.5GbE RJ45 LAN port and 24V POE input
SPECIFICATIONS
Mechanical:
100 x 100 x 27 mm
Weight: 220 g
Enclosure material: UV-stabilized polycarbonate
Hardware:
Networking interface: (1) SC/APC, ITU-G.987 XGPON WAN port
(1) 100/1,000/2,500 MbE RJ45 LAN ports
Management interface: Ethernet in-band
PON
Memory: 256 MB DDR
Onboard flash storage: 32 MB NOR
Max. power consumption: 6W
Power method: USB-C 5V DC, 3A
Power supply: 5V DC, 3A power adapter and 24V DC Passive POE
Supported voltage range: 5V DC power adapter Passive PoE 2-pair (4, 5+; 7, 8-) 10–30V DC passive PoE
Total non-blocking line rate: Downstream: 9.95 Gbit/s
Upstream: 2.44 Gbit/s
Normal TX range of optical module: 2 to 7dBm
Normal RX range of optical module: -9 to -27dBm
Button   (1) Factory reset
Operating temperature: -15 to 45° C
Operating humidity: 10 to 95% non-condensing
Certifications: CE, FCC, IC
Fiber:
Operating wavelength   TX: 1,270nm
RX: 1,577nm
Line code   Scrambled NRZ
Physical reach   20 km
LEDs:
Power White: On
Ethernet Steady white: Link up
Blinking white: Activity
OFF: Link down
PON status: (3) Signal LEDs
All-OFF: Bootup
1x orange: Signal too low (< -27 dbm)
1x white: Signal low (>= -27 dbm)
2x white: Signal good (>= -24 dbm)
3x white: Signal strong (>= -12 dbm)
1x orange + 2x white: Signal too strong (>= -9 dbm)
3x orange: No signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Note. This device is only compatible with the Ubiquiti UISP Fiber XGS OLT. It cannot be used with third-party OLTs.
PACKAGE CONTENT
1 x Ubiquiti Uispfiberxg Uisp Fiber Uplink 10Gbps Downlink Up To 20Km
