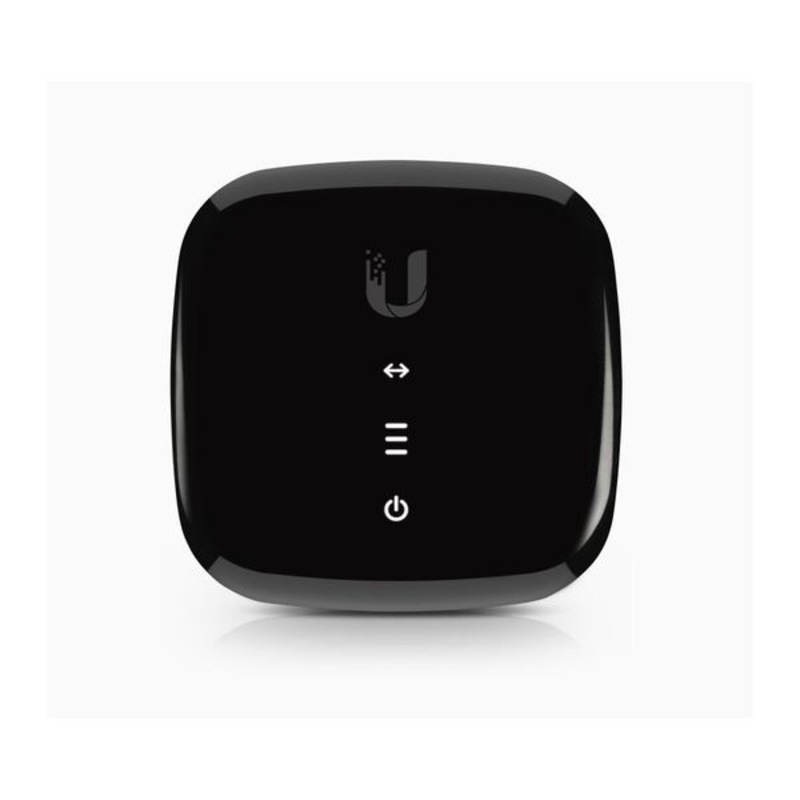

UBIQUITI UISP-FIBER-XGS UISP FIBER 10 GBPS UPLINK/DOWNLINK UP TO 20KM

Ubiquiti UISP-FIBER-XGS is an optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.
(1) XGS-PON port
(1) 10GbE RJ45 LAN port

SPECIFICATIONS

Mechanical:

100 x 100 x 27 mm
Weight: 220 g
Enclosure material: UV-stabilized polycarbonate

Hardware:

Networking interface: (1) SC/APC, ITU-G.9807 XGSPON WAN port
(1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports
Management interface: Ethernet in-band
PON
Memory: 256 MB DDR
Onboard flash storage: 32 MB NOR
Max. power consumption: 8W
Power method: USB-C 5V DC, 3A
Power supply: 5V DC, 3A power adapter
Supported voltage range: 5V DC power adapter
Total non-blocking line rate: Downstream: 9.95 Gbit/s
Upstream: 9.95 Gbit/s
Normal TX range of optical module: 4 to 9dBm
Normal RX range of optical module: -9 to -26dBm
Button: (1) Factory reset
Operating temperature: -15 to 45° C
Operating humidity: 10 to 95% non-condensing
Certifications: CE, FCC, IC

Fiber:

Operating wavelength    TX: 1,270nm
RX: 1,577nm
Line code    Scrambled NRZ
Physical reach    20 km

LEDs:

Power White: On
Ethernet Steady white: Link up
Blinking white: Activity
OFF: Link down
PON status: (3) Signal LEDs
All-OFF: Bootup
1x orange: Signal too low (< -27 dbm)
1x white: Signal low (>= -27 dbm)
2x white: Signal good (>= -24 dbm)
3x white: Signal strong (>= -12 dbm)
1x orange + 2x white: Signal too strong (>= -9 dbm)
3x orange: No signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority

Note. This device is only compatible with the Ubiquiti UISP Fiber XGS OLT. It cannot be used with third-party OLTs.

PACKAGE CONTENT

1 x Ubiquiti Uispfiberxgs Uisp Fiber 10 Gbps Uplink Downlink Up To 20Km

GTIN: 810084691199
