Ubiquiti Unifi Access G3 Reader - Black (UA-G3-B) [UA-G3-B]

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 1 items left!
$370.51

Collect 370 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

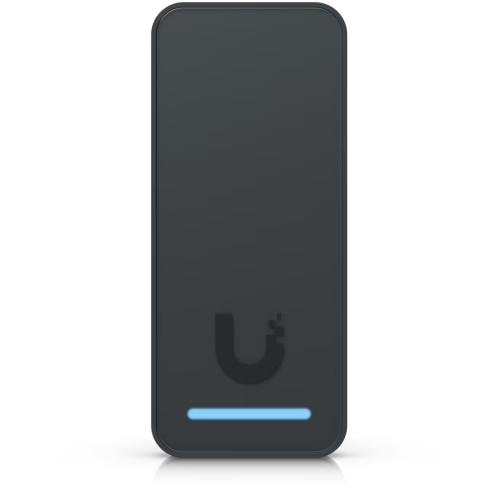

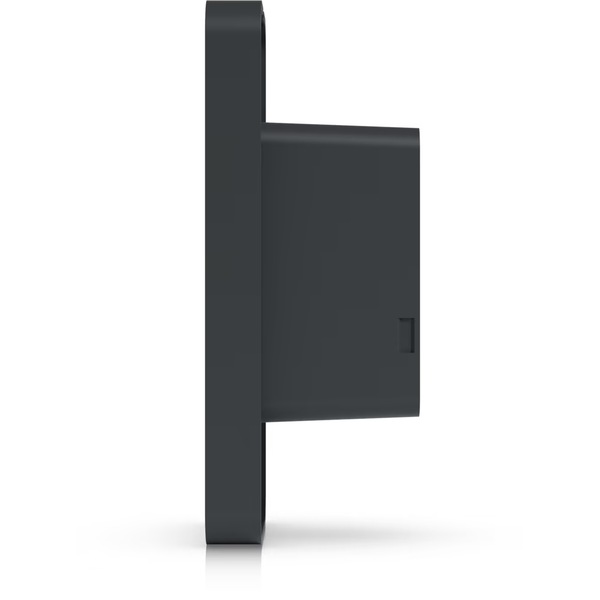

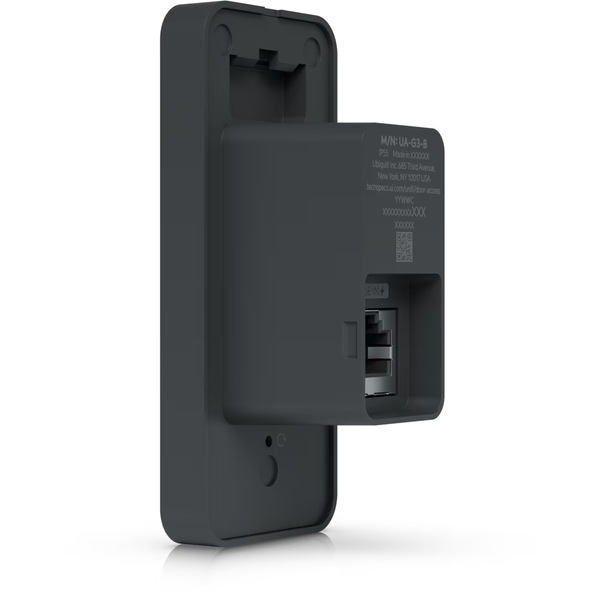

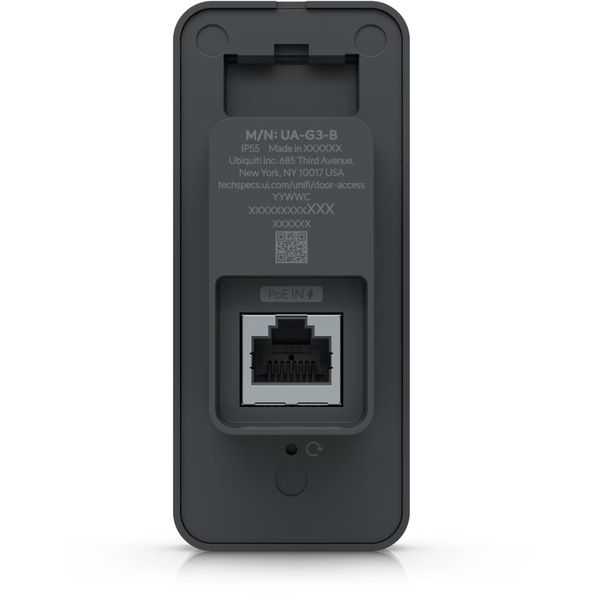

Ubiquiti Unifi Access G3 Reader - Black (UA-G3-B)

G3 Reader
Compact third-generation access reader with Apple Touch Pass support.
- Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass*
- Supports hand-wave unlocking as a request-to-exit device
- Provides entry and exit greeting messages
- IP55-rated weather resistance (-30 to 45°C)
- Connects to UniFi Access Hub via PoE

Mechanical

Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Weight
82 g (2.9 oz)

Enclosure material
Polycarbonate, glass

Mounting material
Aluminum alloy

Mounting
In wall, gang box

Weatherproofing
IP55

Hardware

Networking interface
(1) 10/100 MbE RJ45 port

Connectivity
BLE 4.1
NFC

Power method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range
48V DC

Max. power consumption
5W

ESD/EMP protection
Air: ±15kV, contact: ±8kV

Sensors
Proximity sensor

Speaker
(1) 8 ohm, 0.7W

LEDs
R/G/B/W
Button
(1) Factory-reset

NFC frequency
13.56 MHz

NFC read range
< 30 mm

NFC technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0

Operating environment
Outdoor use

Ambient operating temperature
-30 to 45° C (-22 to 113° F)

Ambient operating humidity
5 to 90% noncondensing

Software information
The software version of a product can be checked at https://unifi.ui.com

UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

CAN/ULC-60839-11-1
Grade Grade assignment: I

Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level
UA-G3, V01

Software

Management application
UniFi Access: Version 3.0.15 and later
- MPN: UA-G3-B

GTIN: 810084697603
