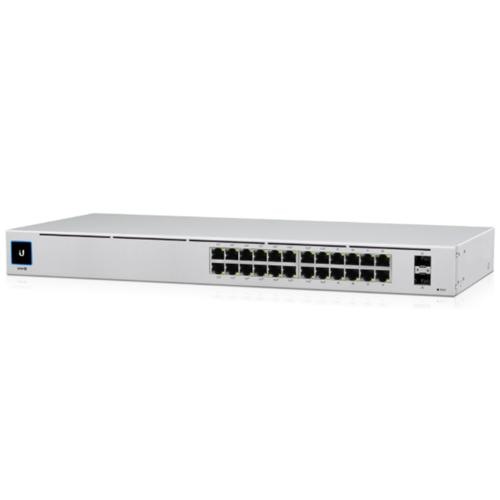

Ubiquiti UniFi Switch Gen2 USW-24-POE 24-Port Gigabit Managed PoE+ Switch with 16 x PoE/PoE+ (Max 95W) and 2 x SFP [USW-24-POE]

Image 1
Image 2
Image 3
Hurry! 10 items left!
$787.85

Collect 787 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

Popular Products

Ubiquiti UniFi Switch Gen2 USW-24-POE 24-Port Gigabit Managed PoE+ Switch with 16 x PoE/PoE+ (Max 95W) and 2 x SFP

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Manufacturer's Code
USW-24-POE-AU

Dimensions
442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")

Weight
3.00 kg (6.61 lb), With Brackets 3.09 kg (6.81 lb)

Interfaces Networking
(24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports

Management
Ethernet In-Band

Total Non-Blocking Throughput
26 Gbps

Switching Capacity
52 Gbps

Forwarding Rate
38.69 Mpps

Power Method
100-240VAC, 50/60 Hz, Universal Input

Power Supply
AC/DC, Internal, 120W

Voltage Range
100 to 240VAC

Max Power Consumption (Excluding PoE Output)
25W

LEDs
System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP Data Ports Link/Activity

ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration
ETSI300-019-1.4 Standard

Operating Temperature
-5 to 40° C (23 to 104° F)

Operating Humidity
10 - 90% Noncondensing

Certifications
CE, FCC, IC

Total Available
PoE 95W

PoE Interfaces Ports
1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE
802.3at 32W

Voltage Range
802.3af Mode 44-57V, 802.3at Mode 50-57V
- MPN: USW-24-POE

GTIN: 817882028523
