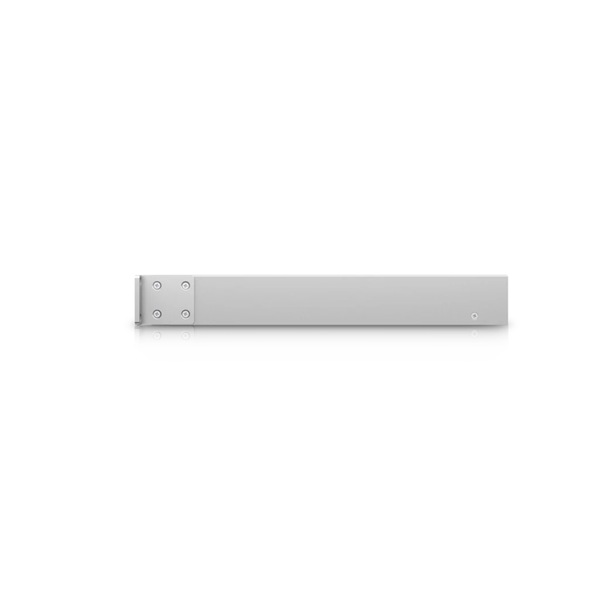

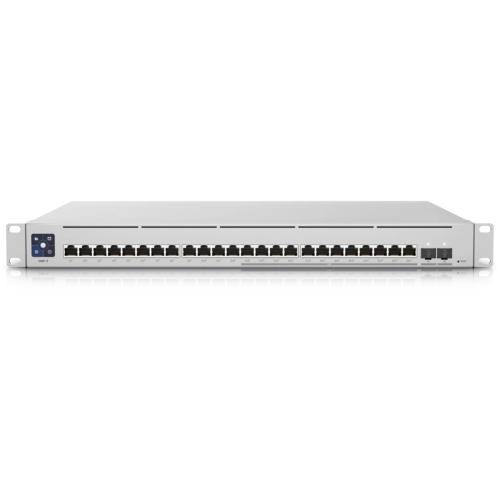

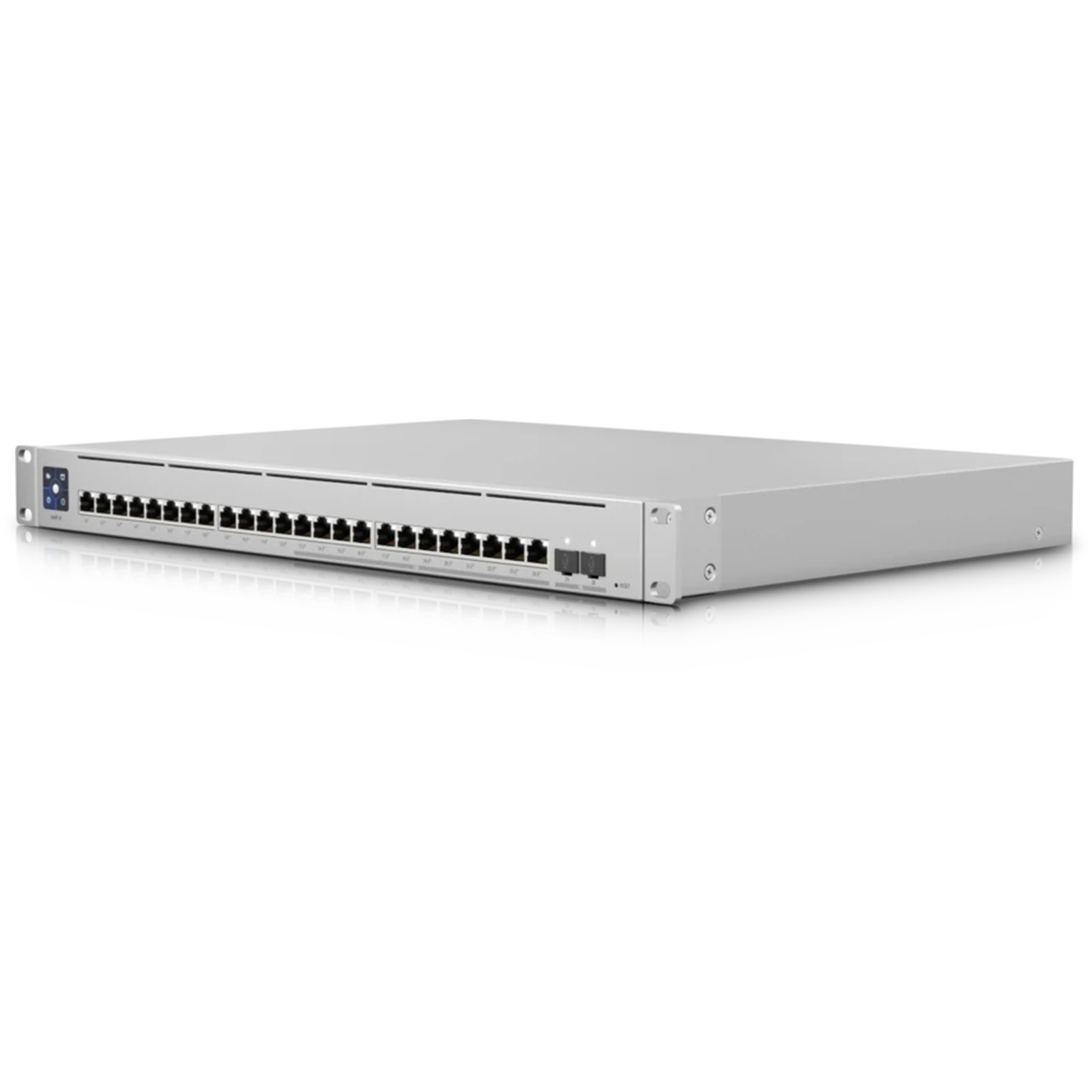

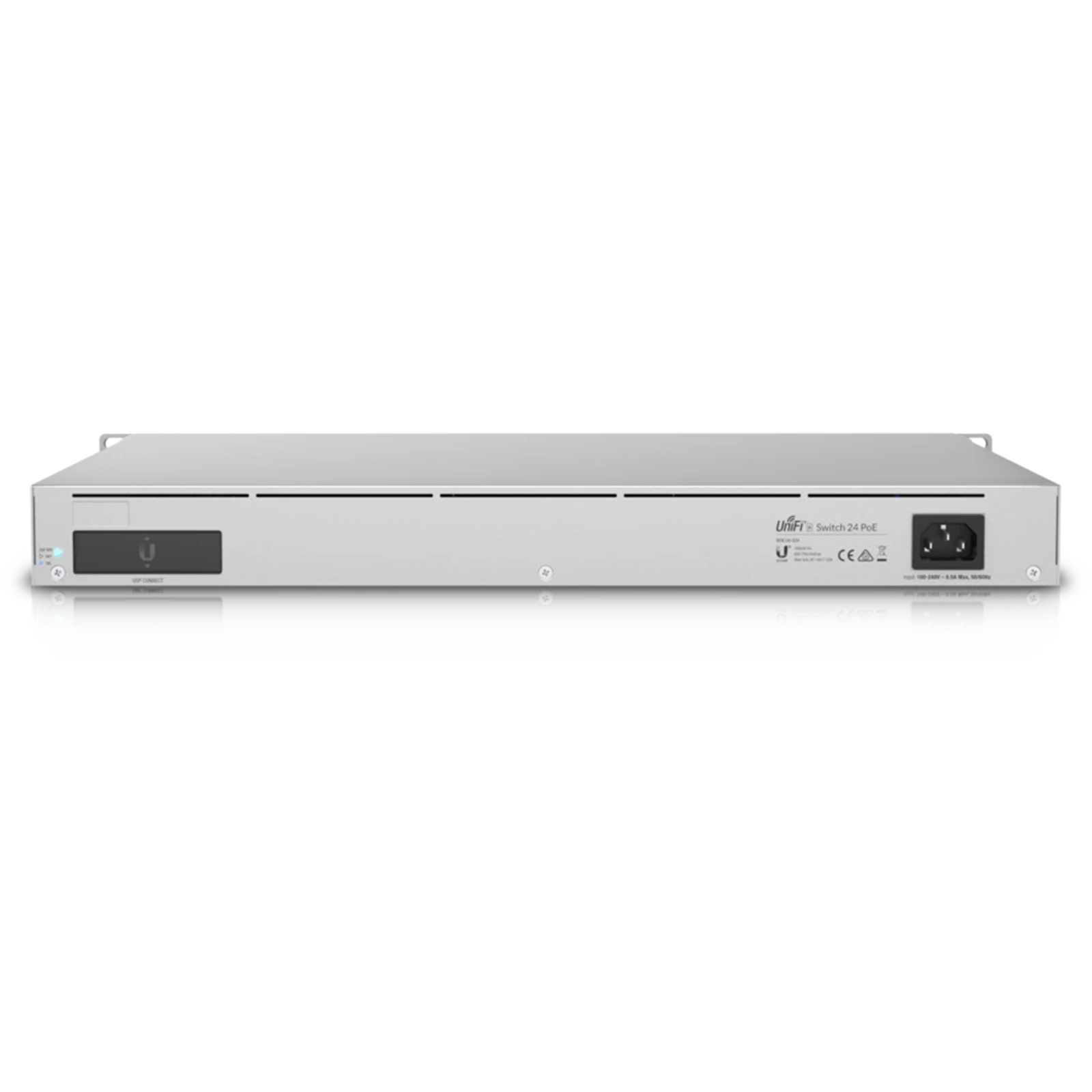

Ubiquiti UniFi USW-Enterprise-24-POE 26-Port 10G L3 Managed PoE Switch (400W) - SFP+ x2, 2.5GbE PoE+ x12, 1GbE PoE+ x12

Switch Enterprise 24 PoE
Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (12) GbE, 802.3at PoE+ RJ45 ports
- (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Managed with the UniFi Network application: Version 5.14.12 and later
View product datasheet HERE

Mechanical

Dimensions
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")

Weight
Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)

Enclosure Materials
SGCC Steel

Mount Material
SGCC Steel

Hardware

Total Non-Blocking Throughput
62 Gbps

Switching Capacity
124 Gbps

Forwarding Rate
92.25 Mpps

Max. Power Consumption
550W

Power Method
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A

Power Supply
AC/DC, Internal, 550W

Management Interface
Ethernet In-Band

Networking Interfaces
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet

SFP+ Interfaces
(2) 1/10G SFP+

PoE Interfaces
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE
34.2W

Voltage Range 802.3af Mode
44 to 57V

Voltage Range 802.3at Mode
50 to 57V

Services
SMB Layer 3 PoE Gigabit Ethernet Switch

ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV

Operating Temperature
-5 to 40° C (23 to 104° F)

Operating Humidity
10 - 95% Noncondensing

Certifications
CE, FCC, IC

LEDs

System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
White: Link or Activity

SFP+
White: Link or Activity
- MPN: USW-Enterprise-24-POE

GTIN: 810010073044

Reference ID: 7608380
