Ubiquiti UniFi U7-IW (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access Point with 2.5GbE x3 (PoE+ 22W) [U7-IW]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Limited Stock
$332.57

Collect 332 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Ubiquiti UniFi U7-IW (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access Point with 2.5GbE x3 (PoE+ 22W)

U7 In-Wall
Wall-mounted WiFi? 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Note. PoE+ input required for single-port PoE output.

Overview
Dimensions

137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")

WiFi Standard

WiFi 7

Spatial Streams

4

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

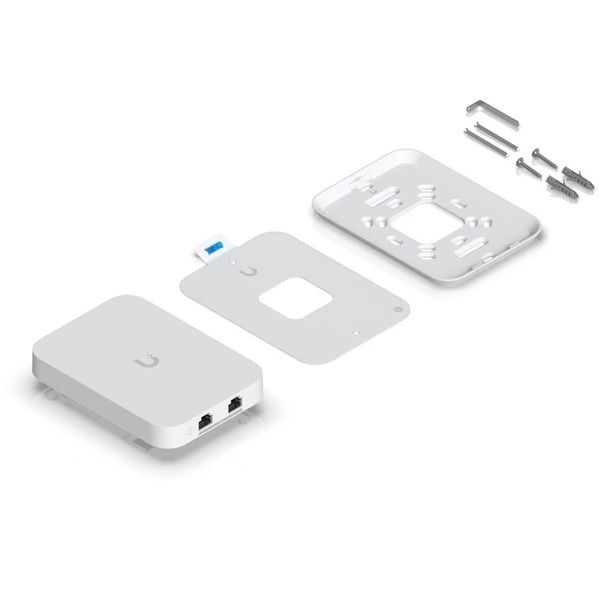

Mounting

Wall
(Metal Wall Mount Included)

Power Method

PoE
PoE+ (Required for PoE output)

Performance

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 8 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W (Excluding PoE output)

Supported Voltage Range

42.5—57V DC

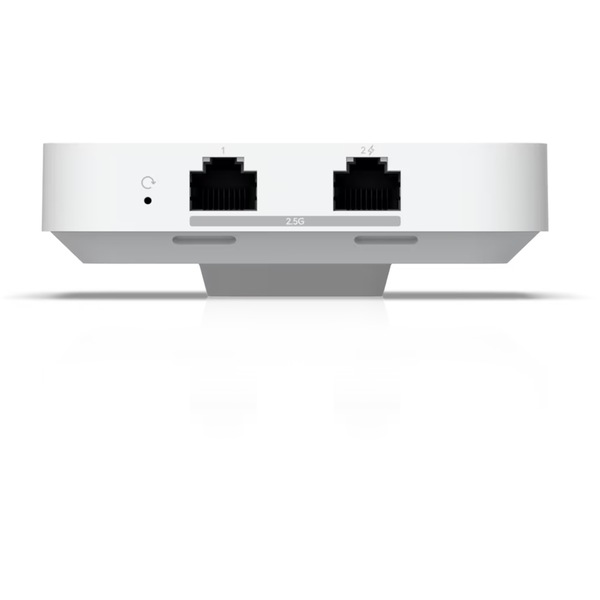

Networking Interface

(3) 2.5 GbE RJ45 ports

Weight

400 g (14.1 oz)

Management

Ethernet

Built-In Switch

(1) PoE+ input and
(1) PoE output

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Aluminum alloy

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 9.0.114 and later

UniFi OS
iOSâ„¢ version 10.20.2 and later
Androidâ„¢ version 10.21.7 and later
- MPN: U7-IW

GTIN: 810084698754
