Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W) [U7-Pro-Max]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Limited Stock
$556.65

Collect 556 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

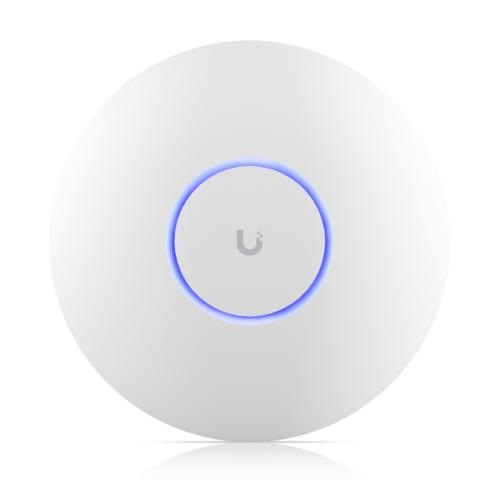

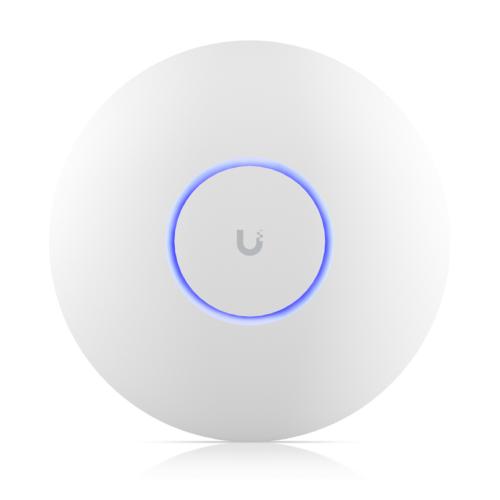

Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)

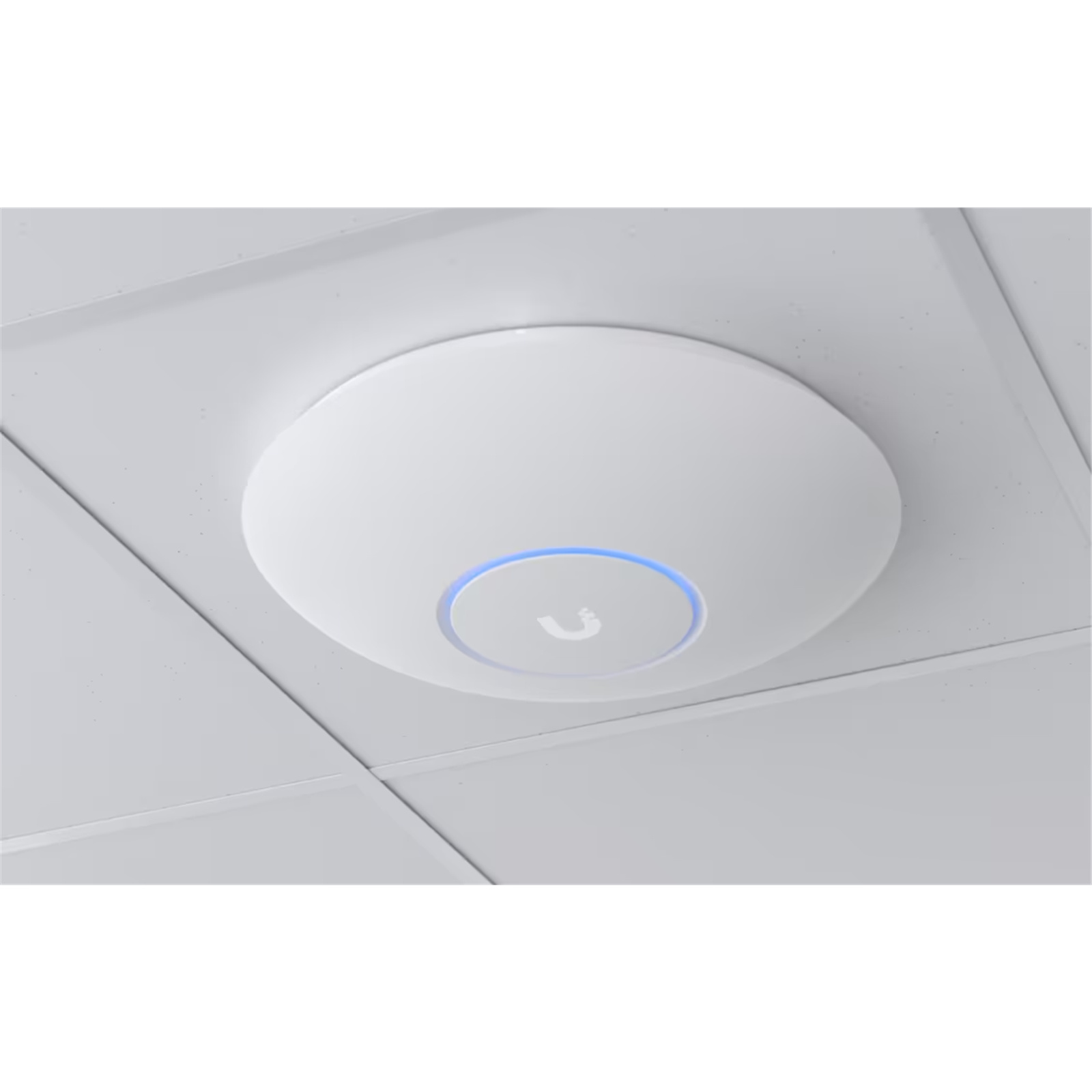

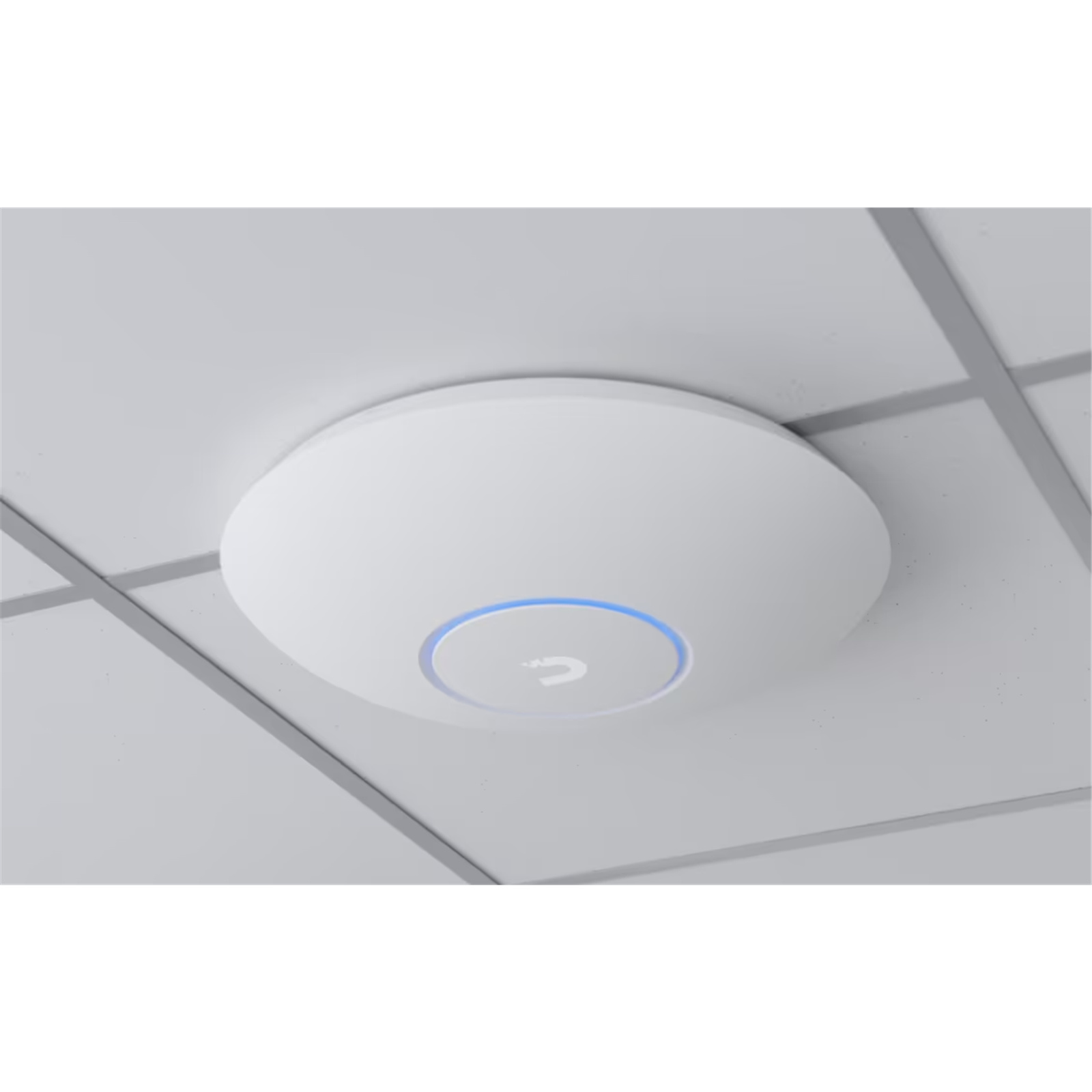

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
*Requires UniFi Network 8.2.93 and later.

Mechanical
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure material
Polycarbonate, aluminum
Mount material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
Ethernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44—57V DC
Max. power consumption
25W
Max. TX power
2.4 GHz: 23 dBm
5 GHz: 29 dBm
6 GHz: 23 dBm

MIMO

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
6 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. data rate

2.4 GHz: 688 Mbps (BW40)
5 GHz: 8.6 Gbps (BW240)
6 GHz: 5.7 Gbps (BW320)

Antenna gain

2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.9 dBi

LEDs

White/blue

Button

Factory reset

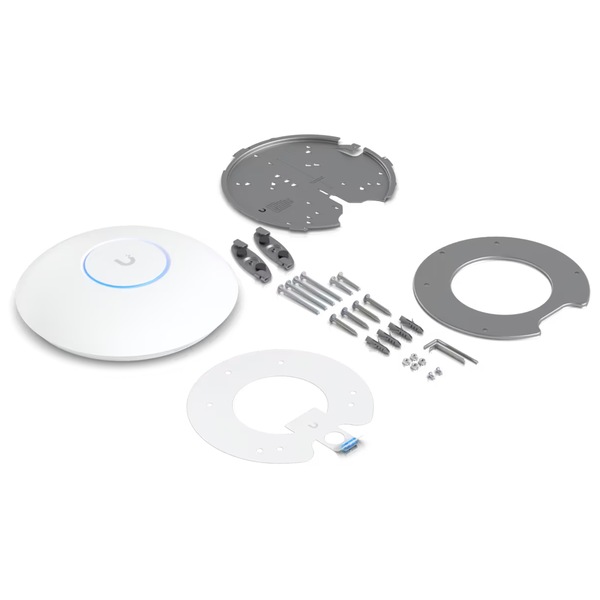

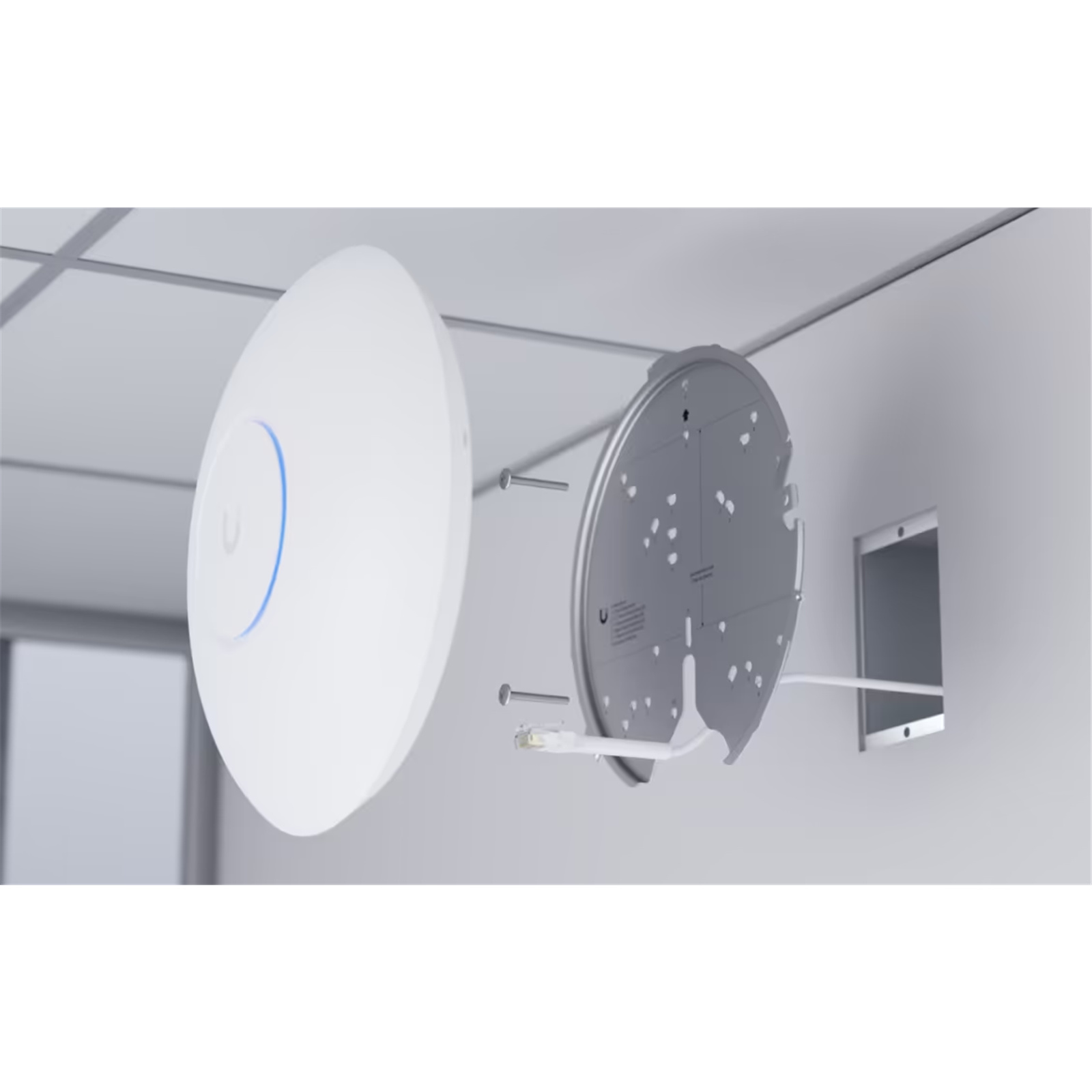

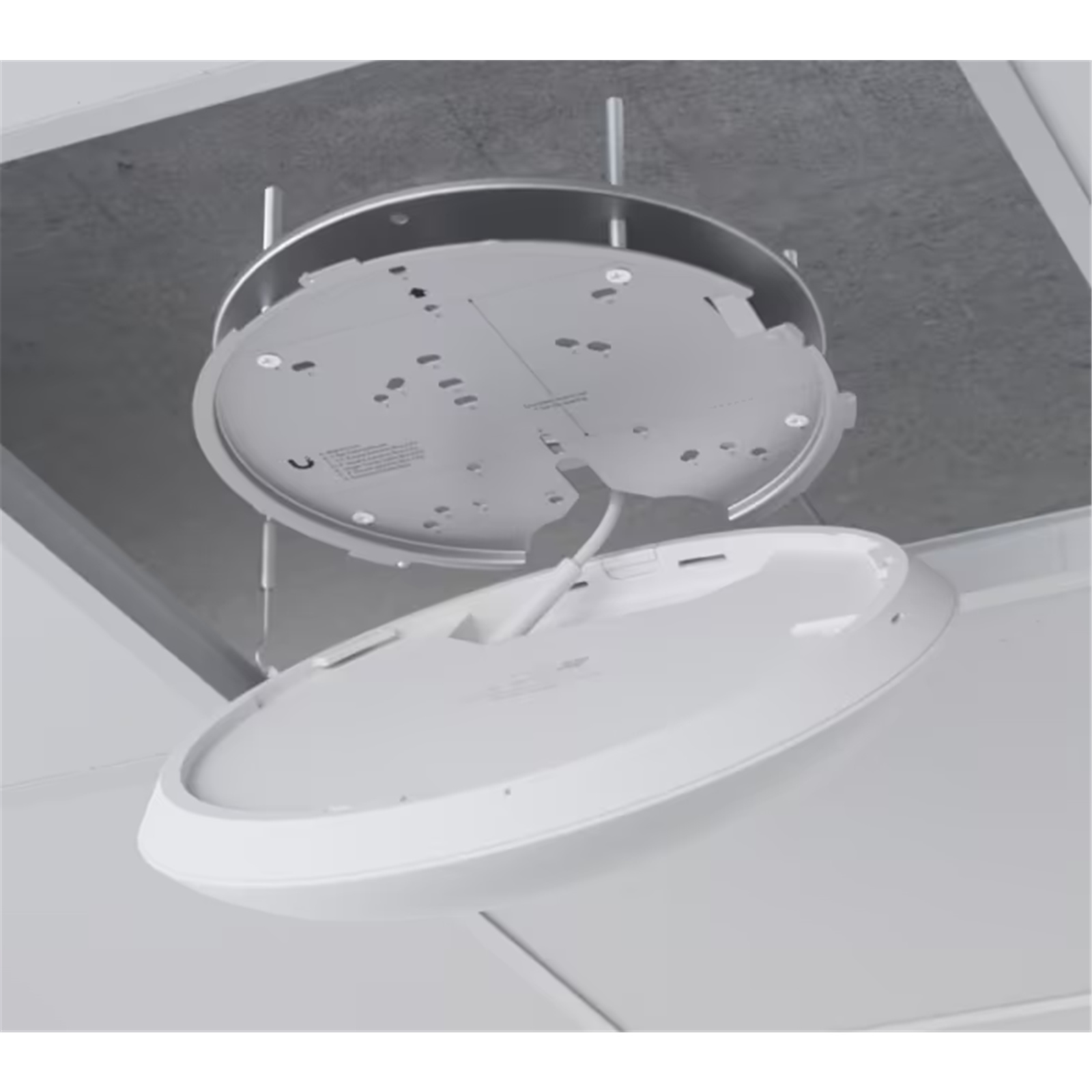

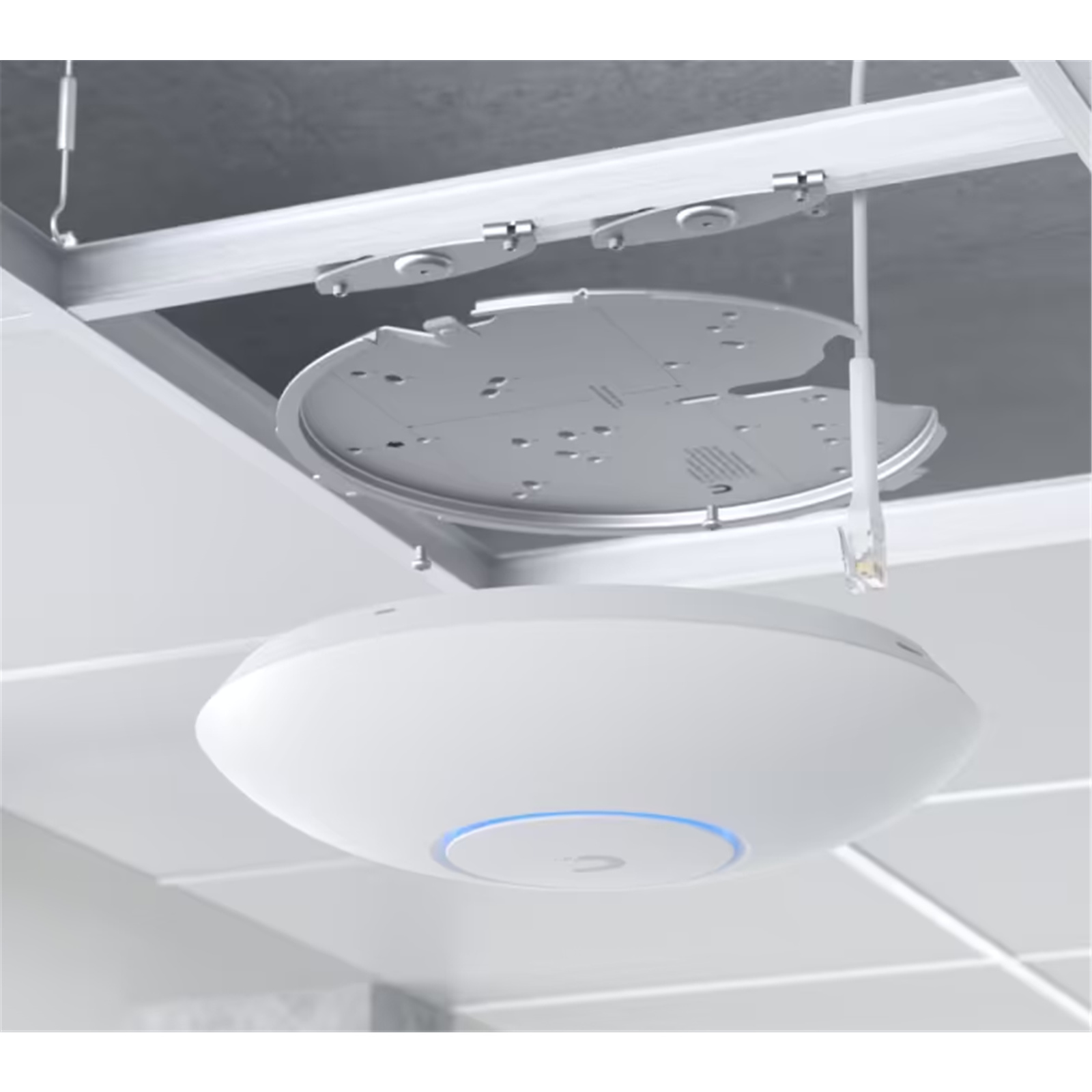

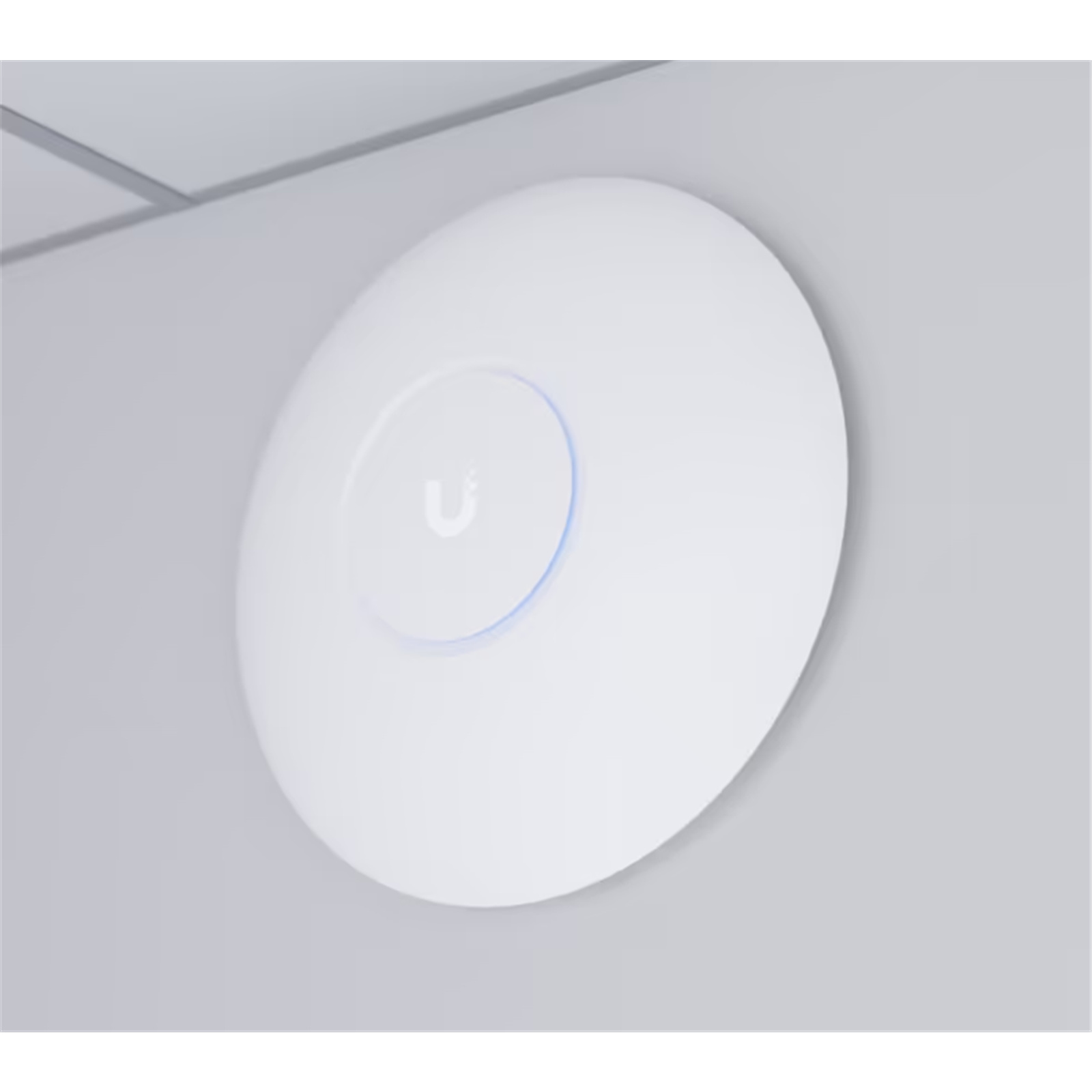

Mounting

Wall, ceiling (Included)

Ambient operating temperature

-30 to 50° C (-22 to 122° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC
Software

WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

500+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7)

5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.2.93 and later
- MPN: U7-Pro-Max

GTIN: 810084695555
